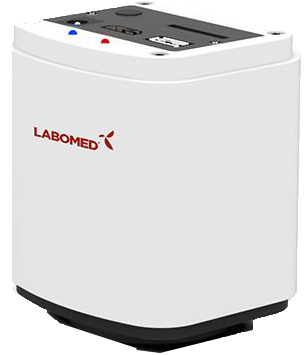

Labomed Vega Camera

The super resolution Vega camera is a 6 MP high-definition CMOS solution that boasts one of the fastest frame rates in its class, superb contrast, and unparalleled accuracy in color reproduction. This digital solution offers HD video streaming, digital, and an SD card interface in one highly affordable package.  Additionally, measurement, calibration, and parameter settings may be controlled through HDMI with the help of a USB mouse provided with the system. Total vertical integration of our camera means better image quality, easy to navigate software, and better end-to-end software and driver support.

Coin scratched

Streamline Routine Imaging and Documentation Tasks

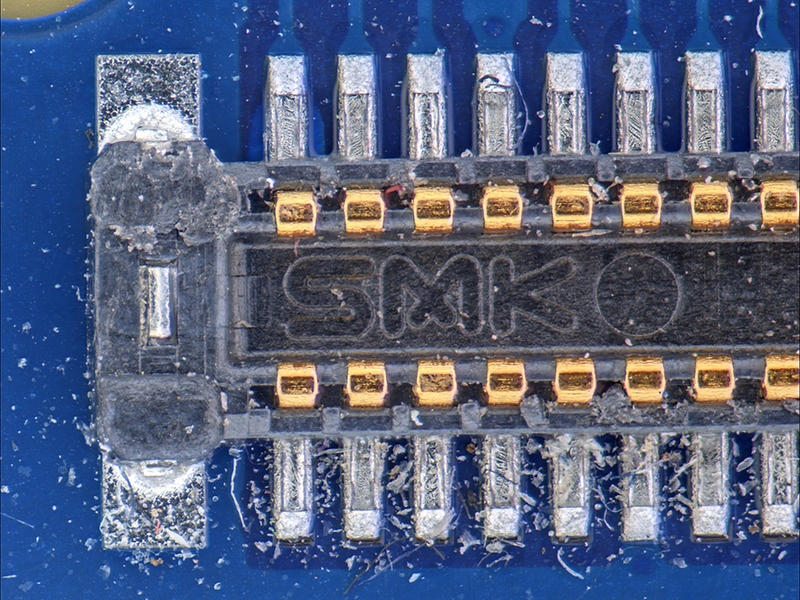

deep_focus_hdr

PixelPro Image Capture Software makes still and video capturing simple. A modern and easy to navigate user interface allows both teachers and students to quickly identify critical control functions, and to archive and annotate images with complete ease.

Package Contents

– Vega Camera

– PixelPro Image Capture Software

– USB 3.0 Cable (6ft)

Warranty Information

– 2 Year Camera

Speak with one of our specialists today to see if the Atlas is right for you!

(281) 579-0342

Labomed Atlas
Sensor 1/2.8” 6.0 MP Color CMOS
Active area 5.70mm x 4.28mm
Sensor resolution Dynamic 1920×1080 pixels
Static 3264×1836 pixels
Pixel Size 2.7μm x 2.7μm
A/D conversion 24 Bit RGB
Pixel clock 48 MHz
Dynamic range 65 dB
Max. Exposure 1ms-10s auto/manual, white balancing
Frame rate 30 fps (@1080p)
Image processing High speed dual FPGA, progressive scan, advanced noise reduction
Interface USB 3.0, HDMI, SD card, mouse control
Optical connection C- Mount
Voltage supply AC power (universal)
Power indication Green LED indicating power on and ready for capture
Measurement Geometric and axial, calibration
Ambient conditions Operating Temperature: 0-60˚C
Humidity: 45-85%
Software Requirments Microsoft Windows (XP and later versions) / Linux / Mac
