Linkam HFS600E-PB4 Stage

Linkam HFS600E-PB4

Call Meyer Instruments, Inc., for pricing and to learn more about Linkam temperature controlled stages

Call 281 579-0342 Today!

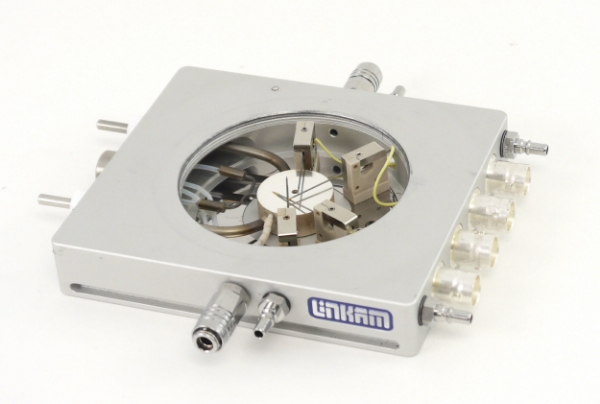

Linkam HFS600E-PB4 Stage

Linkam’s HFS probe systems are based upon the temperature control technology used in the THMS600 heating and freezing stages. The dynamic heating and cooling performance ensures that a wide range of electrical component temperature control applications can be undertaken.

Up to 4 positional tungsten probes, (other types can be used), can be attached to the electrical connectors within the sample chamber to enable the user to make electrical measurements on the sample while accurately controlling the temperature inside a gas tight environment. The sample is placed on the heating element and the probes are moved manually to make contact at the appropriate points. The probes have excellent positional resolution enabling precise contact points to be made easily. HFS probe systems can also be used vertically.

To cool samples from ambient down to < -195°C, add the LNP96 liquid nitrogen cooling pump.

Linkam HFS600E-PB4 Stage Specifications

  • Temperature range < -195°C to 600°C (cooling option required)
  • Up to 150°C/min heating
  • Temperature stability <0.1°C
  • Sample area 22mm diameter
  • Quick-release gas valves for atmospheric control
  • 100ohm platinum resistor sensor
  • Light aperture 2mm Ø
  • Silver heating block for high thermal conductivity
  • 22mm x 0.5mm quartz window
  • Objective lens working distance 4.9mm
  • Stage body can be water cooled for high temperature work ( >300°C)
  • Suitable for confocal, Laser Raman, X-ray and other microscope techniques
Meyer Instruments, Inc., is an authorized Dealer – Reseller for Linkam Scientific
