The new Excelis HD color microscopy cameras set a new standard for excellence in high definition imaging for scientific and industrial applications. 5 models to choose from. Excelis HD and 4K cameras are full featured offering 60fps (AU-600-HD/S) or 30fps (AU-8004K) in video preview with unrivaled color fidelity and on-board image capturing capability. 5K, 6K and 2oK models are also available. Several with attachable, optional 11.6″ display monitors.

The Excelis HDS Camera & Monitor Systems allow users to view and capture images and video directly to the supplied SD card without the need for a computer or separate monitor! The 11.6″ HD display offers beautiful, crystal-clear image quality, and vibrant, true-to-life color with exceptional viewing from all angles. It can be used as a stand-alone system, or connected to a PC via USB cable where images can be displayed simultaneously on the Excelis HDS monitor and the PC. For even more flexibility and ideal for teaching environments, the HDMI architecture allows the Excelis HDS to be connected to an HDMI-enabled projector as well.

CURRENTLY OUR MOST POPULAR CAMERAS OF ANY BRAND!  CALL US AT 281-579-0342 FOR A QUOTE.

Built-in mouse control software for HDMI viewing and recording without a computer. Simultaneous live image output to an HD monitor and to a computer via USB2.0.

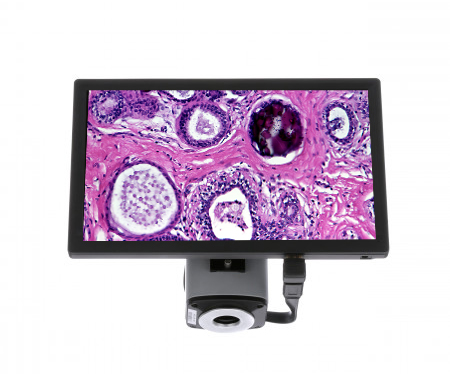

The Excelis HDS has the camera mounted directly to its own monitor, making it a stand-alone system and a space saving option for the lab or classroom.

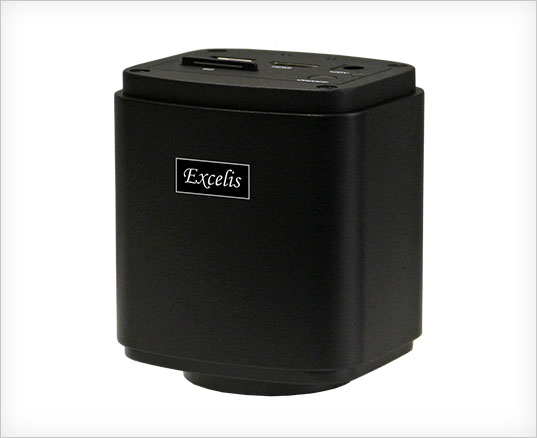

Excelis AU 600 High Definition Video Camera

The Excelis 600 HD cameras are full featured HD cameras offering 60fps in video preview with unrivaled color fidelity and on-board image capturing capability.

Connect Your Way!

Excelis’ unique system architecture enables it to offer simultaneous live image output to an HD monitor and to a com-puter via USB connection. Images can be saved directly to a PC or Mac, or onto the SD card. Each camera is supplied with the PC/Mac-compatible on-board image capture software, as well as our full-featured CaptaVision+image analysis software for PC and Mac OS.

Superior Performance & Color

Built upon decades of microscopy and digital imaging experience, ExcelisHD Series incorporates dual FPGA processors and unique algorithms that produce perfect color reproduction. The innovative technology of the ExcelisHD cameras offers full 1080p video preview for HD output without any lag time or compression.

Built-in Mouse Control Software For HDMI Viewing & Recording Without a Computer!

Built upon decades of microscopy and digital imaging experience, ExcelisHD Series incorporates dual FPGA processors and unique algorithms that produce perfect color reproduction. The innovative technology of the ExcelisHD cameras offers full 1080p video preview for HD output without any lag time or compression.Built-in Mouse Control SoftwareFor HDMI Viewing & Recording Without a Computer!The advanced design of the Excelis HD cameras feature software inside the cameras and an external HDMI port allowing users to connect directly to an HD monitor for live/real time viewing, capturing and saving of images to an SD card without being connected to a computer. This on-board software also enables the user to control the camera with a click of the mouse rather than searching for buttons on the camera, making an Excelis HD Series camera the ideal choice for teaching, group presentations, or when a computer set-up is simply not an option!

HDMI ~60fps/30fps*USB2.0 ~30fps*

With 60fps HDMI and 30fps USB 2.0 data transfer at 1920×1080 resolution*, the Excelis HD camera is one of the fastest HD 1080p cameras on the market today!

Fluorescence Imaging*

The ultra-high signal-to-noise ratio sensor allows users to set exposure time from 1ms to up to 10 seconds and adjust 20 scales of Gain value. And the incredibly efficient 3D noise reduction performance delivers detailed low light images making the Excelis HD camera a great choice for fluorescence applications.

*HDMI 60fps live viewing / 30fps HDMI image transfer.

Excelis HD Camera

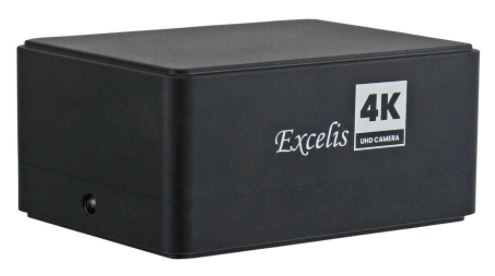

New Excelis 4K High Definition Video Camera

Excelis 4K cameras offer full featured super high definition video preview with unrivaled color fidelity and true live 4K display. The Excelis 4K features a SONY IMX183C back-illuminated camera sensor for outstanding light and sensitivity.

Connect Your Way!

Excelis’ unique system architecture enables it to offer simultaneous live image output to an HD monitor and to a computer via USB connection. Images can be saved directly to a PC or Mac. Each camera is supplied with our full-featured CaptaVision image analysis software. Even DHCP sharing is possible over the server connectivity.

Superior Performance & Color

Built upon decades of microscopy and digital imaging experience, Excelis 4K cameras incorporates dual FPGA processors and unique algorithms that produce perfect color reproduction. The innovative technology of the Excelis 4K cameras offers full 4K video preview without any lag time or compression.

HDMI ~30fps USB3.0

With 30fps HDMI and USB 3.0 data transfer at 3840×2160 resolution, the Excelis 4K camera is one of the fastest cameras on the market today!

Excelis 4K camera

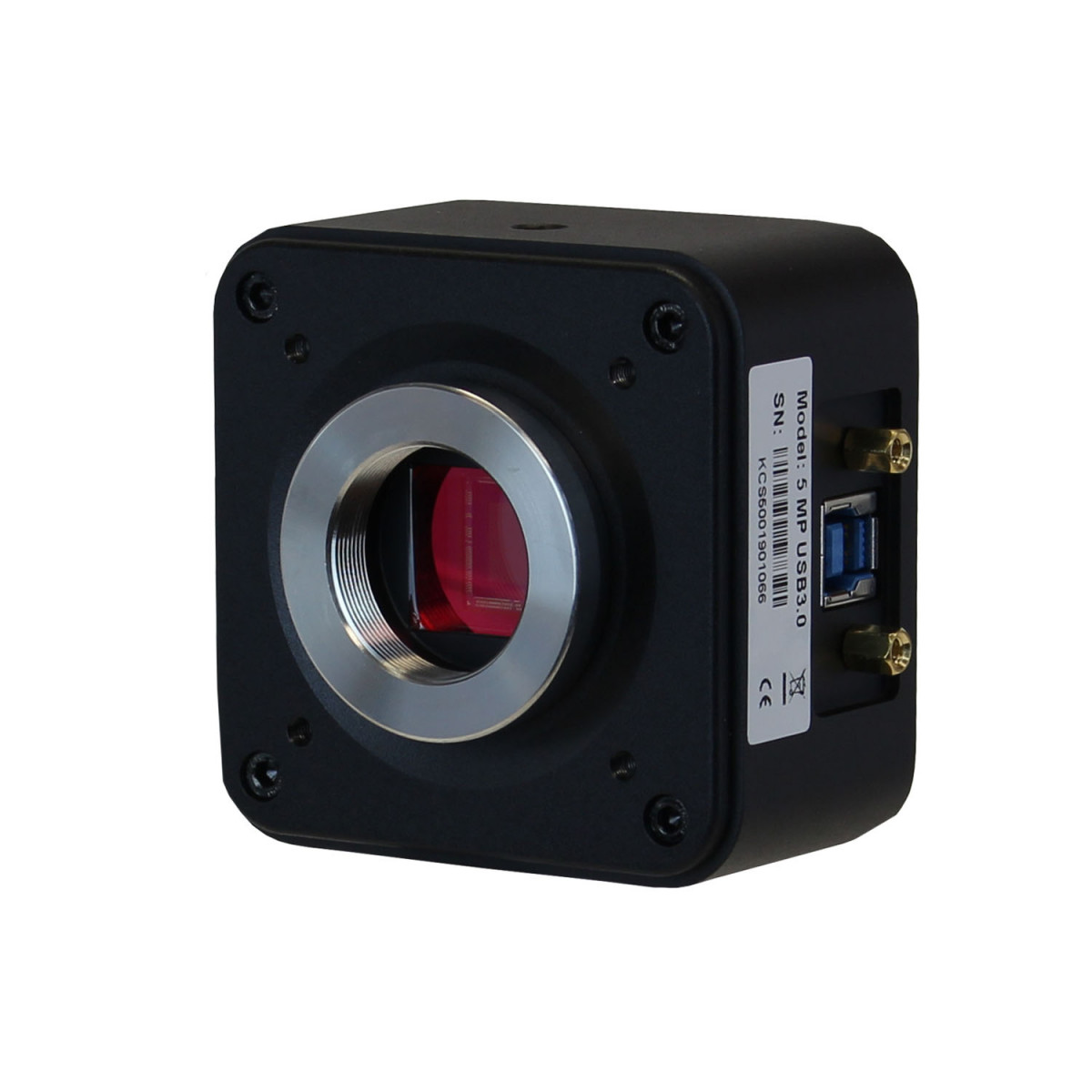

Excelis™ MPX-5C Pro

The new Excelis™ MPX-5C Pro color camera delivers the performance and features desired in everyday microscopy imaging applications.  With a Sony Pregius CMOS sensor at its core, the MPX-5C Pro delivers superb color rendition, extremely low noise and excellent low light level sensitivity.  The global shutter, high frame rate and USB 3.0 connectivity ensure stunning live views of the specimen.  The new CaptaVision+ software also brings a new dimension to imaging with real-time stitching, real-time intelligent flatfield correction, depth of field fusion, dynamic measurements, and much more!

  • Outstanding color and performance
  • Real-time stitching (via CaptaVision+)
  • Depth of field fusion (via CaptaVision+)
  • Intelligent flatfield correction (via Captavision+)
  • Sony Pregius IMX264LQR-C color CMOS sensor
  • View full 5MP live images at 35fps
  • Fluorescence imaging with high signal-to-noise, exposure times up to 15 seconds and adjustable Gain.
  • New CaptaVision+ Imaging Software (included) delivers full camera control, advanced image processing, customizable user interface, static and dynamic measurements with layers, and more (requires PC or Mac; not included).
  • Standard C-mount easily adapts to most microscopes; 0.65x camera adapter recommended.
  • 1-year warranty
  • In the box: Excelis MPX-5C Pro Camera, USB 3.0 Cable, CaptaVision+ PC Imaging Software
DLP-50x DIC
House Fly
Electronic Circuit
Rock Thin Section
Embryo Transfer
Onion Mitosis
Fluorescence cell division
Halogen Bulb
Excelis Stitching Software

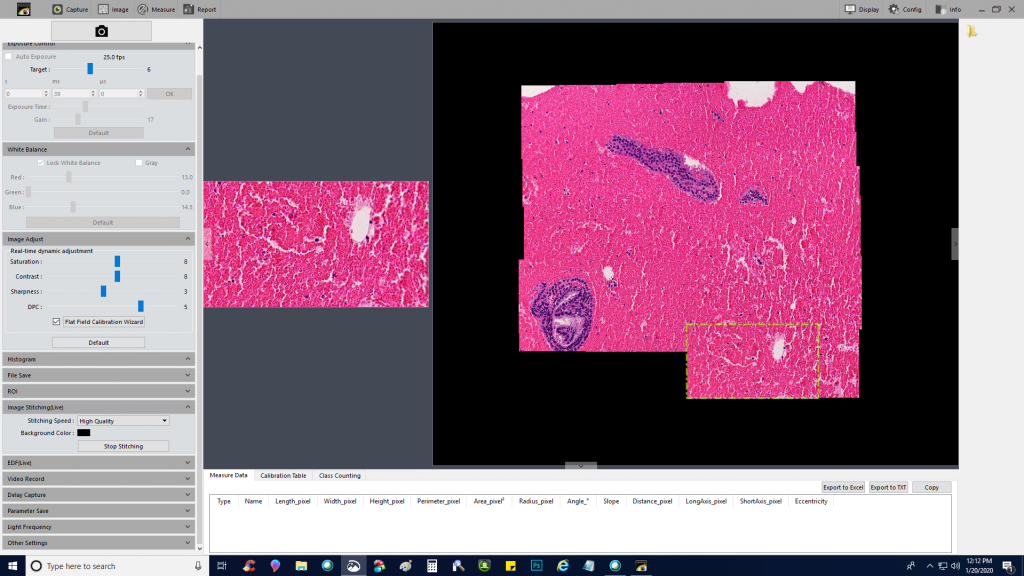

Image Stitching Overview
Excelis Stitching Software

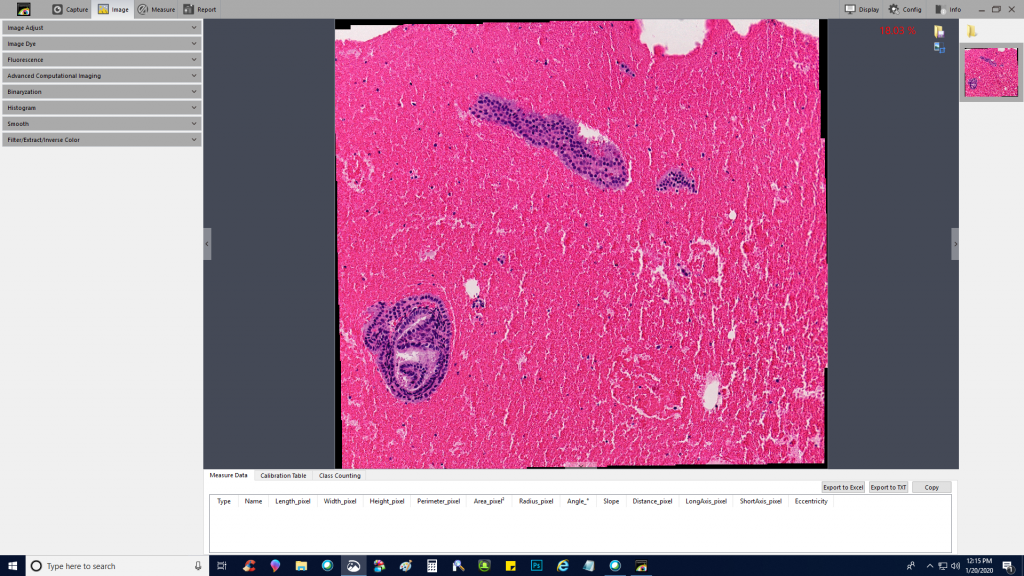

Image Stitching Complete
Excelis Stitching Software

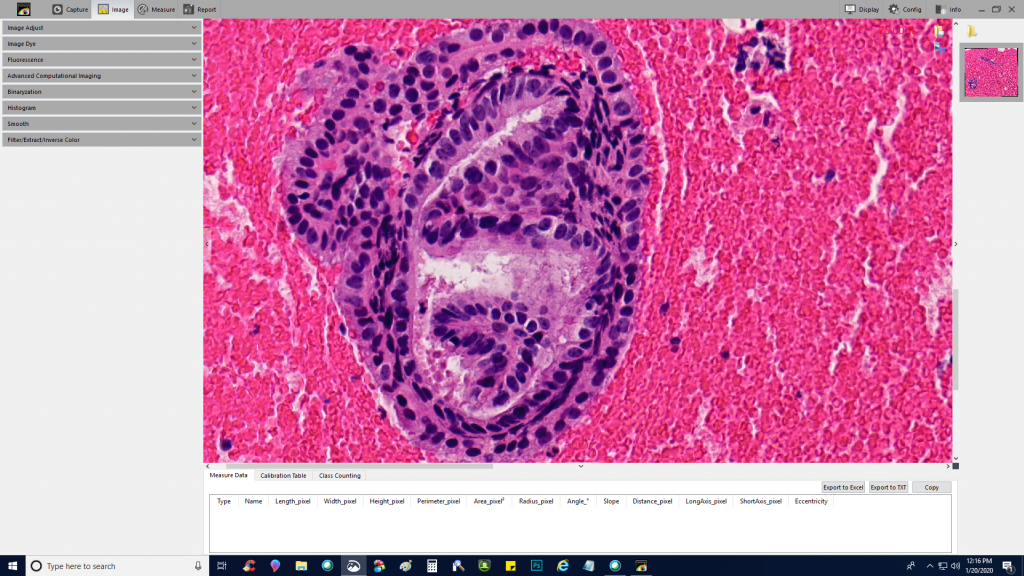

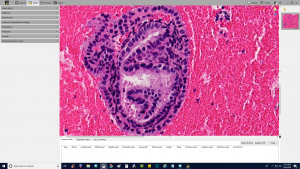

Image Stitching Zoom

More Cameras from Excelis
