Glissando POL™ polarizing slide scanner

Fast, affordable polarized or brightfield slide scanning from Objective Imaging!

The new Glissando POL polarizing slide scanner from Objective Imaging delivers fast, high quality brightfield and polarized slide image acquisition in an affordable package. The compact footprint and simple, intuitive user interface make the Glissando POL polarizing slide scanner the ideal platform for quick scanning of standard 1×2 inch, 1×3 inch or 2×3 inch microscope slides.

The Glissando POL polarizing slide scanner integrates the latest automation technologies and high quality components with our proven Turboscan scanning engine to provide an effective, reliable—and affordable—tool for the rapid acquisition from standard glass microscope slides. Perfect for geologists or scientists viewing any type of birefringent samples.

The easy-to-use Glissando POL software’s intuitive design and automated sample detection, focus setup, and barcode reading ensure excellent results, right out of the box.

Call one of our specialists today to learn how the Glissando POL polarizing slide scanner is right for your geological or birefringent applications. (281) 579-0342

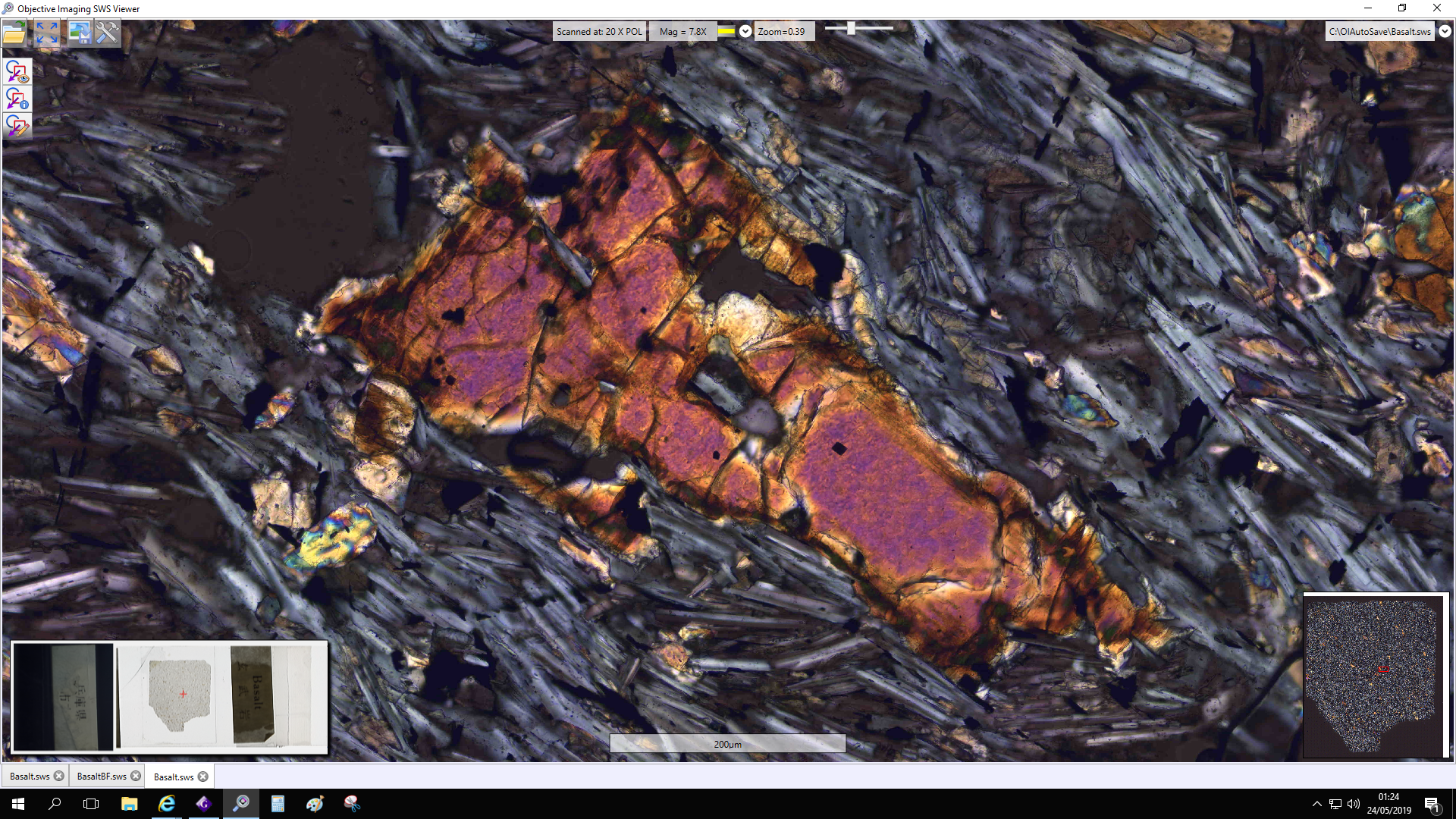

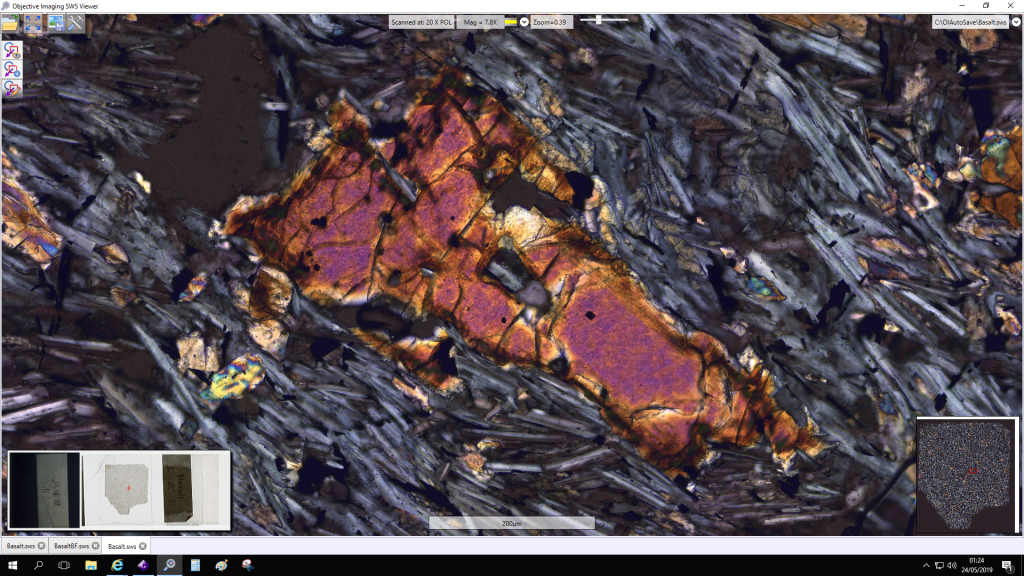

Best images of any polarizing slide scanner!

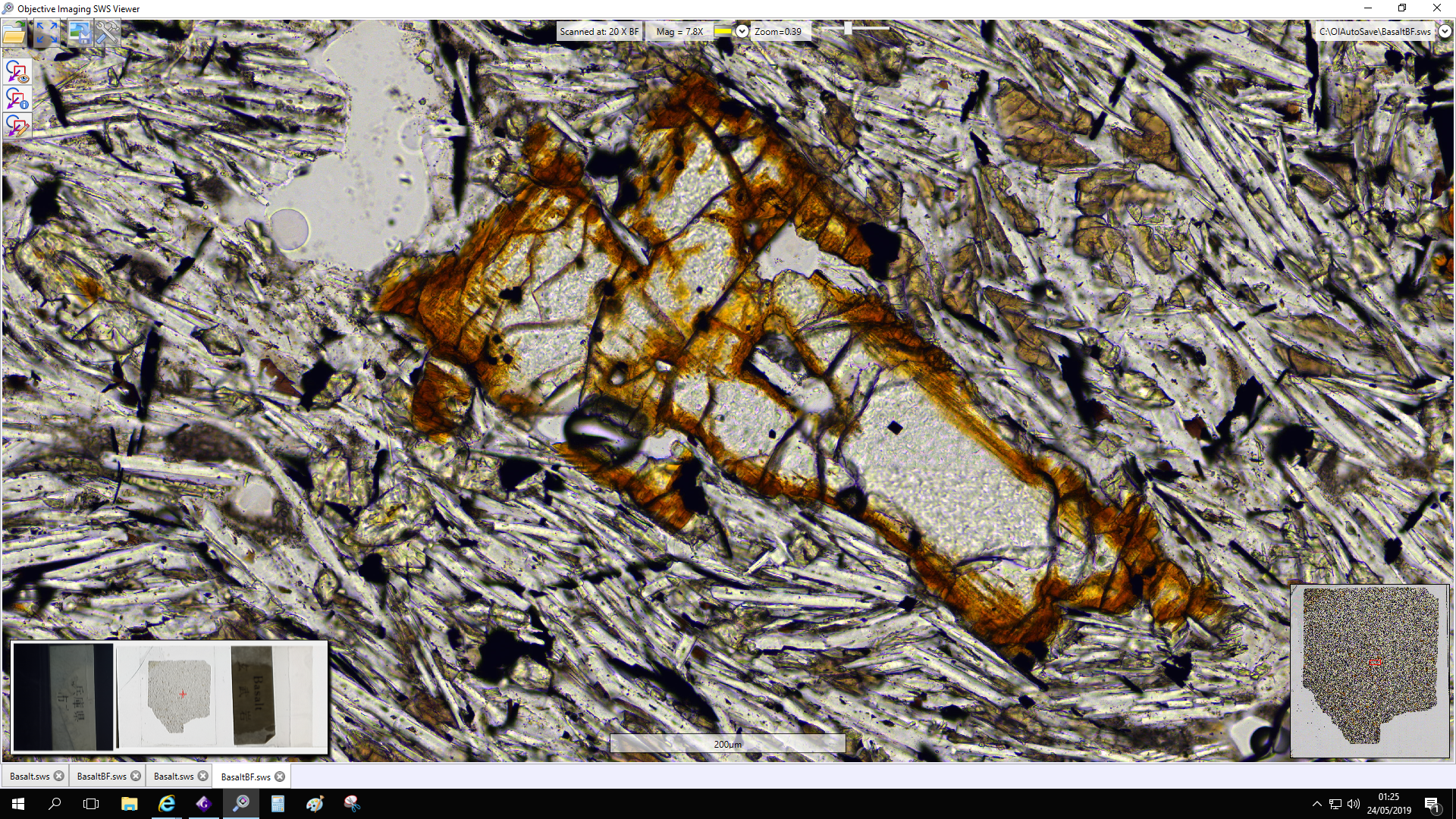

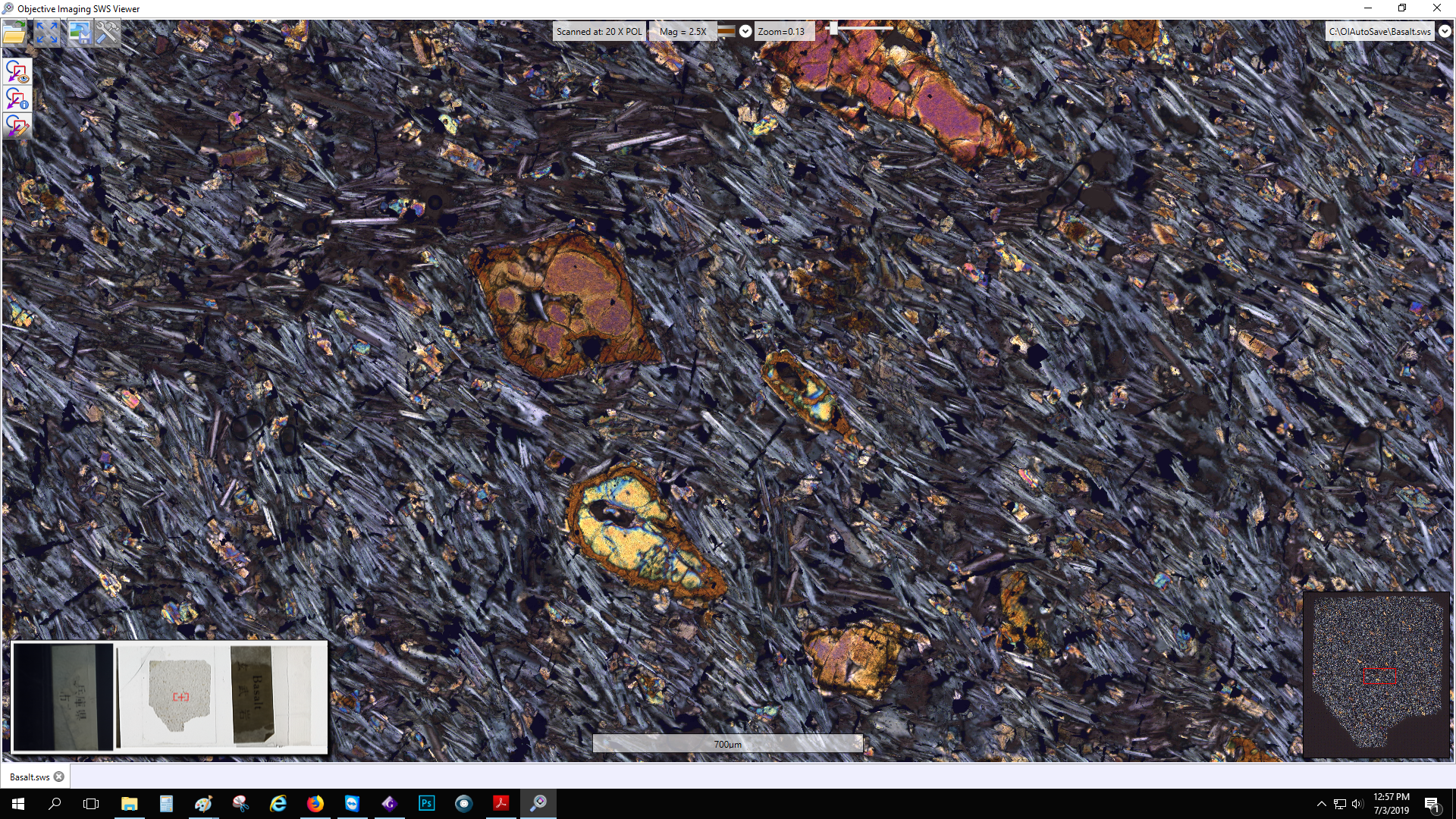

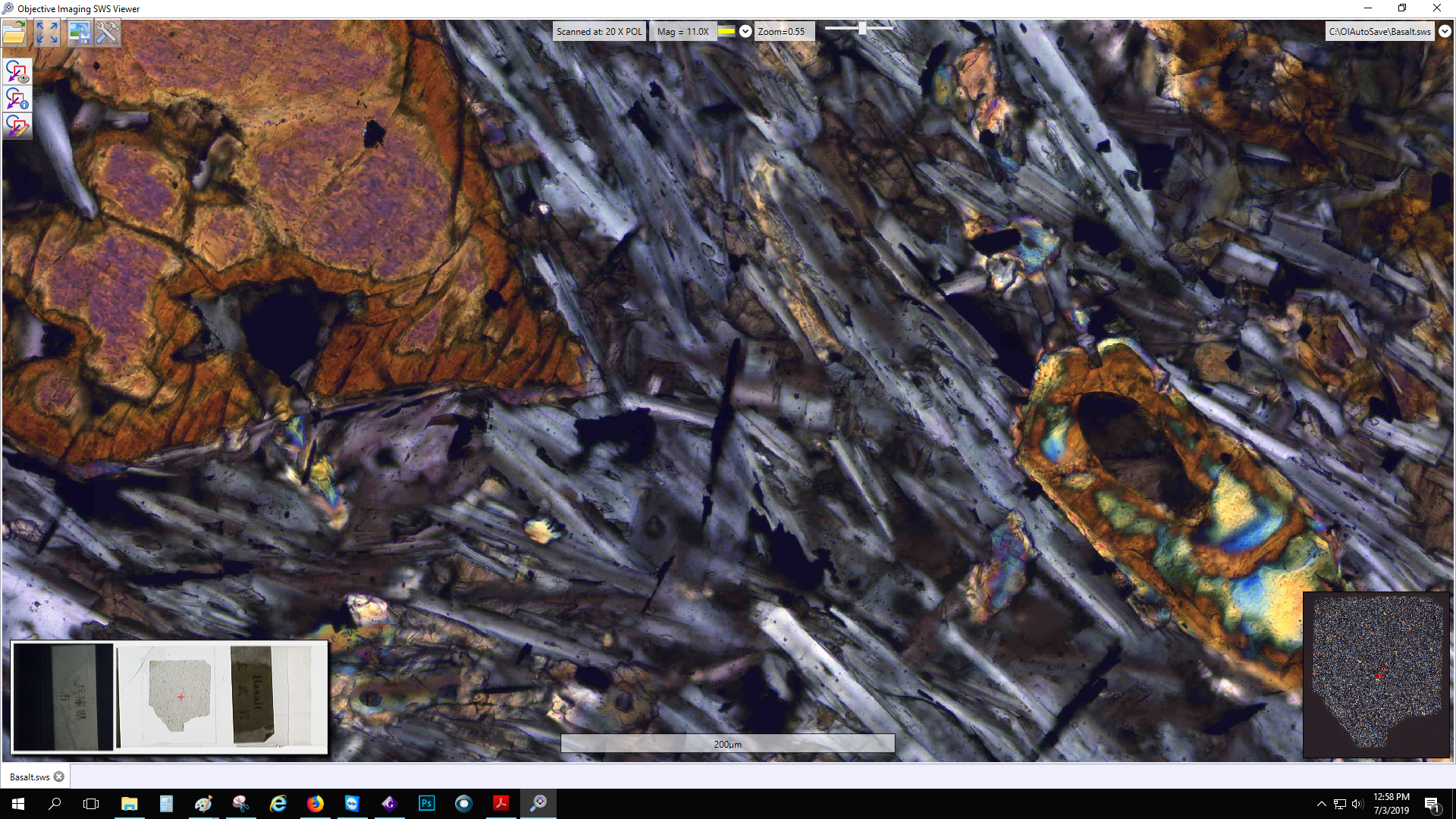

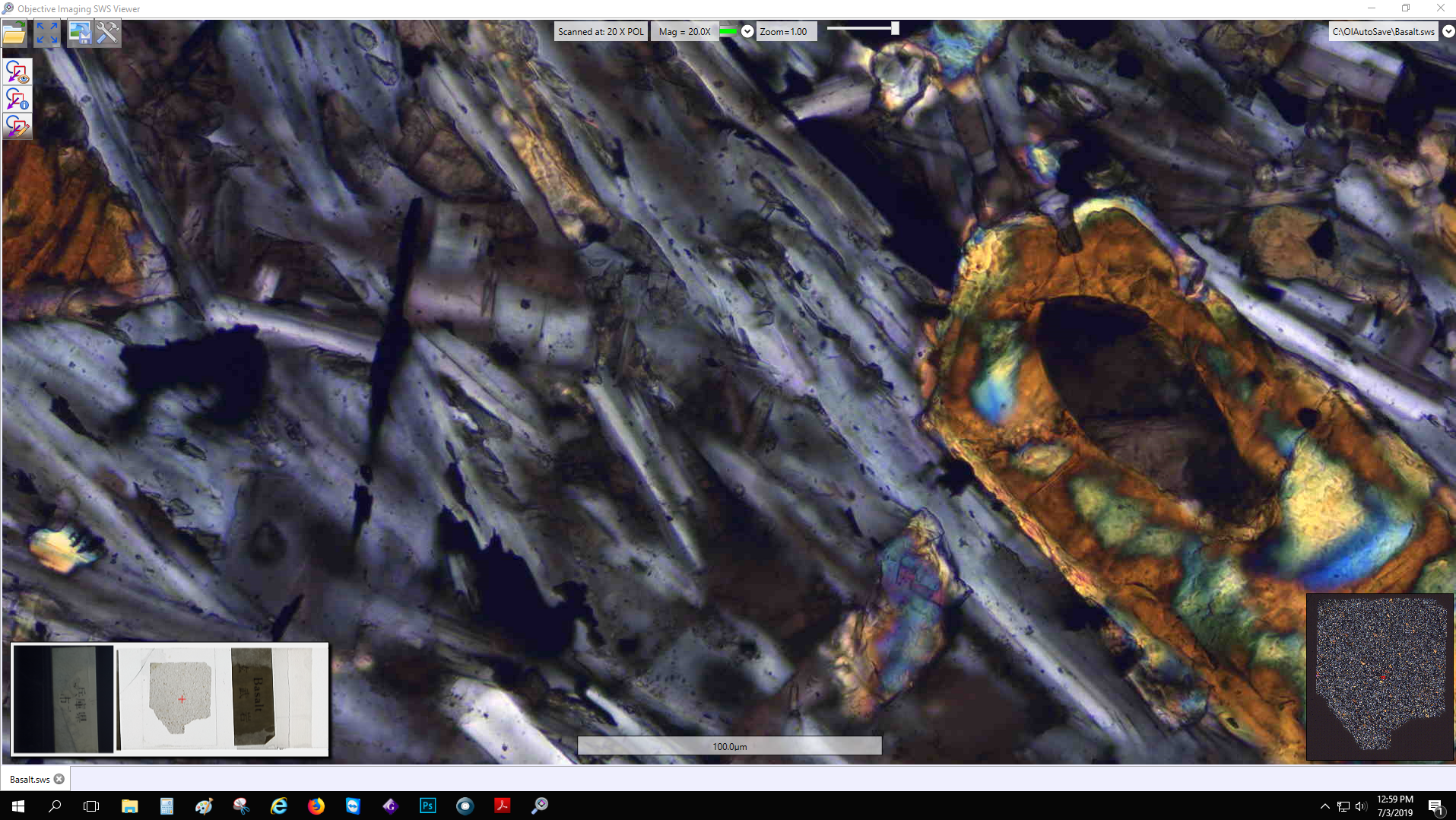

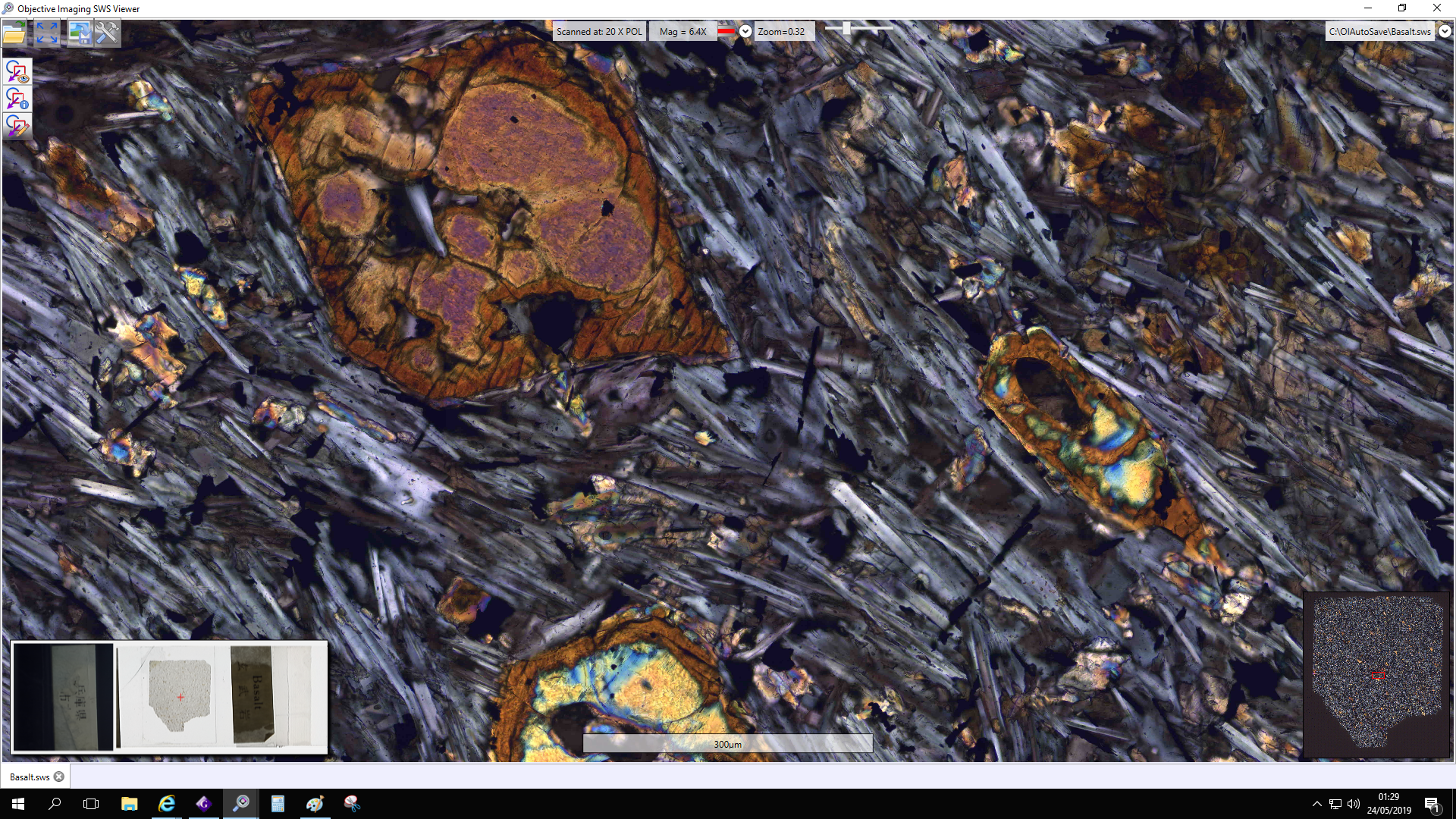

Glissando Pol Polarizing Slide Image

Huge dynamic range gives stunning incomparable images!

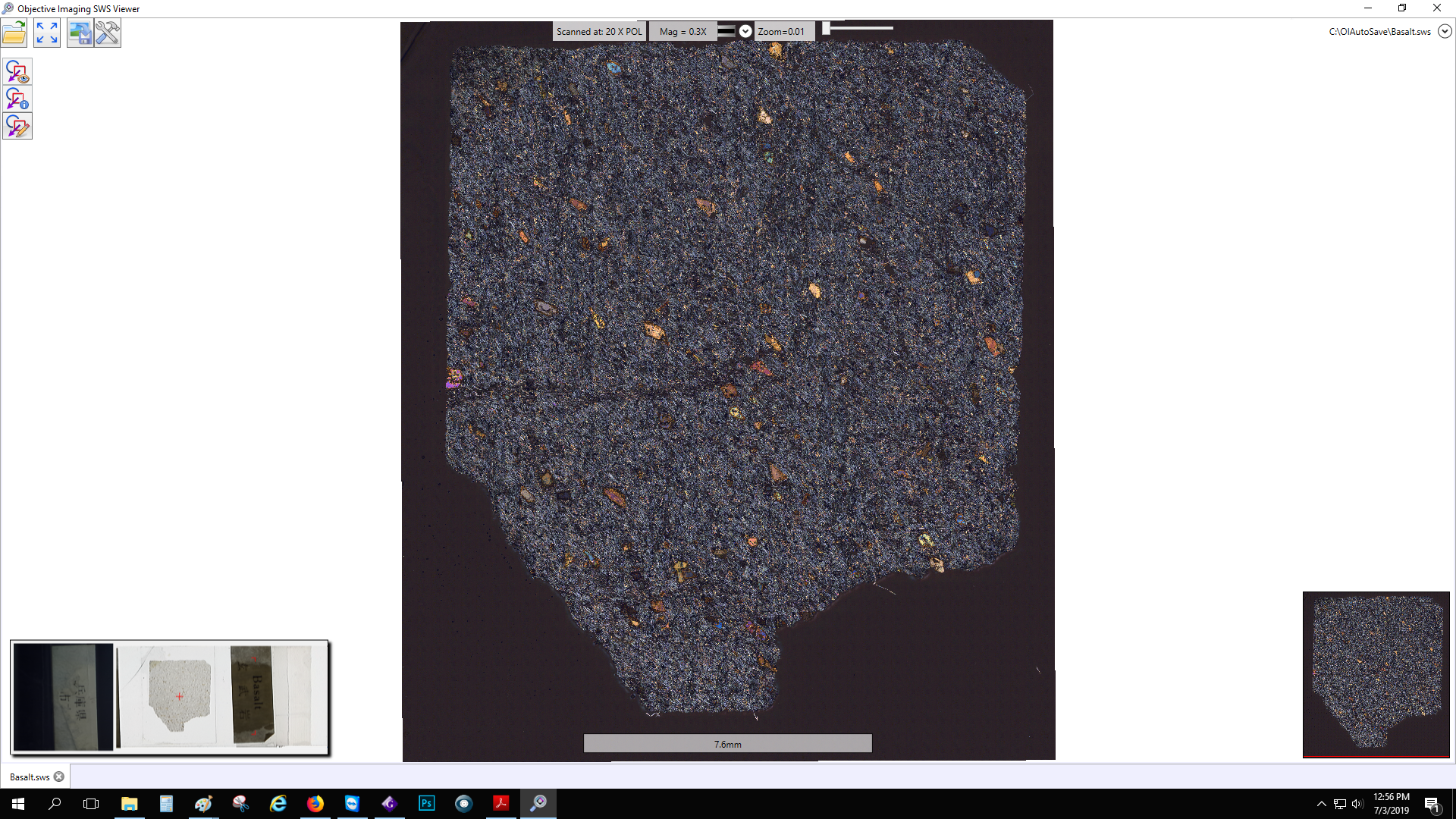

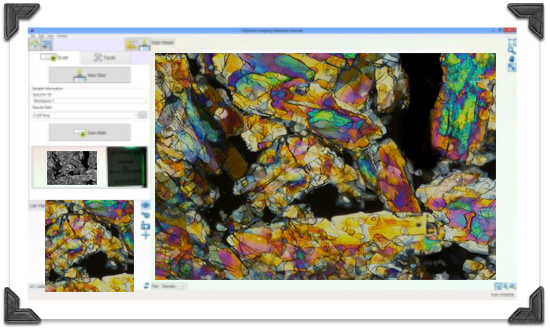

Glissando POL overview
Specifications

Slide Capacity – 25 x 50 mm or 25 x 75 mm or 50 x 75 mm glass slides

Scanning Engine – TurboscanTM fast tiling technology with predictive focus

Sample Detection – Automatic region definition and focus setup

Scanning Objective Lens – 20x/0.75 Plan Apo (optional 10x/40x available)

Camera Sensor Size – 2048 X 2048 pixels

Sensor Image Resolution – 0.25 μm (with 20X objective)

Barcode Reader – Image-based 1D and 2D (Datamatrix, QR Code)

Control Computer – Integral Windows 10 mini-PC with Ethernet connection

On-board Storage – 500 GB solid state drive

Physical Dimensions – 320 mm (W) x 297 mm (H) x 447 mm (D)

Electrical – Universal AC input, 50/60 Hz

Glissando POL polarizing slide scanner
  • Excellent price/performance
  • Compact, convenient size
  • Scan geological or histology glass slides
  • Brightfield and polarized light scanning
  • Manual polarizer 0 or 90 degrees
  • Save images in multiple formats
  • 1D and 2D barcode reader
  • Automatic sample detection and focus setup
  • Proven Turboscan™ high performance tile scanning engine
  • Integrated Windows 10 computer with Ethernet connection
  • Efficient, intuitive software interface
