Ash OMNI 3 Core Macroscope

Ash OMNI 3 Core Macroscope

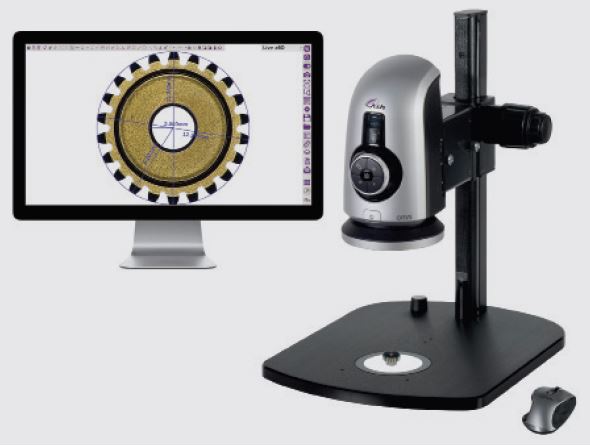

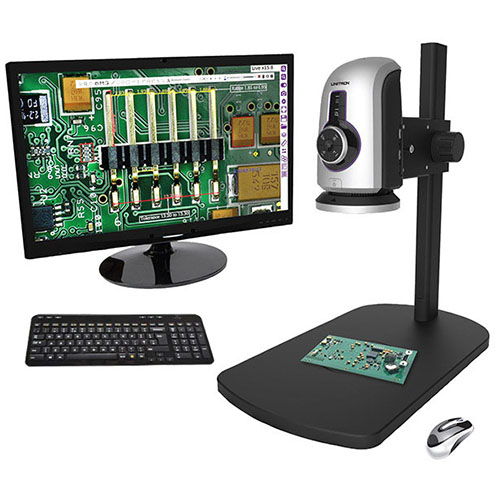

Th Ash OMNI 3 Core Digital Inspection System is an integrated, full HD (1080p) macroscope and measurement instrument that operates without a PC.

30 to 1 zoom range is the largest available of any instrument on the market!  2.5x-68x magnification with supplied +5 objective at 200 mm working distance.  Zoom to max 136x with +10 objective with 100 mm working distance! Zoom to max 331x with 25x objective at 35.1 mm working distance! Largest low power field of view with optional +3 lens!The OMNI Core platform is fully customizable and incorporates a highly configurable and upgradeable set of inspection and measurement applications.

Extended Depth of Field (EDF) focus stacking, 2D measurement, side by side and overlay image comparison, custom on-screen reticle, lens distortion correction, DXF file import, and automatic measurement with on-screen pass/fail results are all available.

The OMNI 3 Core’s macroscope has a integrated image processing and control engine that delivers superb full HD live video image quality at 60 frames per second enabling it to be used as a solution in a broad range of quality control, testing, rework, assembly, inspection and documentation tasks.

The Graphical User Interface  (GUI) is a custom designed mouse-controlled interface delivering intuitive and efficient operation and control of the full application suite.

Its unique ability to stay in calibration over the entire zoom range is one of many features that differentiates this system from other digital inspection systems.



Unlike a stereomicroscope the 3 OMNI Core lens system is on-axis for distortion free images.

Camera control functions (auto/manual focus, exposure, gain, brightness, white balance) ensure ultra-sharp, high contrast imaging.

The OMNI Core’s quick response, cable-free interchangeable illumination modules with intensity and quadrant control, ensure shadow-free illumination and glare reduction.

All Ash OMNI 3 Core products are available through Unitron Dealers exclusively.

Amazing 30 to 1 Zoom! ------------ 2.5x to 662x magnification range!

Ash OMNI Core Macroscope
Specifications:
Camera Resolution  1920 x 1080, ULTRA CRYSTAL CLEAR IMAGES  60 fps, live streaming
Zoom Range 30 to 1 ratio, +5 lens standard; basic magnification range 2.5x – 65x, with 200 mm working distance, maximum magnification 662x with 50x objective!
Basic Functions Auto / Manual focus, brightness adjustment, magnification adjustment, snapshot, overview, high contrast mode, height adjustable
Core Applications Lens distortion correction, user privileges, document to network, send e-mail
Optional Applications Automatic measurements, 2D measurements, annotation and graticule, import DXF files, image stacking, side by side image comparator, overlay image comparator
Optional Objectives  +2, +3, +4, +5, +10 (diopter) 0.5x, 10x, 25x and 50x (stereo)
Input/Output Modes HDMI Output; USB 2.0 x4, RJ45 Ethernet network connector, General purpose IO port x3; DC 24v power jack
Monitor Format HD ready or Full HD16:9 (recommended) – monitor not included
Power Supply 100 / 240v, 50/60Hz
Power Consumption 24 watts
Weight 3.85lbs. (1.75kg)
Dimensions (216mm (d) x 125mm (w) x 136mm (h)
Temperature Storage:  -10C to 60C; Operating:  5C to 40C

Optional Accessories

Optional Accessories include: LED ring polarizing light, Dome Illuminator, Fiber Optic Illuminators,

Auxiliary Objectives, Manual and motorized stages, Tilting stage, Oblique angle 360 degree viewer,

Swing arm stand, Articulated boom stand, Video Capture device, Multiple software modules.

Calibration Tracking

Comparator Overlay

Comparator Side By Side

DXF Import

Image Stacking (EDF)

2D Measurement, Annotation & Graticules
