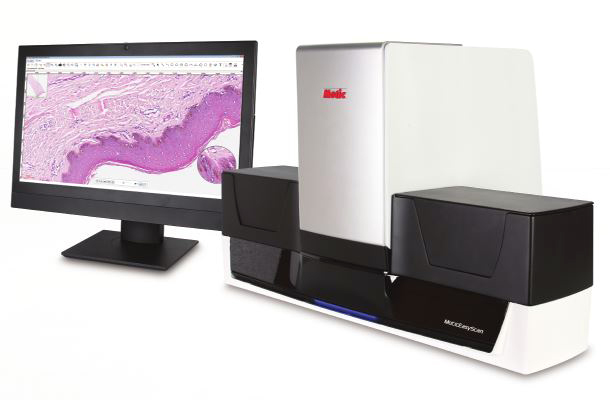

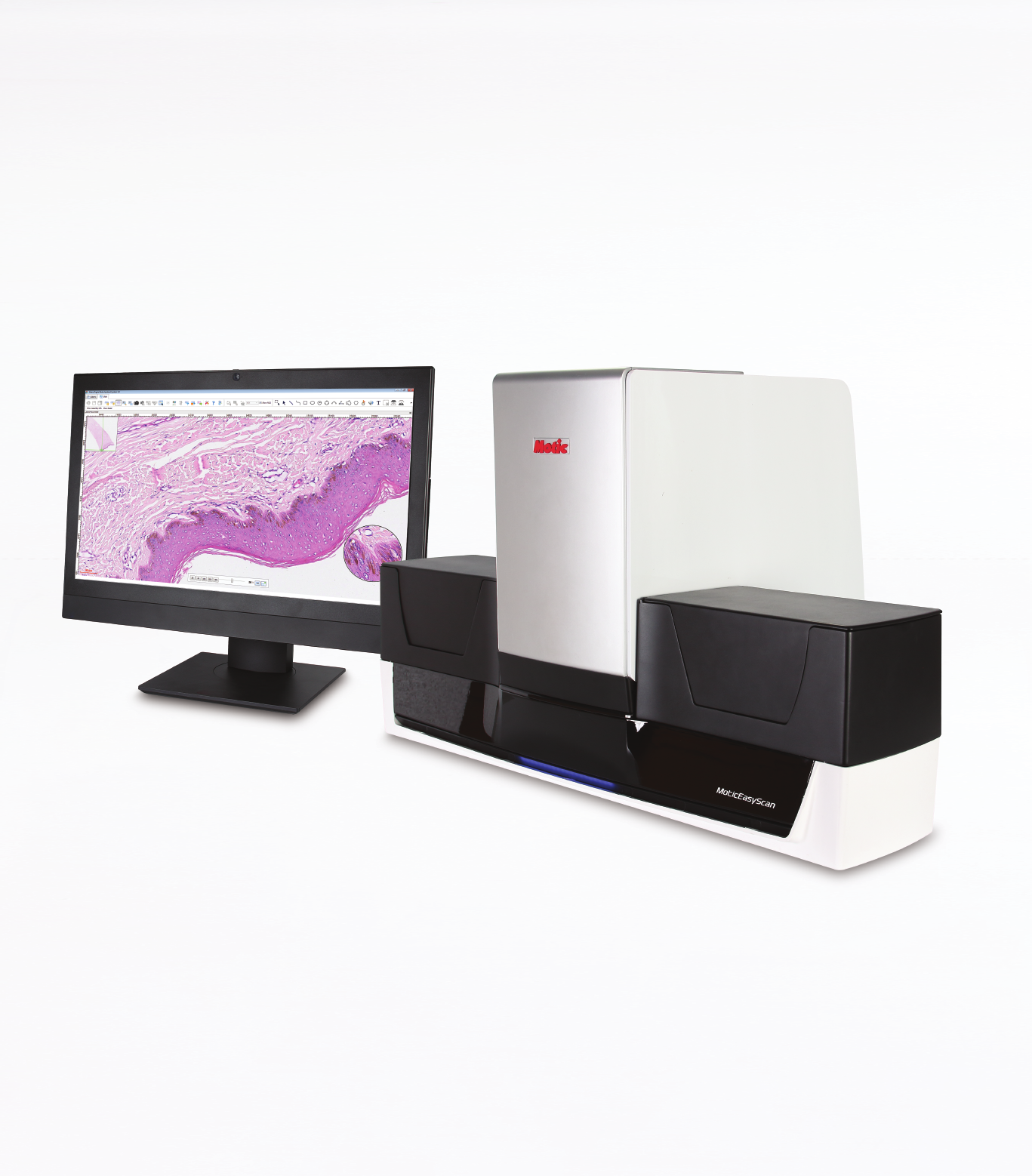

Motic EasyScan Infinity
2023 New and Improved EASYSCAN Infinity Slide Scanner

Designed for busy clinical labs!

Motic EasyScan Infinity Slide Scanners from Meyer Instruments, Inc.
How to View our Slides: Login: Demo Password: Motic773 Left mouse click on any slide. The image will open in a new page. Use your left mouse button and mouse wheel to zoom, pan and scroll. In the upper left hand corner of the opened image you will see an icon of three horizontal lines. Click that, then find three different horizontal lines  to change contrast, brightness and gamma. Click the X in the upper right corner to close image and change slides.
  • No pre-scan preparation necessary!
  • ‘Smart Tray’ technology for intuitive slide organization
  • Automatically locates and  identifies problem slides with NFC technology
  • Scan and view up to 1,000 slides per week!
  • 60 or 102 slide capacity with a single click
  • 12 Megapixel camera for 100 second scans

The redesigned EASYSCAN Infinity Slide Scanners now offer SMART handling technology.

The EASYSCAN Infinity slide scanner allows 60 or 102 slide capacity scanning.

Simply “Load and Go!”, no need to waste time prepping the slide with SMART handling!

Includes three (3) place motorized nosepiece with 10x/0.3 and 20x/0.75 Plan Apochromatic Objectives.

Optional 40x Plan Apochromatic objective.

Simple, fast, feature packed, high resolution, high throughput whole slide scanners.

Both at affordable pricing, thousands below our competition!

The new AI software ELIMINATES workflow issues from the start!

The scanner gets “smarter” the more it slides it scans!

Software Features:

Easiest to use graphic interface of any slide scanner on the market

One button walk away scanner operation

5 scan modes: Fast, Standard, High Resolution, Z-Stack and EDF (extended depth of field)

Automatic sample detection with manual override

Audio alert when scan run is completed

Automatically uploads images to server once scanned

DSAssistant and DSServer software included for immediate sharing and consultation with zoom, pan and scroll

Complete image enhancement capability, rotation, annotation, measurements and multiple ways to save complete images or ROI’s

SVS, TIFF, JPEG, JPEG 2000 and MDS file formats

Add or remove scale bar, macro overview window, slide label, magnification buttons and zoom magnifier

Side-by-side multiple image display for up to 8 simultaneous images

HIPAA compliant, encrypted and hospital approved

Hardware Features:

60 or 102 slide capacity (10 trays or 17 trays of 6 slides each)

Complete scan time is less than 100 seconds (40x, 15mm x 15mm area) and 60 seconds (20x, 15mm x 15 mm area)

2/3 “CMOS, 12M Pixel Main Camera ; Resolution: 4619 X 2598, 15 fps, 3.45 X 3.45μm / pixel,

USB3 connectivity, three (3) camera system

Three (3) place motorized nosepiece

High resolution 10x and  20x/0.75 Plan Apo objective lens produces ultra-clear, color correct images

Optional Plan Apo 40x/0.75 objective lens

0.13 um/pixel resolution for super fine details

NFC technology, or near-field communication allows ultra-quick data transfer

Control Systems XYZ auto, repeat positioning accuracy ≤ 1um

Optical system CCIS, 10W LED illumination, working time > 30,000 hours

EasyScan Main Menu - It's so EASY!

Overview01

EasyScan DSAssistant Thumbnail Views - It's so EASY!

DSAssistant

EasyScan DSAssitant Image Comparison - It's so EASY!

Capture21

EasyScan Optional 4K display increases your field of view over 4 times! - It's so EASY!

what-you-see-4k

INCLUDED Extended Depth of Field (EDF) software allows a series of Z stack images to be transformed into single FOCUSED image with unprecedented clarity!

Standard Image verses Extended Depth of Field Image - It's so EASY!

Comparison2

Standard Image verses Extended Depth of Field Image - It's so EASY!

Motic EasyScan Infinity Slide Scanners from Meyer Instruments, Inc.

Send us your slides to scan and we will upload the resulting images on our server for your review. Or better yet, call us at 281-579-0342 to arrange a Web based ‘LIVE” demonstration on the EASYSCAN Infinity digital pathology whole slide scanner.

All data and pricing subject to change without notice . . .

All Motic EASYSCAN INFINITY digital pathology slide scanners are for research purposes ONLY!

Worldwide hundreds have been sold and are currently in use. Considered one of the easiest to use slide scanners on the market today.
