Pathscan Enabler 5 Low Power ScannerLow Power Histological and Geological Slide Scanner
After 23 years of offering the PathScan Enabler we are almost sold out!  Once they are gone they are gone! Are you an existing PathScan Enabler customer? Find out how to save $1,500.00 towards the purchase of a uScope slide scanner.  The UScope MXII or HXII slide scanners do everything the Pathscan Enabler 5 can do and much more! Please consider an upgrade today!

PathScan Enabler 5 is the ORIGINAL low cost Pathology and Geology Slide Scanner

In Stock

The PathScan Enabler 5 is the latest version of the patented PathScan series digital slide scanners. The original PathScan Enabler helped create the market for personal digital slide scanning over 23 years ago. With the new intuitive design, the PathScan Enabler 5 allows scanning of whole mounted histological samples attached to standard 1 X 3 inch cover slipped glass slides. The new optional GEOLOGICAL POLARIZING holder allows scanning of polished rock thin sections attached to 1 X 2 inch glass slides in both brightfield and polarized light!

The PathScan Enabler 5 solves low power, large field of view, and high resolution imaging problems. Scan area is 24.3 x 36.5 mm, resulting in stunning, incredible images up to 14,320 x 9,522 pixels! The PathScan Enabler 5 holds two (2) 1 X 3 inch glass slides and includes simple to use software for both Windows and Mac computers. The GEOLOGICAL POLARIZING holder accepts one (1) 1 x 2 inch glass slide. Image files are saved in TIFF or JPEG formats. The PathScan Enabler 5 is designed not to replace but complement a microscope and digital camera. The entire sample is scanned with an even, clear background and makes a perfect OVERVIEW image that can be viewed in a variety of software programs. Image scans are equivalent to 40X microscope resolution. Now in its 23th year of production, thousands are in use!

PathScan Enabler 5 is the ORIGINAL low cost Pathology and Geology Slide Scanner, developed and designed by Meyer Instruments, Inc.  Don’t be fooled by imitations or copies! Patent 5612819

Stunning, incredible images up to 14,320 x 9,522 pixels.
Now in BRIGHTFIELD and (optional) POLARIZED light!


Click to view full resolution.

“Conventional microscopes equipped with low power objectives and digital cameras typically cannot capture samples larger than 6 mm in diameter. The PathScan Enabler 5 captures specimens as large as 36.5 mm in diameter! Better yet, there is no uneven illumination or out of focus sample edges, as can be the case with traditional low power image capture techniques”

Example Images

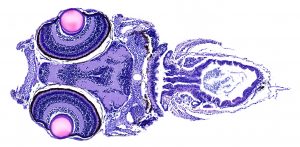

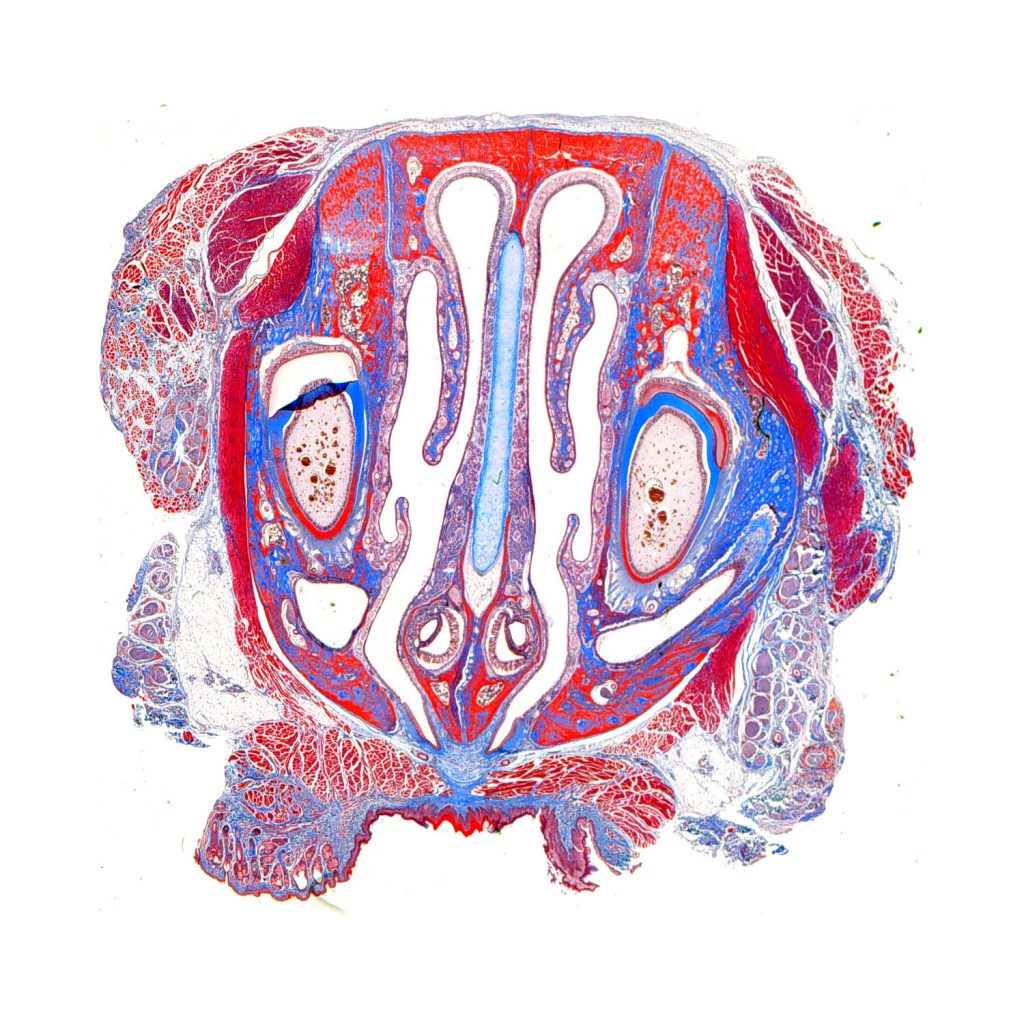

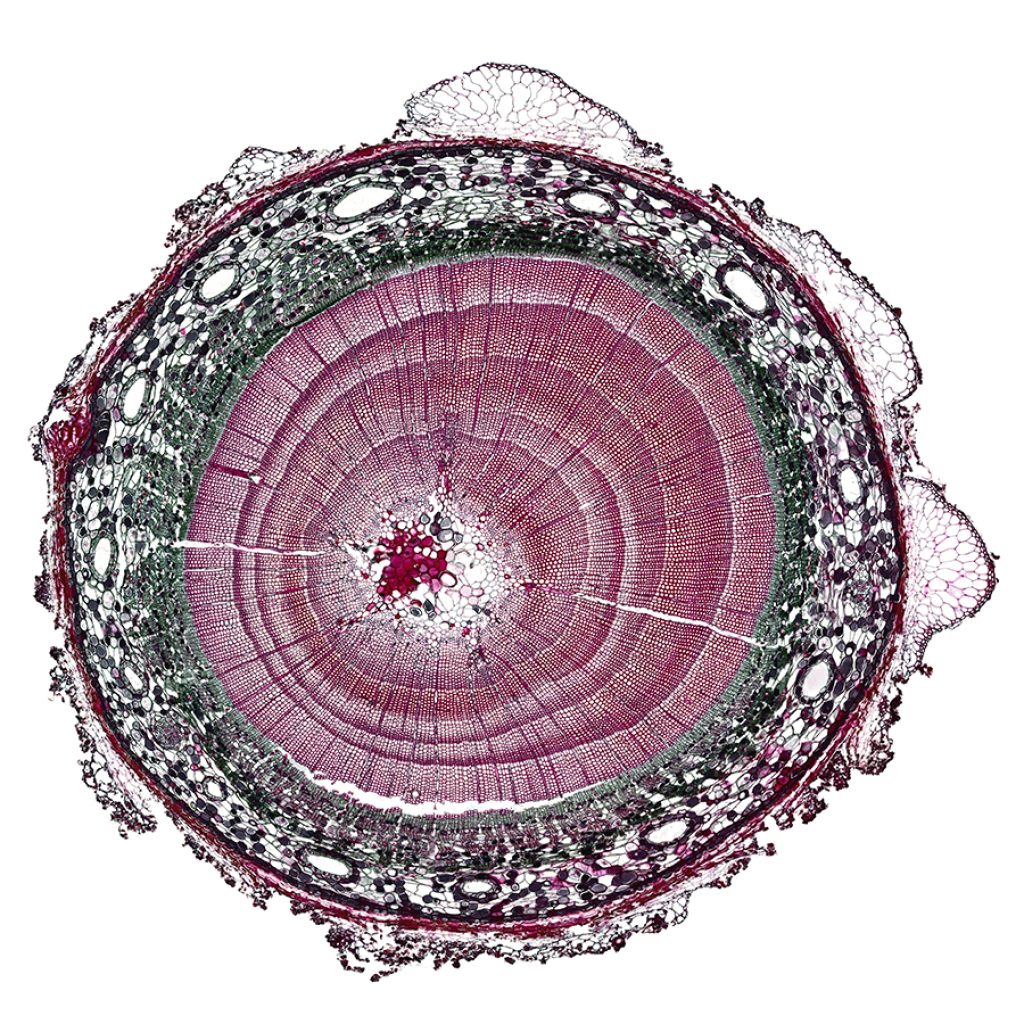

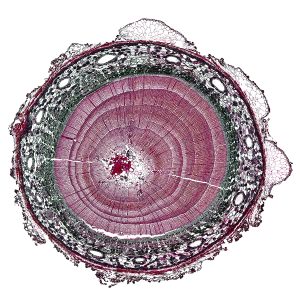

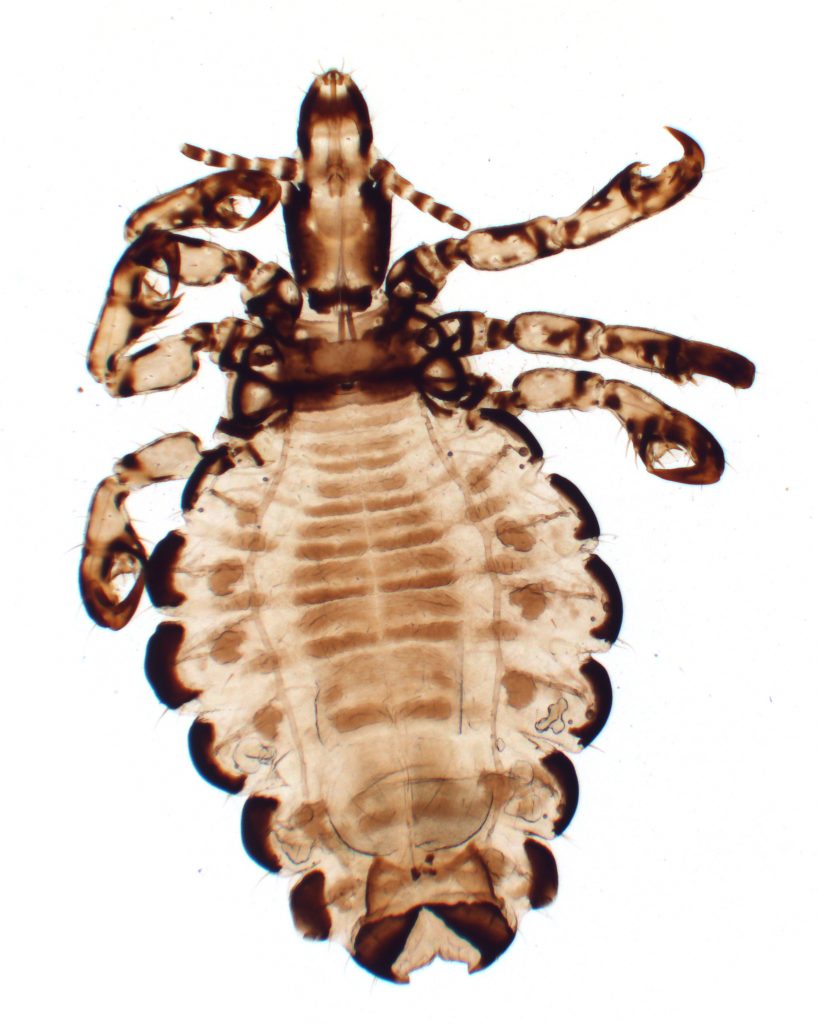

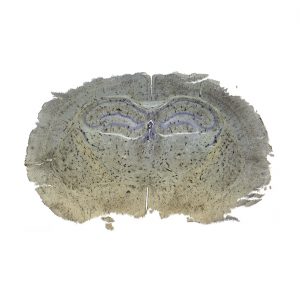

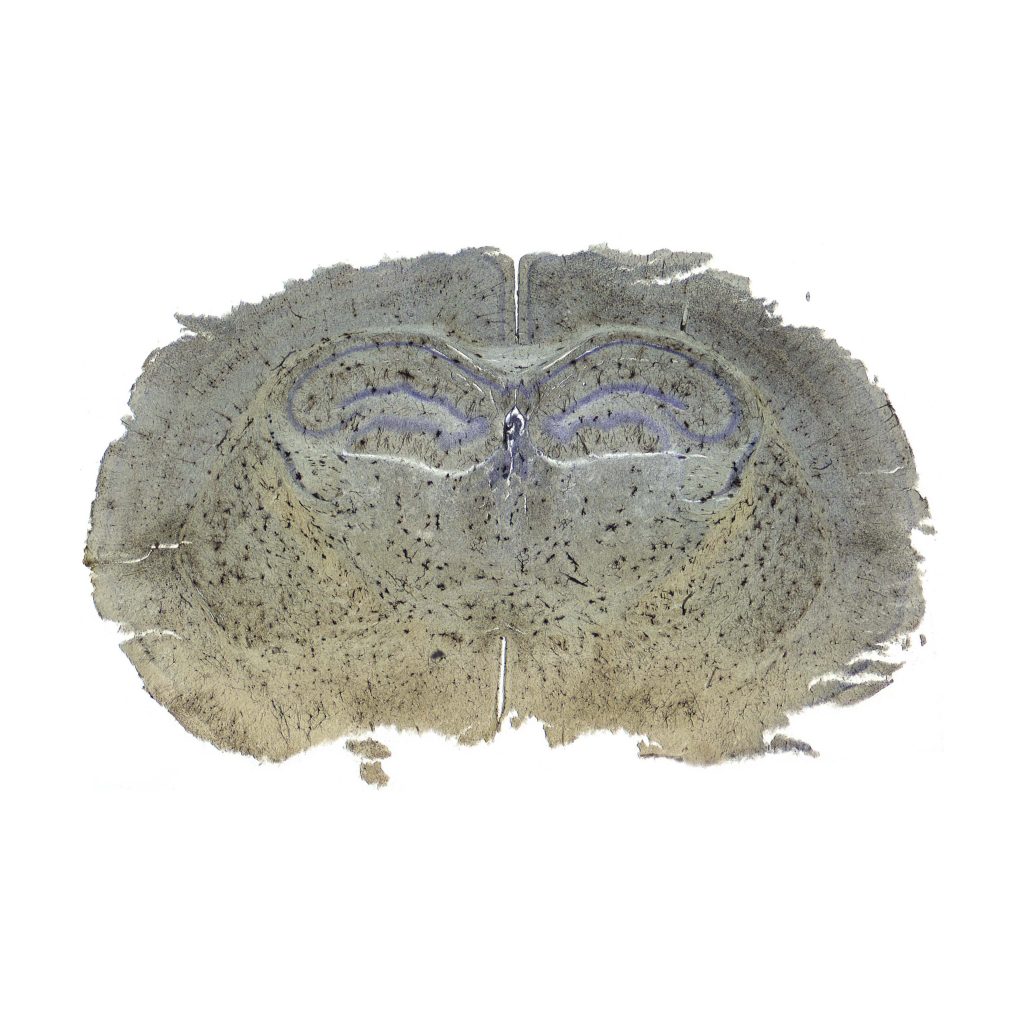

Biological Samples

Geological Samples

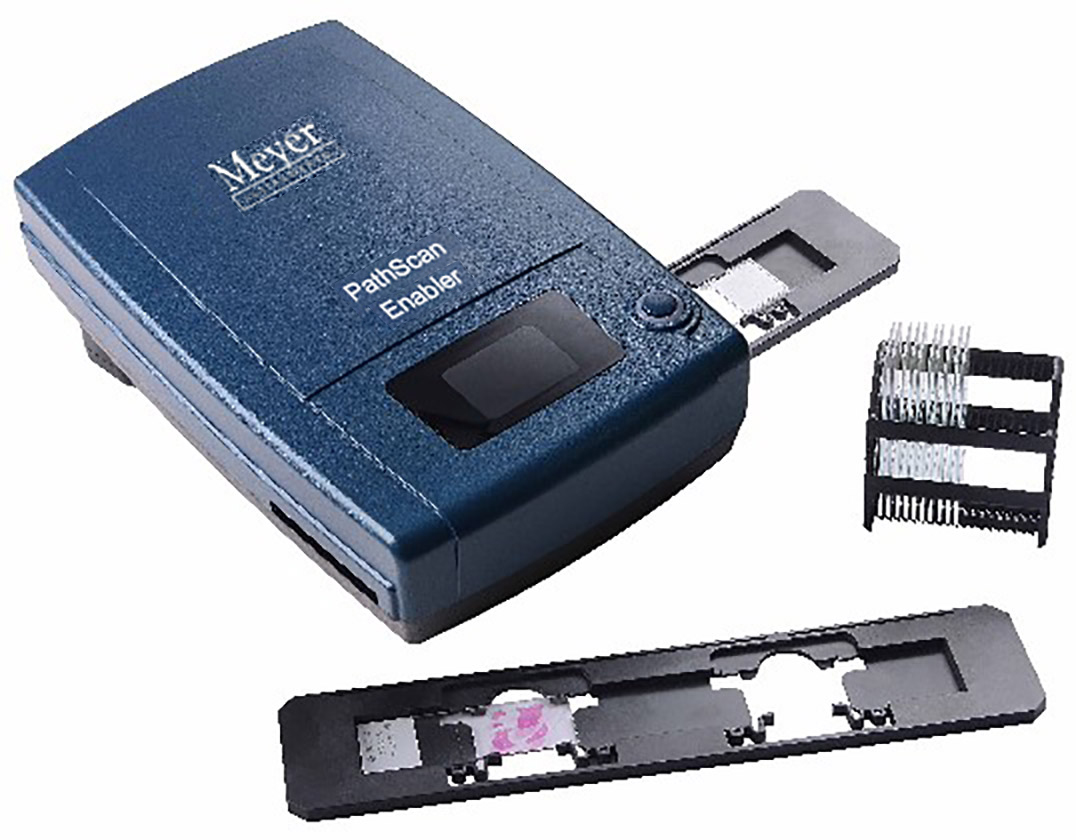

PathScan Enabler 5
  • Priced at $1,895.00 as shown!

  • Low cost slide scanner for histology and optional geological slides
  • Simple to use software, scans, saves in TIFF or JPEG format
  • Opens image in Adobe Photoshop, Word, Excel, PowerPoint, etc.
  • Typical scan times is just over a minute
  • Included holder accepts two 1 x 3″ glass slides
  • Optional GEOLOGICAL POLARIZING holder accepts one 1 x 2″ glass slide, $499.00 option (limited availability)
  • 10,000 x 10,000 dpi resolution, 2.54 microns per pixel
  • Viewing windows allows you to see exactly what will be scanned
  • LED white light illumination
  • Windows and Mac compatible
  • 24 bit color sampling
  • Dynamic range 3.8
  • Real time sharpening, automatic color correction
  • PC Windows XP/Vista/7/8 Mac OS X 10.5/10.6/10.7/10.8
  • USB2 interface
  • Dimensions 410 x 150 x 280 mm
  • Fifth generation, 1,000’s sold!
