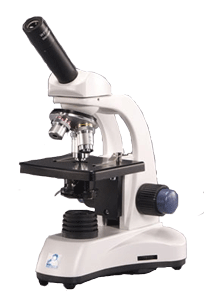

MT-10 Educational Microscope
Meiji Techno offers the MT-10 Series Compound Microscopes for Educational Applications.
- Ergonomic Hand Grip for portability and ease of storage
- Low positioned Ergonomic Coaxial Focus Control
- Abbe condenser, N.A. 1.25 with iris diaphragm lever for height adjustability
- Revolving Quadruple forward-facing nosepiece on ball bearings
- Achromatic DIN Semi Plan Standard 4x, 10X, 40X, 100x objectives
- Anti-Fungus treated optical parts for mold prevention
- Digital models available with built in 1.3MP 1/2 chip CMOS USB2 Camera
- LED variable intensity illumination generating even illumination and low electrical consumption
- 2 year Warranty
The MT-10 Series Compound Microscopes have crisp, erect images over a wide field of view. These student microscopes are built to last, year after year. Just perfect for grade schools and high schools!
Speak with one of our specialists today to see if the MT-10 Series is right for you!
(281) 579-0342
Standard Specifications
VIEWING HEADS
Monocular 45° inclined tube and binocular 30° inclined tubes
The digital versions are equipped with a 1.3 Mpixel 1/3 inch CMOS Color USB2 camera @ 1280x 1024 pixels
EYEPIECES
Secured DIN WF 10x/18 mm with pointer
OBJECTIVES
All models are equipped with achromatic corrected 4x/0.13, 10x/0.25, S40x/0.65 and S100x/1.25 objectives.
All optical parts are anti-fungus treated.
NOSEPIECE
Revolving quadruple forwarded nosepiece on ball-bearings.
STAGE
Plain 123 x 119 mm stage with 2 object clamps except for the MT-14 which is equipped with an integrated mechanical stage.
CONDENSER
In height adjustable Abbe condenser.
FOCUSING ADJUSTMENT
Coaxial coarse and 200 µm fine adjustments, 2 µm precision. Friction adjustment..
ILLUMINATION
1 W intensity adjustable LED illumination with internal power supply. The MT-14 is equipped with internal batteries.
SOFTWARE
ImageFocus 4 capture & analysis software is supplied with each digital microscope model.
The software is compatible with Windows XP, Vista, Windows 7 & 8, both 32 and 64 bits platforms
Optional Accessories
Eyeshields, AC adapter, dust cover (included)
