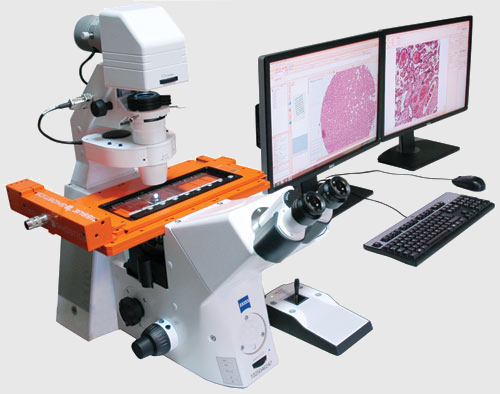

TissueFAXS i Histo
INVERTED BRIGHTFIELD SLIDE SCANNER

TissueFAXS i Histo is an inverted brightfield system for the scanning and analysis of slides, cytospins, smears and tissue microarrays. The system is equipped with HistoQuest or StrataQuest Histo image analysis software.

S  TissueFAXS i Histo is also available in a scan only configuration.



check  TissueFAXS i Histo can be upgraded to the TissueFAXS i PLUS configuration.

TissueFAXS i Histo
UNIQUE FEATURES

  • Brightfield scanning
  • 8 slides scanning, petri dishes and well plates
  • Slide ID Scanner
  • Quantitative image analysis option
  • TMA & CISH scanning & analysis
  • Extended focus, stitching & illumination
  • Image and metadata storage, management and archiving

CONFIGURATION

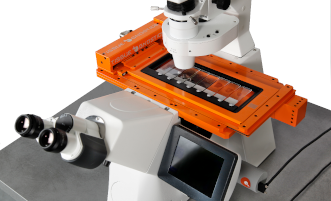

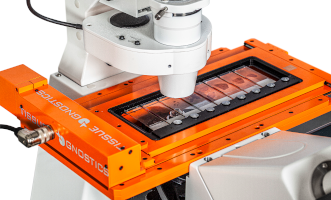

TissueFAXS i Histo is TGs upright brightfield slide scanner. The system scans and analyses samples on slides, petri dishes and well plates in brightfield mode. The standard configuration comes equipped with an 8-slide stage.

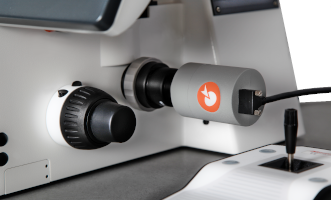

The objective turret allows for up to 7 objectives from all Zeiss objective classes with a M24 thread. TG continuously checks the market for cameras and other technical equipment to provide those solutions that deliver top performance and are cost-effective. The TissueFAXS i Histo standard camera is a color 8 bit CMOS camera.

TissueFAXS Scanning and Management software integrates all the hardware components into an easy to use workflow with full, walk-away automation capabilities.

TissueFAXS i Histo
UPGRADES

All imaging systems are modular and upgradable. Every system can be customized to offer the following capabilities: brightfield scanning, widefield fluorescence, confocal, and multispectral. To exemplify TissueFAXS i Histo can be ugraded to

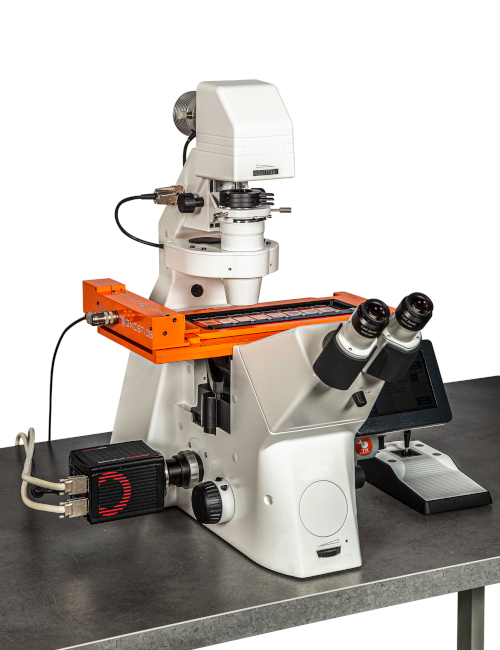

– TissueFAXS i PLUS (Image on the left)
– TissueFAXS iQ+
– TissueFAXS i SPECTR

PROPERTIES

Design

Modular (Microscope, Camera, Light-source, PC with 2 Monitors)

Microscopy mode

Brightfield

Compatible Slide Formats

Standard Slides, Over-sized Slides, Petri Dishes, Well-Plates

Slide Capacity

8

Objectives

Up to 7 Objectives (2.5-100x)

Camera

CMOS Camera (8/10-bit, 4.2 Megapixel, Color)

Light Source

VIS-LED

Tissue Microarray (TMA)

YES

Image Analysis Software

QUEST line (Algorithms for tissue detection, area measurment, scattergrams for cells and many more)

Supported Image Formats

TissueFAXS, OME-TIFF, TIFF, JPEG, BMP, PNG

Viewer

Integrated, stand-alone freeware
