TISSUE & CELL CULTURE CYTOMETERS

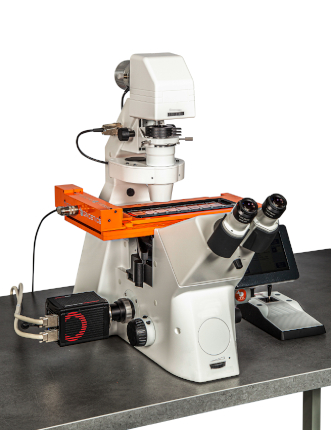

TissueFAXS i PLUS
INVERTED BRIGHTFIELD AND FLUORESCENCE SYSTEM
TissueFAXS i PLUS is an inverted fluorescence and brightfield system for the scanning and analysis of slides, cytospins, smears and Tissue Microarrays. The system is equipped with TissueQuest/HistoQuest or StrataQuest PLUS image analysis software.
The TissueFAXS i PLUS is also available in a scan only configuration.
The TissueFAXS i PLUS can be upgraded to the TissueFAXS iQ+ configuration and additionally equipped with fluorescence high-speed packages.
TissueFAXS i PLUS
UNIQUE FEATURES
- Multi-channel fluorescence & brightfield
- 8 slides, 1 micro well plate, 1 petri dish
- Automatic tissue detection
- Time lapse scanning, live imaging
- Extended focus, stitching & illumination correction
- Quantitative image analysis
- TMA & FISH/CISH scanning & analysis
- Image and metadata storage, management and archiving
CONFIGURATION
TissueFAXS i PLUS is the most versatile configuration of all TG inverse systems. It can scan and analyse samples on slides, in microtiter plates and in Petri dishes in both brightfield and epifluorescence modes. It can be equipped with supplementary components for contrast microscopy methods, like Differential interference contrast (DIC) microscopy in brightfield. It scans 5 channels in epifluorescence if the maximum of 5 single bandpass filters is fitted or more if multibandpass filters are used.

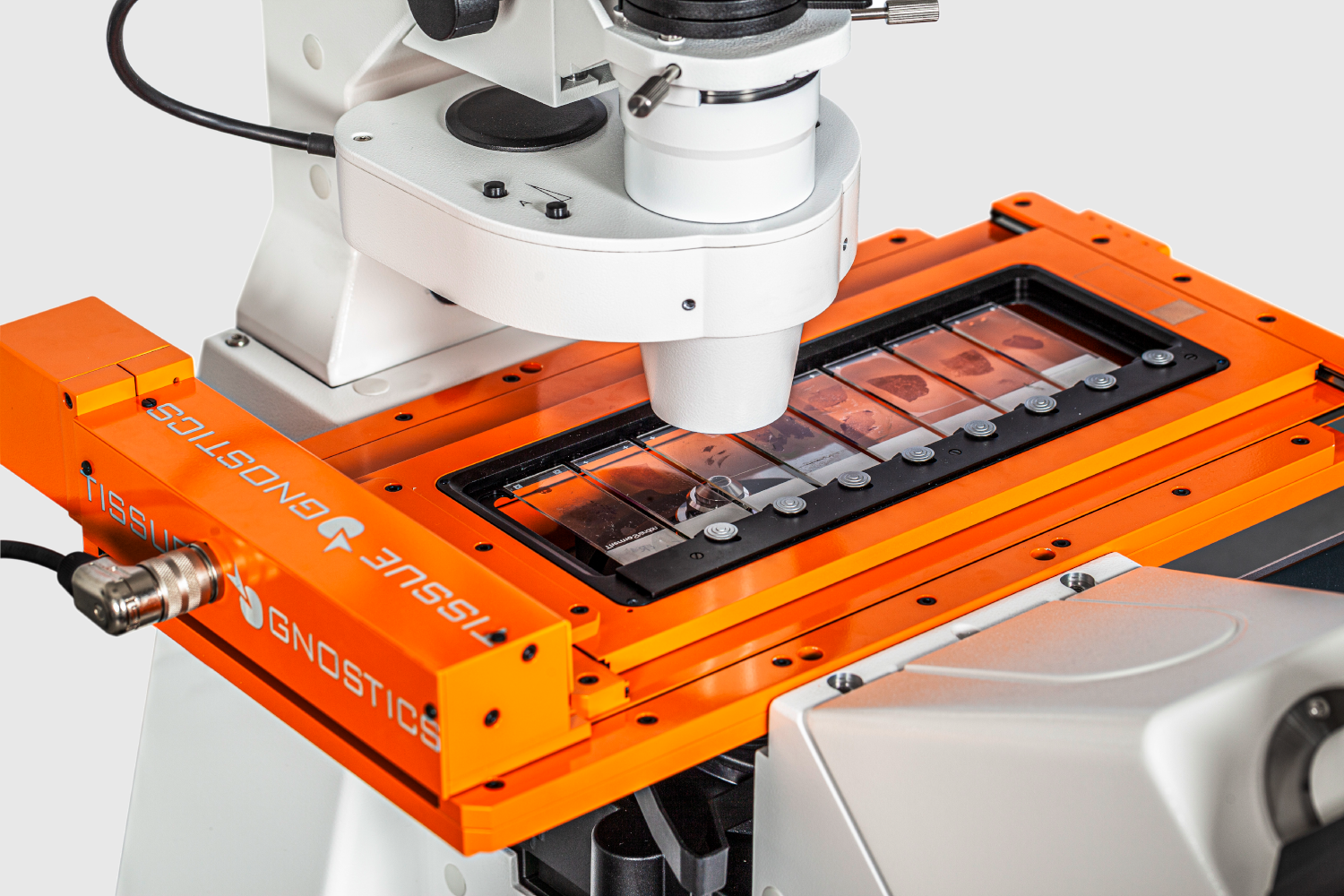

The system comes equipped with an 8-slide stage which can also take a microtiter plate insert as an alternative. Inserts for Petri dishes and customized inserts for other sample containers are available on demand. A four slide/one microtiter plate stage is also available.
TissueFAXS i PLUS supports Live Imaging, as do all other inverse stand-based configurations. CO2, O2 and temperature control modules are available, as is the choice of small stage top incubators or conventional incubation enclosures. The environment controls are not integrated into the TissueFAXS control software (being usually set for longer time periods) and can be controlled via the microscopes touch screen. The TissueFAXS control software provides time lapse scanning.

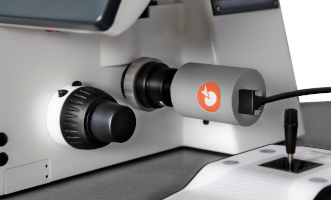

Objectives from all Zeiss objective classes with M24 thread can be fitted, the turret takes a maximum of 6. TG continuously checks the market for cameras and other technical equipment to provide those solutions that deliver top performance and are cost-effective. The TissueFAXS i PLUS standard cameras are good examples of this successful strategy. The right illumination is of paramount importance in light microscopy. TG provides fully system software-controlled solutions which are mostly maintenance free and have long lasting illuminantes. The correct filters which guarantee pixel shift-free and low channel crosstalk are equally important to make fluorescence scanning easily accessible for all users of a TG system.
TissueFAXS Scanning and Management software integrates all the hardware components into an easy to use workflow with full, walk-away automation capabilities.
TissueFAXS i PLUS
UPGRADES
All imaging systems are modular and upgradable. Every system can be customized to offer the following capabilities: brightfield scanning, widefield fluorescence, confocal, and multispectral. To exemplify TissueFAXS i PLUS can be ugraded to

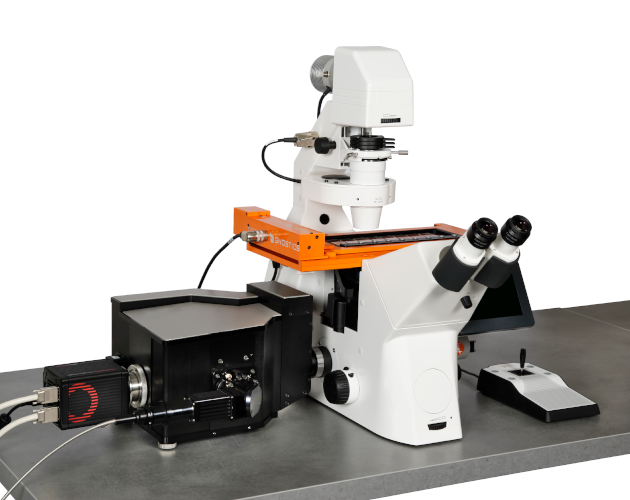

-TissueFAXS iQ+ (Image on the left)
-TissueFAXS i SPECTRA
PROPERTIES
Design
Microscopy mode
Compatible Slide Formats
Slide Capacity
Objectives
FL-Channels
Camera
CMOS Camera (8/10-bit, 4.2 Megapixel, Color)
Light Source
Solid-state Light Engine
