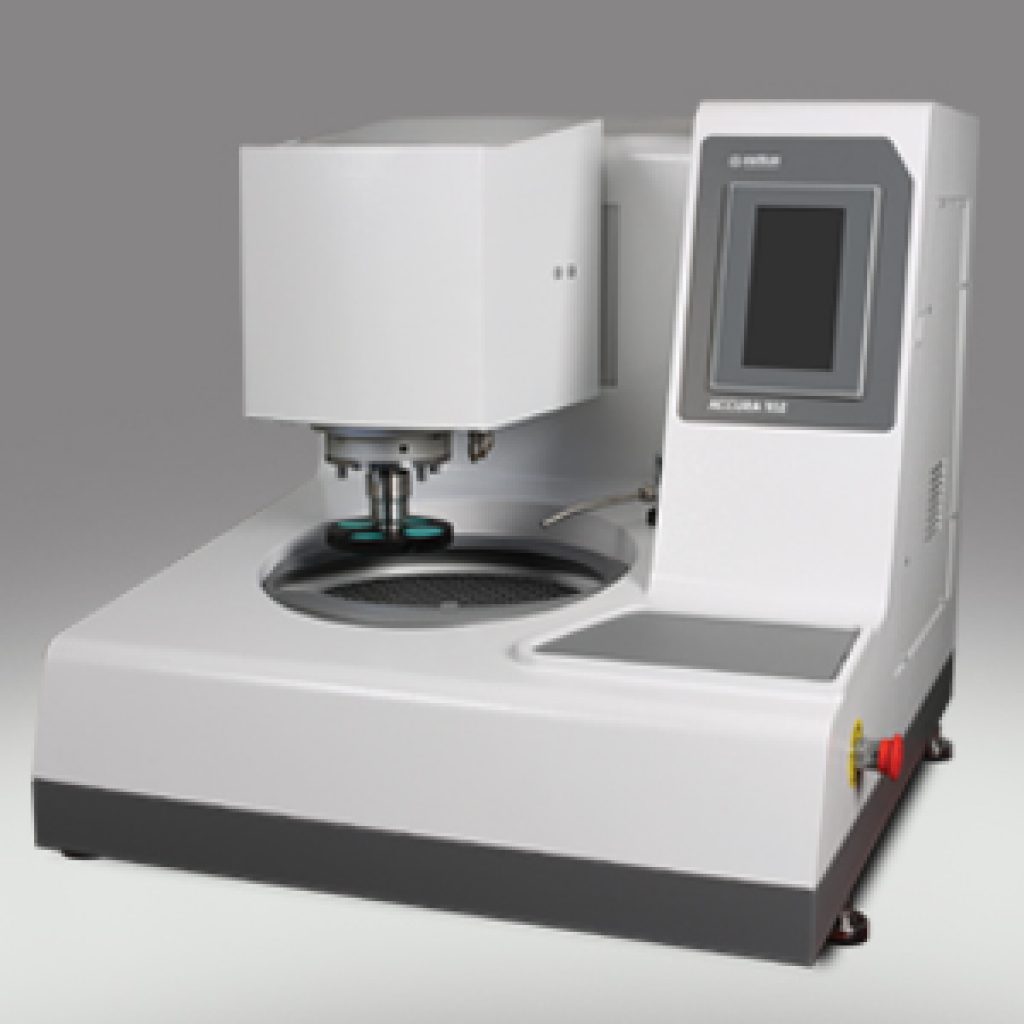

Metkon ACCURA 102 Metallographic Automatic Grinding and Polishing Machine
Features
Precise, Robust and Reliable
Motorized Sample Holder Positioning
Very Powerful Base Motor
Precise Force Loading
Quick Sample Holder Replacement Mechanism
Half Round Rotation Feature
7” HMI Touch Screen Controls
Soft and Stop Feature
Automatic Disc Cleaning and Drying Feature
Material Removal Measurement
Barcode Scanner
Dosing Module
Call Meyer Instruments, Inc. to see if a
Metallographic Automatic Grinding and Polishing Machine
is a good match for you.
(281) 579-0342
Description
Metallographic Automatic Grinding and Polishing Machine
ACCURA 102 is an advanced high-end grinding and polishing system, which has robust construction on dual columns for applications requiring extremely flat specimen surfaces. Suitable for both Ø250 and Ø300 mm applications. Motorized positioning of the Head in vertical (Z) and horizontal (X) axes with memory function. Precise control of the force applied. Combined with optional grinding depth measurement system. Ability to store and recall preparation programs on the LCD screen. Efficient control of consumable consumption by optional integrated Peristaltic Dispensing Unit. Transparent cover for improved safety and working area.
ACCURA 102 has advanced techniques and software with programmable coloured HMI touch screen controls increasing the productivity, sample consistency and operator comfort. It is used to prepare high volumes of metallographic, ceramic and mineralogical specimens with consistent reproducible quality. Both “Central’ and /or “Individual” forces can be applied and single samples as well as multi – samples can be accommodated. Thus, offering a perfect solution for all levels of sample throughput requirements. The specimen mover head has motorized positioning in horizontal and vertical directions with memory function. The force on the specimen ‘individual” or “central” is pneumatically controlled by a pressure transducer. Optional grinding depth measurement system allows you to measure the amount of material removed from the surface. The desired grinding depth can be set to grind different type of samples and also for applications that need special accuracy.
Technical Specifications
| ORDER NO | 45 00 |
| MODEL NO | ACCURA 102 |
| Application of Force | Individual + Central |
| Individual Force, (N) | 5-100 |
| Central Force, (N) | 30-500 |
| Head Motor, W | 100 |
| Motor Power, HP | 1,5 |
| Wheel Diameter, (mm) | 250/300 |
| Head Rotation Direction | CW |
| Wheel Rotation Direction | CW/CCW |
| HMI Touch Screen, (inch) | 7″ |
| Program Memory | 30 |
| Peristaltic Dispenser | Optional |
| Grinding Depth Measurement (Z Axis) | Optional |
| Grinding Depth Measurement Accurracy (μ) | 10 |
| Horizantal Positioning | Yes |
| Horizantal Positioning,mm | 50 |
| Dimensions, W x D x H, (cm) | 73 x 79 x 73 |
| Weight, (kgs) | 200 |
Accessories
| Dosing Modules for ACCURA 102 | |
| GR 1016 | Automatic Fluid Dispenser, programmable and controllable from the touch |
| screen of ACCURA 102, with pre-dosing function, with 6 micro peristaltic pumps | |
| (5 for diamond suspensions/lubricant and 1 for alumina suspensions) | |
| with automatic liquid level calculation, with automatic retract function | |
| at the end of every step to prevent contamination | |
| (To be ordered simultaneously together with the machine order) | |
| Operational Accessories for ACCURA 102 | |
| 250 mm Application | |
| 31 21 | PVC wheel, 250 mm |
| 31 42 | Aluminum wheel, 250 mm |
| 31 65 | Splash guard, 250 mm |
| 300 mm Application | |
| 31 31 | PVC wheel, 300 mm |
| 31 52 | Aluminum wheel, 300 mm |
| 31 75 | Splash guard, 300 mm |
| Accessories for ACCURA 102 | |
| GR 0871 | Z-axis material removal with depth control, for ACCURA 102 |
| (To be ordered simultaneously together with the machine order) | |
| GR 0665 | Barcode Scanner for easy loading correct programs for different samples |
| 31 14 | Special Protection Cover, to be used with ACCURA 102 |
| (To be ordered simultaneously together with the machine order) | |
| GR 1693 | Cabinet for ACCURA 102 |
| GR 0440 | Air filtering and lubricating unit |
| GR 1397-00 | Water Filtering and Pressure Regulator System for city water inlet. |
| Keeps the water pressure at the appropriate level and protects from sudden | |
| pressure spikes. Filtering out impurities in the water and prevents calcification. | |
| YM 3824-00 | Spare Siliphos Cartridge Filter |
| (for Water Filtering and Pressure Regulator System (GR 1397-00)) | |
| Specimen Holders for Individual Force Application | |
| (for FORCIMAT 52/102/TS, ACCURA 102) | |
| 33 31 | Individual force specimen holder, Ø145mm, for 6 x Ø25 mm specimens. |
| 33 32 | Individual force specimen holder, Ø145mm, for 6 x Ø30 mm specimens. |
| 33 33 | Individual force specimen holder, Ø145mm, for 6 x Ø40 mm specimens. |
| 33 34 | Individual force specimen holder, Ø155mm, for 3 x Ø50 mm specimens. |
| 33 35 | Individual force specimen holder, Ø145mm, for 6 x Ø1″ specimens. |
| 33 36 | Individual force specimen holder, Ø145mm, for 6 x Ø1 1/4″ specimens. |
| 33 37 | Individual force specimen holder, Ø145mm, for 6 x Ø1 1/2″ specimens. |
| 33 38 | Individual force specimen holder, Ø155mm, for 3 x Ø2″ specimens. |
| 33 39 | Individual force specimen holder, Ø145mm, Blank. |
| 33 02 | Set of insert rings for Ø30 mm (to be used with 33 33) |
| 33 03 | Set of insert rings for Ø25 mm or Ø1″ (to be used with 33 33) |
| 33 04 | Set of insert rings for Ø1 1/4″ (to be used with 33 33) |
| 33 05 | Set of insert rings for Ø1 1/2″ (to be used with 33 33) |
| Specimen Holders for Central Force Application | |
| (for FORCIMAT 102, ACCURA 102, FORCIPLAN 102) | |
| 46 81 | Clamp type specimen holder, Ø130mm, 6 specimens with Ø25 mm. |
| 46 82 | Clamp type specimen holder, Ø130mm, 6 specimens with Ø30 mm. |
| 46 83 | Clamp type specimen holder, Ø130mm, 4 specimens with Ø40 mm. |
| 46 84 | Clamp type specimen holder, Ø130mm, 6 specimens with Ø1″ |
| 46 85 | Clamp type specimen holder, Ø130mm, 6 specimens with Ø1 1/4″ |
| 46 86 | Clamp type specimen holder, Ø130mm, 4 specimens with Ø1 1/2″ |
| 46 88 | Teardrop specimen holder, Ø130 mm, 6 specimens x 10 – 32 mm. |
| 46 89 | Teardrop specimen holder, Ø130 mm, 4 specimens x 10 – 42 mm. |
| 46 44 | Clamp type specimen holder, Ø130 mm for 4 rectangular specimens 25 X 32 mm. |
| 46 45 | Clamp type specimen holder, Ø160 mm for 3 rectangular specimens 40 x 70 mm. |
| 46 91 | Clamp type specimen holder, Ø160mm, 10 specimens with Ø25 mm. |
| 46 92 | Clamp type specimen holder, Ø160mm, 8 specimens with Ø30 mm. |
| 46 93 | Clamp type specimen holder, Ø160mm, 6 specimens with Ø40 mm. |
| 46 94 | Clamp type specimen holder, Ø160mm, 4 specimens with Ø50 mm. |
| 46 95 | Clamp type specimen holder, Ø160mm, 10 specimens with Ø1″ |
| 46 96 | Clamp type specimen holder, Ø160mm, 8 specimens with Ø1 1/4″ |
| 46 97 | Clamp type specimen holder,Ø160mm, 6 specimens with Ø1 1/2″ |
| 46 98 | Clamp type specimen holder, Ø160mm, 4 specimens with Ø2″ |
| 46 77 | Universal specimen holder for large and irregular shaped specimens, Ø160 mm with 6 clamping fixture |
| 46 39 | Clamp type specimen holder, Ø220mm, 3 specimens for irregular shaped samples |
| Accessories for specimen loading (Central Force) | |
| 45 60 | LEVOMAT Specimen Loading Fixture |
| 45 10 | Specimen Loading Plate Ø130 mm. |
| 45 50 | Specimen Loading Plate Ø160 mm. |
Consumables
| Paper Grinding Discs, Foil Back, for CATCHY System (100 Pcs. Per Pack) | ||
| DEMPAX-F | 38-040-060F | Ø 250 mm Disc, 60 Grit (2 x 50 pcs.) |
| DEMPAX-F | 38-040-120F | Ø 250 mm Disc, 120 Grit |
| DEMPAX-F | 38-040-180F | Ø 250 mm Disc, 180 Grit |
| DEMPAX-F | 38-040-240F | Ø 250 mm Disc, 240 Grit |
| DEMPAX-F | 38-040-320F | Ø 250 mm Disc, 320 Grit |
| DEMPAX-F | 38-040-400F | Ø 250 mm Disc, 400 Grit |
| DEMPAX-F | 38-040-600F | Ø 250 mm Disc, 600 Grit |
| DEMPAX-F | 38-040-800F | Ø 250 mm Disc, 800 Grit |
| DEMPAX-F | 38-040-1000F | Ø 250 mm Disc, 1000 Grit |
| DEMPAX-F | 38-040-1200F | Ø 250 mm Disc, 1200 Grit |
| DEMPAX-F | 38-040-2500F | Ø 250 mm Disc, 2500 Grit |
| DEMPAX-F | 38-040-4000F | Ø 250 mm Disc, 4000 Grit |
| DEMPAX-F | 38-040-SF | Ø 250 mm Mix Grinding Paper set (10 of each from 120 grit to 2500 grit) |
| DEMPAX-F | 38-050-060F | Ø 300 mm Disc, 60 Grit (2 x 50 pcs.) |
| DEMPAX-F | 38-050-120F | Ø 300 mm Disc, 120 Grit |
| DEMPAX-F | 38-050-180F | Ø 300 mm Disc, 180 Grit |
| DEMPAX-F | 38-050-240F | Ø 300 mm Disc, 240 Grit |
| DEMPAX-F | 38-050-320F | Ø 300 mm Disc, 320 Grit |
| DEMPAX-F | 38-050-400F | Ø 300 mm Disc, 400 Grit |
| DEMPAX-F | 38-050-600F | Ø 300 mm Disc, 600 Grit |
| DEMPAX-F | 38-050-800F | Ø 300 mm Disc, 800 Grit |
| DEMPAX-F | 38-050-1000F | Ø 300 mm Disc, 1000 Grit |
| DEMPAX-F | 38-050-1200F | Ø 300 mm Disc, 1200 Grit |
| DEMPAX-F | 38-050-2500F | Ø 300 mm Disc, 2500 Grit |
| DEMPAX-F | 38-050-4000F | Ø 300 mm Disc, 4000 Grit |
| DEMPAX-F | 38-050-SF | Ø 300 mm Mix Grinding Paper set (10 of each from 120 grit to 2500 grit) |
| CATCHY System Accessories (1 Pc. Per Pack) | ||
| CFP | 39-083-250 | Ø 250 mm, Catchy Fix Plate (1 pcs) |
| CFP | 39-083-300 | Ø 300 mm, Catchy Fix Plate (1 pcs) |
| MAGNETO Diamond Coarse Grinding Discs (1 Pc. Per Pack) | ||
| MAGNETO 125 | 38-040-125 | Ø250 MAGNETO Diamond Disc, 125 mic. |
| MAGNETO 125 | 38-050-125 | Ø300 MAGNETO Diamond Disc, 125 mic. |
| MAGNETO 75 | 38-040-075 | Ø250 MAGNETO Diamond Disc, 75 mic. |
| MAGNETO 75 | 38-050-075 | Ø300 MAGNETO Diamond Disc, 75 mic. |
| MAGNETO 54 | 38-040-054 | Ø250 MAGNETO Diamond Disc, 54 mic. |
| MAGNETO 54 | 38-050-054 | Ø300 MAGNETO Diamond Disc, 54 mic. |
| MAGNETO 18 | 38-040-018 | Ø250 MAGNETO Diamond Disc, 18 mic. |
| MAGNETO 18 | 38-050-018 | Ø300 MAGNETO Diamond Disc, 18 mic. |
| MAGNETO Diamond Coarse Grinding Discs (1 Pc. Per Pack) | ||
| MAGNETO 6 | 38-040-006 | Ø250 MAGNETO Diamond Disc, 6 mic. |
| MAGNETO 6 | 38-050-006 | Ø300 MAGNETO Diamond Disc, 6 mic. |
| MAGNETO 3 | 38-040-003 | Ø250 MAGNETO Diamond Disc, 3 mic. |
| MAGNETO 3 | 38-050-003 | Ø300 MAGNETO Diamond Disc, 3 mic. |
| MAGNETO-S Silicon Carbide Grinding Discs (1 Pc. Per Pack) | ||
| MAGNETO-S-120 | 38-041-120 | Ø250 MAGNETO-S Silicon Carbide Grinding Disc, 120 Grit |
| MAGNETO-S-120 | 38-051-120 | Ø300 MAGNETO-S Silicon Carbide Grinding Disc, 120 Grit |
| MAGNETO-S-220 | 38-041-220 | Ø250 MAGNETO-S Silicon Carbide Grinding Disc, 220 Grit |
| MAGNETO-S-220 | 38-051-220 | Ø300 MAGNETO-S Silicon Carbide Grinding Disc, 220 Grit |
| MAGNETO-S-500 | 38-041-500 | Ø250 MAGNETO-S Silicon Carbide Grinding Disc, 500 Grit |
| MAGNETO-S-500 | 38-051-500 | Ø300 MAGNETO-S Silicon Carbide Grinding Disc, 500 Grit |
| MAGNETO-S-800 | 38-041-800 | Ø250 MAGNETO-S Silicon Carbide Grinding Disc, 800 Grit |
| MAGNETO-S-800 | 38-051-800 | Ø300 MAGNETO-S Silicon Carbide Grinding Disc, 800 Grit |
| MAGNETO-S-1200 | 38-041-1200 | Ø250 MAGNETO-S Silicon Carbide Grinding Disc, 1200 Grit |
| MAGNETO-S-1200 | 38-051-1200 | Ø300 MAGNETO-S Silicon Carbide Grinding Disc, 1200 Grit |
| Magnetic System Accessories (1 Pc. Per Pack) | ||
| SMF | 39-003-250 | Ø 250 mm, Special Magnetic Foil |
| SMF | 39-003-300 | Ø 300 mm, Special Magnetic Foil |
| TMP | 39-093-250 | Ø 250 mm, Thin Metal Plate(5 pcs) |
| TMP | 39-093-300 | Ø 300 mm, Thin Metal Plate(5 pcs) |
| Polishing Cloths (Self-adhesive, 10 Pcs. Per Pack) | ||
| METAPO-P | 39-013-250 | Ø 250 mm, for 6 micron diamonds |
| METAPO-B | 39-033-250 | Ø 250 mm, for 3-1 micron diamonds |
| METAPO-V | 39-043-250 | Ø 250 mm, for 1-0,1 micron diamonds or alumina |
| FEDO-6J | 39-015-250 | Ø 250 mm, for 6 micron diamonds |
| FEDO-3 | 39-025-250 | Ø 250 mm, for 3 micron diamonds |
| FEDO-1S | 39-066-250 | Ø 250 mm, for 1 micron diamonds |
| FEDO-1N | 39-055-250 | Ø 250 mm, for 0,25 micron diamonds |
| ALSO | 39-075-250 | Ø 250 mm, for 0,25 mic. diamonds or alumina |
| WOOL | 39-095-250 | Ø 250 mm, %100 wool cloth for 6-3 micron diamonds or alumina |
| COLLO | 39-085-250 | Ø 250 mm, for colloidal silica |
| PETRI | 39-090-250 | Ø 250 mm, for petrography |
| NOWO | 39-005-250 | Ø 250 mm, for 9-1 micron diamonds |
| MIX | 39-250-SPC | Ø 250 mm, (1 of each METAPO-P, METAPO-B, FEDO-3, FEDO-1S, FEDO-1N) |
| METAPO-P | 39-013-300 | Ø 300 mm, for 6 micron diamonds |
| METAPO-B | 39-033-300 | Ø 300 mm, for 3-1 micron diamonds |
| METAPO-V | 39-043-300 | Ø 300 mm, for 1-0,1 micron diamonds or alumina |
| FEDO-6J | 39-015-300 | Ø 300 mm, for 6 micron diamonds |
| FEDO-3 | 39-025-300 | Ø 300 mm, for 3 micron diamonds |
| FEDO-1S | 39-066-300 | Ø 300 mm, for 1 micron diamonds |
| FEDO-1N | 39-055-300 | Ø 300 mm, for 0,25 micron diamonds |
| ALSO | 39-075-300 | Ø 300 mm, for 0,25 mic. diamonds or alumina |
| WOOL | 39-095-300 | Ø 300 mm, %100 wool cloth for 6-3 micron diamonds or alumina |
| COLLO | 39-085-300 | Ø 300 mm, for colloidal silica |
| PETRI | 39-090-300 | Ø 300 mm, for petrography |
| NOWO | 39-005-300 | Ø 300 mm, for 9-1 micron diamonds |
| MIX | 39-300-SPC | Ø 300 mm, (1 of each METAPO-P, METAPO-B, FEDO-3, FEDO-1S, FEDO-1N) |
| Diamond Pastes, Monocrystalline | ||
| DIAPAT-M | 39-301-M | Diamond Paste, 0.25 Mic., 10gr. syringe |
| DIAPAT-M | 39-311-M | Diamond Paste, 1 Mic., 10gr. syringe |
| DIAPAT-M | 39-321-M | Diamond Paste, 3 Mic., 10gr. syringe |
| DIAPAT-M | 39-331-M | Diamond Paste, 6 Mic., 10gr. syringe |
| DIAPAT-M | 39-341-M | Diamond Paste, 9 Mic., 10gr. syringe |
| Diamond Pastes, Polycrystalline | ||
| DIAPAT-P | 39-301-P | Diamond Paste, 0.25 Mic., 10gr. syringe |
| DIAPAT-P | 39-311-P | Diamond Paste, 1 Mic., 10gr. syringe |
| DIAPAT-P | 39-321-P | Diamond Paste, 3 Mic., 10gr. syringe |
| DIAPAT-P | 39-331-P | Diamond Paste, 6 Mic., 10gr. syringe |
| DIAPAT-P | 39-341-P | Diamond Paste, 9 Mic., 10gr. syringe |
| Diamond Suspensions, Monocrystalline | ||
| DIAPAT-M | 39-400-M | Diamond Suspension 0.25Mic. 250 ml, bottle with sprayer |
| DIAPAT-M | 39-410-M | Diamond Suspension1 Mic. 250 ml, bottle with sprayer |
| DIAPAT-M | 39-420-M | Diamond Suspension 3 Mic. 250 ml, bottle with sprayer |
| DIAPAT-M | 39-430-M | Diamond Suspension 6 Mic. 250 ml, bottle with sprayer |
| DIAPAT-M | 39-440-M | Diamond Suspension 9 Mic. 250 ml, bottle with sprayer |
| DIAPAT-M | 39-411-M | Diamond Suspension1 Mic. 1 lt bottle |
| DIAPAT-M | 39-421-M | Diamond Suspension 3 Mic. 1 lt bottle |
| DIAPAT-M | 39-431-M | Diamond Suspension 6 Mic. 1 lt bottle |
| DIAPAT-M | 39-415-M | Diamond Suspension1 Mic. 5 lt bottle |
| DIAPAT-M | 39-425-M | Diamond Suspension 3 Mic. 5 lt bottle |
| DIAPAT-M | 39-435-M | Diamond Suspension 6 Mic. 5 lt bottle |
| Diamond Suspensions, Polycrystalline | ||
| DIAPAT-P | 39-400-P | Diamond Suspension 0.25Mic. 250 ml, bottle with sprayer |
| DIAPAT-P | 39-410-P | Diamond Suspension1 Mic. 250 ml, bottle with sprayer |
| DIAPAT-P | 39-420-P | Diamond Suspension 3 Mic. 250 ml, bottle with sprayer |
| DIAPAT-P | 39-430-P | Diamond Suspension 6 Mic. 250 ml, bottle with sprayer |
| DIAPAT-P | 39-440-P | Diamond Suspension 9 Mic. 250 ml, bottle with sprayer |
| Diamond Two in One Products, Monocrystalline | ||
| DUOPAT-M | 39-510-M | A perfect mixture of 1 mic. Diamond suspension & Diamond Lubricant |
| 500 ml, bottle with sprayer | ||
| DUOPAT-M | 39-520-M | A perfect mixture of 3 mic. Diamond suspension & Diamond Lubricant |
| 500 ml, bottle with sprayer | ||
| DUOPAT-M | 39-530-M | A perfect mixture of 6 mic. Diamond suspension & Diamond Lubricant |
| 500 ml, bottle with sprayer | ||
| Diamond Lubricant | ||
| DIAPAT | 39-502 | Diamond Lubricant, Water-based, 1.0 lt, bottle |
| Alumina Suspensions | ||
| ALU-MIK | 39-200 | Alumina Suspension 0.05 Mic. 1.0 lt, bottle |
| ALU-MIK | 39-210 | Alumina Suspension 0.3 Mic. 1.0 lt, bottle |
| ALU-MIK | 39-220 | Alumina Suspension 1.0 Mic. 1.0 lt, bottle |
| Alumina Powder | ||
| ALU-MIK | 39-100 | Alumina Powder 0.05 Mic. 500gr. |
| ALU-MIK | 39-110 | Alumina Powder 0.3 Mic. 500gr. |
| ALU-MIK | 39-120 | Alumina Powder 1.0 Mic. 500gr. |
| Colloidal Silica | ||
| COL-K(NC) | 39-600 | Colloidal Silica (1 lt), bottle |
