Metkon Ecopress 102 Metallographic Programmable Automatic Mounting Press
Fast, Simple and Reliable Operation!
Double Click System
Powerful and Realible Heating System
Advanced Mounting Features With Touch Screen
Double the Capacity With Intermediate Rams
Improved Operator Safety

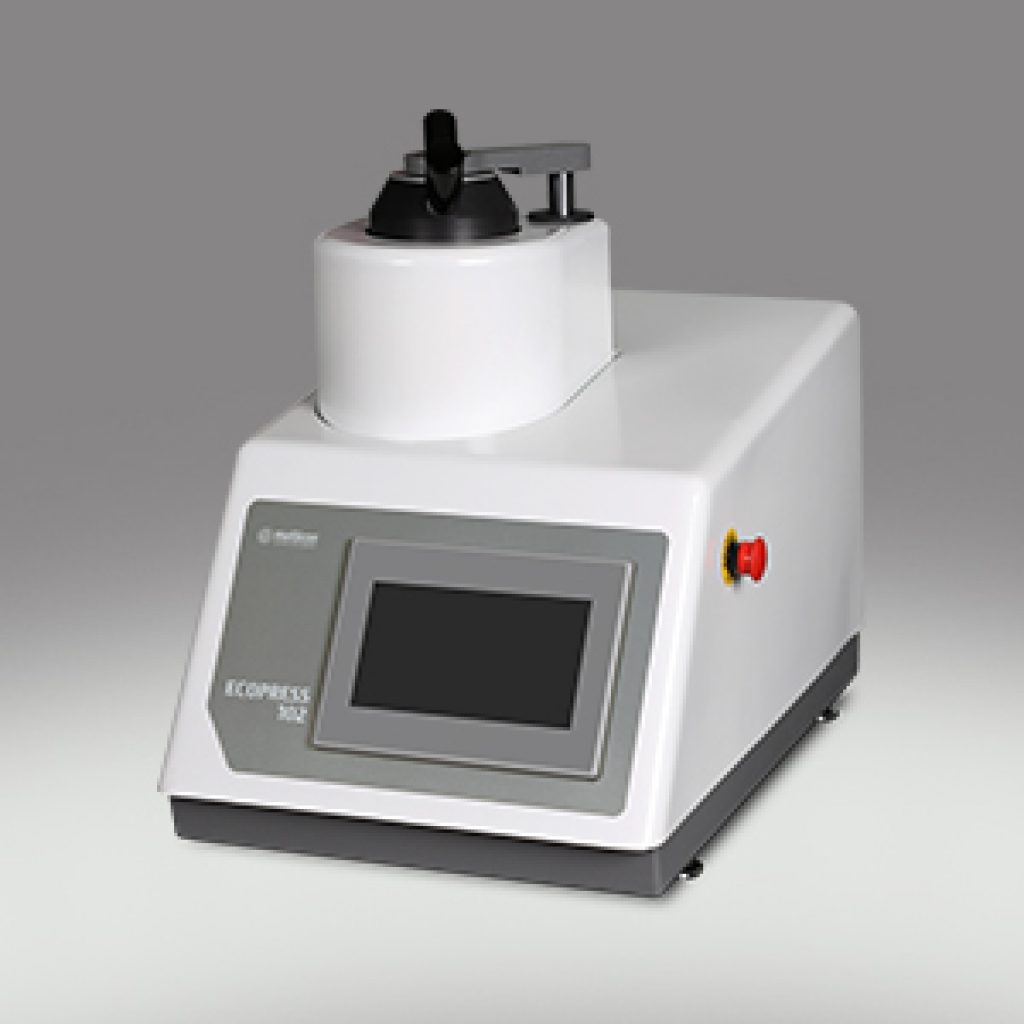

Ecopress 102
Metallographic Programmable Automatic Mounting Press
ECOPRESS 102 is high capacity, state of the art automatic mounting press having advanced software with programmable coloured HMI touch screen controls. Robust bayonet closure allows for quick and safe operation. Wide selection of mould assemblies from 25 to 50 mm in diameter are available. Two mounts can be produced simultaneously with the use of an intermediate ram.
ECOPRESS 102 have pre-programmed moulding sequences built-in (factory set) from which you can choose according to your own applications. You only need to place the sample in the mould, select the program number for your specific application and depress the “Start” button. That’s it! ECOPRESS does the rest for you! After pressing the start key, the fully automatic program sequence is executed with the preselected parameters. The pressure, heating and cooling are automatically controlled and the total cycle time of a complete cool mount takes 7 to 9 minutes. The parameters can be changed and adjusted during the mounting process.
| ORDER NO | 25 11 |
| MODEL NO | ECOPRESS 102 |
| Max. Pressure, bar | 300 |
| Max. Temperature, C | 200 |
| Heating Power, W | 1650 |
| Water Cooling | Yes |
| Slow Cooling | Yes |
| Operation | Programmable/Hydraulic |
| Display | 7” HMI touch screen LCD |
| Mould Assembly, mm | 25-50 |
| Size W x D x H, (cm) | 36x 55x 48 |
| Weight, (kg) | 38 |
