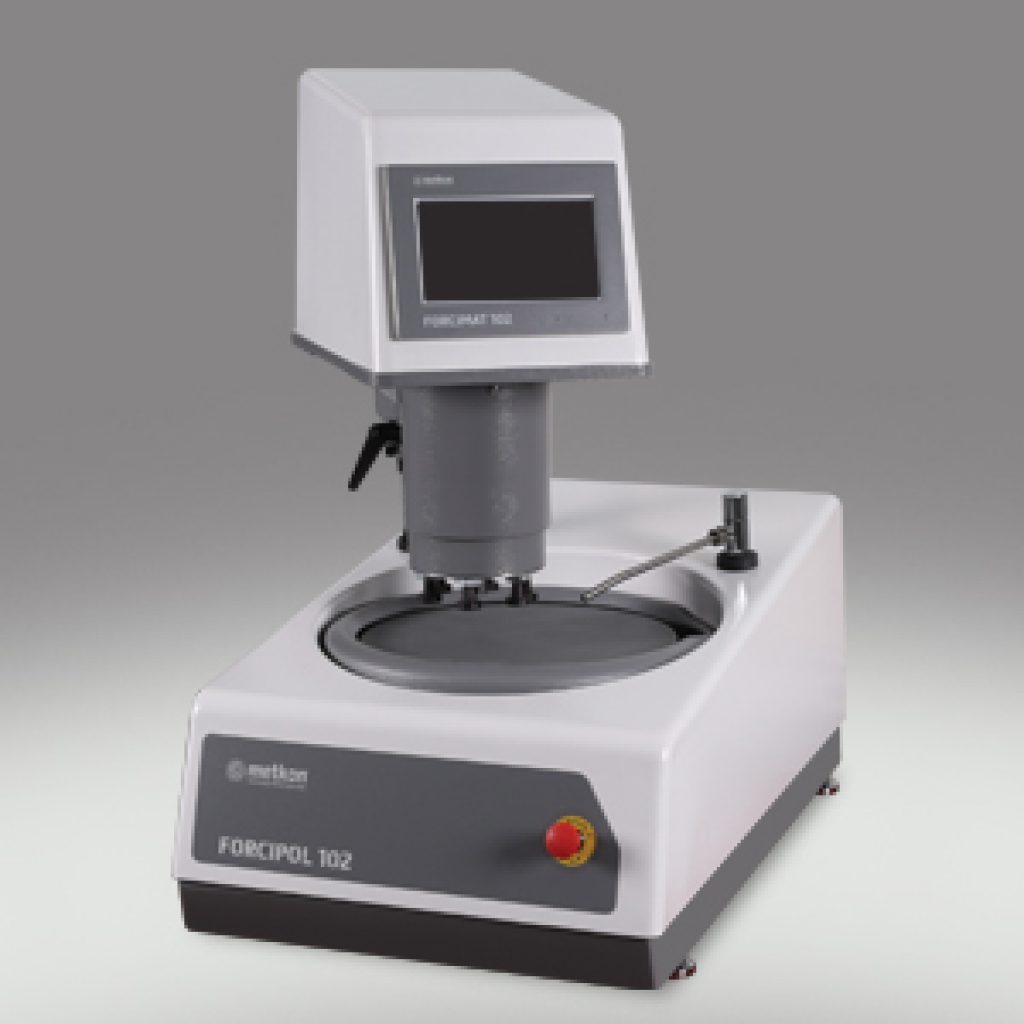

Metkon FORCIPOL 102 Metallographic Automatic Grinding and Polishing Machine
Features
Suitable for Ø200/Ø250/ Ø300 mm Wheels
Modular Configuration
Powerful Base Motor
Heavy Robust Construction to Eliminate Vibrations
Automatic Disc Cleaning and Drying Feature
Smart Water Saving Feature
Call Meyer Instruments, Inc. to see if a
Metallographic Automatic Grinding and Polishing Machine
is a good match for you.
(281) 579-0342
Description
Metallographic Automatic Grinding and Polishing Machine
FORCIPOL Series of instruments are available as Single wheel (FORCIPOL 102) and Dual wheel (FORCIPOL 202) Units. FORCIPOL instruments are designed to modular configuration for manual, semi-automatic and programmable automatic equipment. When only manual preparation is required, FORCIPOL Control Unit can be fitted on the FORCIPOL grinder / polisher. If automatic operation is required in the future, one of the FORCIMAT automatic heads can be installed at any time. Optional DOSIMAT peristaltic fluid dispensers are available to increase automation capability.
Both single and double wheel versions are suitable with Ø200, Ø250 and Ø300 mm wheels. The working wheel is powered by a high torque 1.0 HP electric motor with both clockwise and counterclockwise wheel rotation possibility. The state of the art frequency converter allows smooth speed variation (50-600 rpm) of the grinding wheel with soft start and soft stop. Both . This allows the setting of the optimum speed for each individual preparation process. It is perfect choice for laboratories preparing a wide range of different materials from very small to very large.
Technical Specifications
| ORDER NO | 36 21-200/250/300 |
| MODEL NO | FORCIPOL 102 |
| Number of Wheels | 1 |
| Wheel Diameter | Ø200/250/300 mm |
| Base Motor Power | 1 HP |
| Wheel Speed | 50-600 RPM |
| Wheel Rotation Direction | CW/CCW |
| Dimensions, WxDxH, (cm) | 45 x 74 x 34 |
| Weight, kgs | 40 |
Accessories
| Head Units | |
| 30 11 | FORCIPOL Control Unit |
| 30 12 | FORCIMAT 52 Automatic Specimen Mover (Individual Force) |
| 30 14 | FORCIMAT 102 Programmable Automatic Specimen Mover (Individual Force + Central Force) |
| Operational Accessories for FORCIPOL Grinder/Polishers | |
| 200 mm Application | |
| 31 01 | PVC Wheel, 200 mm |
| 31 02 | Aluminium Wheel, 200 mm |
| 31 55 | Splash Guard, 200 mm |
| 31 04 | Paper Ring, 200 mm |
| 31 05 | Cover |
| 31 13 | Special Plexiglas Protection Unit, to be used with FORCIPOL 102/TS |
| (To be ordered simultaneously together with the machine order) | |
| 250 mm Application | |
| 31 21 | PVC Wheel, 250 mm |
| 31 42 | Aluminium Wheel, 250 mm |
| 31 65 | Splash Guard, 250 mm |
| 31 24 | Paper Ring, 250 mm |
| 31 05 | Cover |
| 31 13 | Special Plexiglas Protection Unit, to be used with FORCIPOL 102/TS |
| (To be ordered simultaneously together with the machine order) | |
| 300 mm Application | |
| 31 31 | PVC Wheel, 300 mm |
| 31 52 | Aluminium Wheel, 300 mm |
| 31 75 | Splash Guard, 300 mm |
| 31 34 | Paper Ring, 300 mm |
| 31 05 | Cover |
| 31 13 | Special Plexiglas Protection Unit, to be used with FORCIPOL 102/TS |
| (To be ordered simultaneously together with the machine order) | |
| Accessories for FORCIPOL | |
| GR 1397-00 | Water Filtering and Pressure Regulator System for city water inlet. |
| Keeps the water pressure at the appropriate level and protects from sudden | |
| pressure spikes. Filtering out impurities in the water and prevents calcification. | |
| YM 3824-00 | Spare Siliphos Cartridge Filter |
| (for Water Filtering and Pressure Regulator System (GR 1397-00)) | |
| Spare Part Kit for FORCIPOL | |
| GR 1991 | Recommended Set of Spare Parts, FORCIPOL 102/202/TS |
| ENVIRO Recirculating Filtering System | |
| GR 0865 | ENVIRO Recirculating Filtering System, |
| Closed loop 1 micron filtering system with 20 lt. recirculating | |
| water tank, suitable to operate with line water on 80 micron | |
| filter as well. Requires 4 bar compressed air. | |
| Ready for operation with all Metkon Grinder/Polishers | |
| YM 6214-00 | Filter, 10 inches 1 Micron |
| Spare Part Kit for ENVIRO | |
| GR 1996 | Recommended Set of Spare Parts, ENVIRO |
Consumables
| Paper Grinding Discs, Plain Back (100 Pcs. Per Pack) | ||
| DEMPAX | 38-020-060 | Ø 200 mm Disc, 60 Grit (2 x 50 pcs.) |
| DEMPAX | 38-020-120 | Ø 200 mm Disc, 120 Grit |
| DEMPAX | 38-020-180 | Ø 200 mm Disc, 180 Grit |
| DEMPAX | 38-020-240 | Ø 200 mm Disc, 240 Grit |
| DEMPAX | 38-020-320 | Ø 200 mm Disc, 320 Grit |
| DEMPAX | 38-020-400 | Ø 200 mm Disc, 400 Grit |
| DEMPAX | 38-020-600 | Ø 200 mm Disc, 600 Grit |
| DEMPAX | 38-020-800 | Ø 200 mm Disc, 800 Grit |
| DEMPAX | 38-020-1000 | Ø 200 mm Disc, 1000 Grit |
| DEMPAX | 38-020-1200 | Ø 200 mm Disc, 1200 Grit |
| DEMPAX | 38-020-2500 | Ø 200 mm Disc, 2500 Grit |
| DEMPAX | 38-020-4000 | Ø 200 mm Disc, 4000 Grit |
| DEMPAX | 38-020-S | Ø 200 mm Mix Grinding Paper set (10 of each from 120 grit to 2500 grit) |
| DEMPAX | 38-040-060 | Ø 250 mm Disc, 60 Grit (2 x 50 pcs.) |
| DEMPAX | 38-040-120 | Ø 250 mm Disc, 120 Grit |
| DEMPAX | 38-040-180 | Ø 250 mm Disc, 180 Grit |
| DEMPAX | 38-040-240 | Ø 250 mm Disc, 240 Grit |
| DEMPAX | 38-040-320 | Ø 250 mm Disc, 320 Grit |
| DEMPAX | 38-040-400 | Ø 250 mm Disc, 400 Grit |
| DEMPAX | 38-040-600 | Ø 250 mm Disc, 600 Grit |
| DEMPAX | 38-040-800 | Ø 250 mm Disc, 800 Grit |
| DEMPAX | 38-040-1000 | Ø 250 mm Disc, 1000 Grit |
| DEMPAX | 38-040-1200 | Ø 250 mm Disc, 1200 Grit |
| DEMPAX | 38-040-2500 | Ø 250 mm Disc, 2500 Grit |
| DEMPAX | 38-040-4000 | Ø 250 mm Disc, 4000 Grit |
| DEMPAX | 38-040-S | Ø 250 mm Mix Grinding Paper set (10 of each from 120 grit to 2500 grit) |
| DEMPAX | 38-050-060 | Ø 300 mm Disc, 60 Grit (2 x 50 pcs.) |
| DEMPAX | 38-050-120 | Ø 300 mm Disc, 120 Grit |
| DEMPAX | 38-050-180 | Ø 300 mm Disc, 180 Grit |
| DEMPAX | 38-050-240 | Ø 300 mm Disc, 240 Grit |
| DEMPAX | 38-050-320 | Ø 300 mm Disc, 320 Grit |
| DEMPAX | 38-050-400 | Ø 300 mm Disc, 400 Grit |
| DEMPAX | 38-050-600 | Ø 300 mm Disc, 600 Grit |
| DEMPAX | 38-050-800 | Ø 300 mm Disc, 800 Grit |
| DEMPAX | 38-050-1000 | Ø 300 mm Disc, 1000 Grit |
| DEMPAX | 38-050-1200 | Ø 300 mm Disc, 1200 Grit |
| DEMPAX | 38-050-2500 | Ø 300 mm Disc, 2500 Grit |
| DEMPAX | 38-050-4000 | Ø 300 mm Disc, 4000 Grit |
| DEMPAX | 38-050-S | Ø 300 mm Mix Grinding Paper set (10 of each from 120 grit to 2500 grit) |
| Paper Grinding Discs, Foil Back, for CATCHY System (100 Pcs. Per Pack) | ||
| DEMPAX-F | 38-020-060F | Ø 200 mm Disc, 60 Grit (2 x 50 pcs.) |
| DEMPAX-F | 38-020-120F | Ø 200 mm Disc, 120 Grit |
| DEMPAX-F | 38-020-180F | Ø 200 mm Disc, 180 Grit |
| DEMPAX-F | 38-020-240F | Ø 200 mm Disc, 240 Grit |
| DEMPAX-F | 38-020-320F | Ø 200 mm Disc, 320 Grit |
| DEMPAX-F | 38-020-400F | Ø 200 mm Disc, 400 Grit |
| DEMPAX-F | 38-020-600F | Ø 200 mm Disc, 600 Grit |
| DEMPAX-F | 38-020-800F | Ø 200 mm Disc, 800 Grit |
| DEMPAX-F | 38-020-1000F | Ø 200 mm Disc, 1000 Grit |
| DEMPAX-F | 38-020-1200F | Ø 200 mm Disc, 1200 Grit |
| DEMPAX-F | 38-020-2500F | Ø 200 mm Disc, 2500 Grit |
| DEMPAX-F | 38-020-4000F | Ø 200 mm Disc, 4000 Grit |
| DEMPAX-F | 38-020-SF | Ø 200 mm Mix Grinding Paper set (10 of each from 120 grit to 2500 grit) |
| DEMPAX-F | 38-040-060F | Ø 250 mm Disc, 60 Grit (2 x 50 pcs.) |
| DEMPAX-F | 38-040-120F | Ø 250 mm Disc, 120 Grit |
| DEMPAX-F | 38-040-180F | Ø 250 mm Disc, 180 Grit |
| DEMPAX-F | 38-040-240F | Ø 250 mm Disc, 240 Grit |
| DEMPAX-F | 38-040-320F | Ø 250 mm Disc, 320 Grit |
| DEMPAX-F | 38-040-400F | Ø 250 mm Disc, 400 Grit |
| DEMPAX-F | 38-040-600F | Ø 250 mm Disc, 600 Grit |
| DEMPAX-F | 38-040-800F | Ø 250 mm Disc, 800 Grit |
| DEMPAX-F | 38-040-1000F | Ø 250 mm Disc, 1000 Grit |
| DEMPAX-F | 38-040-1200F | Ø 250 mm Disc, 1200 Grit |
| DEMPAX-F | 38-040-2500F | Ø 250 mm Disc, 2500 Grit |
| DEMPAX-F | 38-040-4000F | Ø 250 mm Disc, 4000 Grit |
| DEMPAX-F | 38-040-SF | Ø 250 mm Mix Grinding Paper set (10 of each from 120 grit to 2500 grit) |
| DEMPAX-F | 38-050-060F | Ø 300 mm Disc, 60 Grit (2 x 50 pcs.) |
| DEMPAX-F | 38-050-120F | Ø 300 mm Disc, 120 Grit |
| DEMPAX-F | 38-050-180F | Ø 300 mm Disc, 180 Grit |
| DEMPAX-F | 38-050-240F | Ø 300 mm Disc, 240 Grit |
| DEMPAX-F | 38-050-320F | Ø 300 mm Disc, 320 Grit |
| DEMPAX-F | 38-050-400F | Ø 300 mm Disc, 400 Grit |
| DEMPAX-F | 38-050-600F | Ø 300 mm Disc, 600 Grit |
| DEMPAX-F | 38-050-800F | Ø 300 mm Disc, 800 Grit |
| DEMPAX-F | 38-050-1000F | Ø 300 mm Disc, 1000 Grit |
| DEMPAX-F | 38-050-1200F | Ø 300 mm Disc, 1200 Grit |
| DEMPAX-F | 38-050-2500F | Ø 300 mm Disc, 2500 Grit |
| DEMPAX-F | 38-050-4000F | Ø 300 mm Disc, 4000 Grit |
| DEMPAX-F | 38-050-SF | Ø 300 mm Mix Grinding Paper set (10 of each from 120 grit to 2500 grit) |
| CATCHY System Accessories (1 Pc. Per Pack) | ||
| CFP | 39-083-200 | Ø 200 mm, Catchy Fix Plate (1 pcs) |
| CFP | 39-083-250 | Ø 250 mm, Catchy Fix Plate (1 pcs) |
| CFP | 39-083-300 | Ø 300 mm, Catchy Fix Plate (1 pcs) |
| MAGNETO Diamond Coarse Grinding Discs (1 Pc. Per Pack) | ||
| MAGNETO 125 | 38-020-125 | Ø200 MAGNETO Diamond Disc, 125 mic. |
| MAGNETO 125 | 38-040-125 | Ø250 MAGNETO Diamond Disc, 125 mic. |
| MAGNETO 125 | 38-050-125 | Ø300 MAGNETO Diamond Disc, 125 mic. |
| MAGNETO 75 | 38-020-075 | Ø200 MAGNETO Diamond Disc, 75 mic. |
| MAGNETO 75 | 38-040-075 | Ø250 MAGNETO Diamond Disc, 75 mic. |
| MAGNETO 75 | 38-050-075 | Ø300 MAGNETO Diamond Disc, 75 mic. |
| MAGNETO 54 | 38-020-054 | Ø200 MAGNETO Diamond Disc, 54 mic. |
| MAGNETO 54 | 38-040-054 | Ø250 MAGNETO Diamond Disc, 54 mic. |
| MAGNETO 54 | 38-050-054 | Ø300 MAGNETO Diamond Disc, 54 mic. |
| MAGNETO 18 | 38-020-018 | Ø200 MAGNETO Diamond Disc, 18 mic. |
| MAGNETO 18 | 38-040-018 | Ø250 MAGNETO Diamond Disc, 18 mic. |
| MAGNETO 18 | 38-050-018 | Ø300 MAGNETO Diamond Disc, 18 mic. |
| MAGNETO Diamond Coarse Grinding Discs (1 Pc. Per Pack) | ||
| MAGNETO 6 | 38-020-006 | ‘Ø200 MAGNETO Diamond Disc, 6 mic. |
| MAGNETO 6 | 38-040-006 | Ø250 MAGNETO Diamond Disc, 6 mic. |
| MAGNETO 6 | 38-050-006 | Ø300 MAGNETO Diamond Disc, 6 mic. |
| MAGNETO 3 | 38-020-003 | Ø200 MAGNETO Diamond Disc, 3 mic. |
| MAGNETO 3 | 38-040-003 | Ø250 MAGNETO Diamond Disc, 3 mic. |
| MAGNETO 3 | 38-050-003 | Ø300 MAGNETO Diamond Disc, 3 mic. |
| MAGNETO-S Silicon Carbide Grinding Discs (1 Pc. Per Pack) | ||
| MAGNETO-S-120 | 38-021-120 | Ø200 MAGNETO-S Silicon Carbide Grinding Disc, 120 Grit |
| MAGNETO-S-120 | 38-041-120 | Ø250 MAGNETO-S Silicon Carbide Grinding Disc, 120 Grit |
| MAGNETO-S-120 | 38-051-120 | Ø300 MAGNETO-S Silicon Carbide Grinding Disc, 120 Grit |
| MAGNETO-S-220 | 38-021-220 | Ø200 MAGNETO-S Silicon Carbide Grinding Disc, 220 Grit |
| MAGNETO-S-220 | 38-041-220 | Ø250 MAGNETO-S Silicon Carbide Grinding Disc, 220 Grit |
| MAGNETO-S-220 | 38-051-220 | Ø300 MAGNETO-S Silicon Carbide Grinding Disc, 220 Grit |
| MAGNETO-S-500 | 38-021-500 | Ø200 MAGNETO-S Silicon Carbide Grinding Disc, 500 Grit |
| MAGNETO-S-500 | 38-041-500 | Ø250 MAGNETO-S Silicon Carbide Grinding Disc, 500 Grit |
| MAGNETO-S-500 | 38-051-500 | Ø300 MAGNETO-S Silicon Carbide Grinding Disc, 500 Grit |
| MAGNETO-S-800 | 38-021-800 | Ø200 MAGNETO-S Silicon Carbide Grinding Disc, 800 Grit |
| MAGNETO-S-800 | 38-041-800 | Ø250 MAGNETO-S Silicon Carbide Grinding Disc, 800 Grit |
| MAGNETO-S-800 | 38-051-800 | Ø300 MAGNETO-S Silicon Carbide Grinding Disc, 800 Grit |
| MAGNETO-S-1200 | 38-021-1200 | Ø200 MAGNETO-S Silicon Carbide Grinding Disc, 1200 Grit |
| MAGNETO-S-1200 | 38-041-1200 | Ø250 MAGNETO-S Silicon Carbide Grinding Disc, 1200 Grit |
| MAGNETO-S-1200 | 38-051-1200 | Ø300 MAGNETO-S Silicon Carbide Grinding Disc, 1200 Grit |
| Magnetic System Accessories (1 Pc. Per Pack) | ||
| SMF | 39-003-200 | Ø 200 mm, Special Magnetic Foil |
| SMF | 39-003-250 | Ø 250 mm, Special Magnetic Foil |
| SMF | 39-003-300 | Ø 300 mm, Special Magnetic Foil |
| TMP | 39-093-200 | Ø 200 mm, Thin Metal Plate(5 pcs) |
| TMP | 39-093-250 | Ø 250 mm, Thin Metal Plate(5 pcs) |
| TMP | 39-093-300 | Ø 300 mm, Thin Metal Plate(5 pcs) |
| Polishing Cloths (Self-adhesive, 10 Pcs. Per Pack) | ||
| METAPO-P | 39-013-200 | Ø 200 mm, for 6 micron diamonds |
| METAPO-B | 39-033-200 | Ø 200 mm, for 3-1 micron diamonds |
| METAPO-V | 39-043-200 | Ø 200 mm, for 1-0,1 micron diamonds or alumina |
| FEDO-6J | 39-015-200 | Ø 200 mm, for 6 micron diamonds |
| FEDO-3 | 39-025-200 | Ø 200 mm, for 3 micron diamonds |
| FEDO-1S | 39-066-200 | Ø 200 mm, for 1 micron diamonds |
| FEDO-1N | 39-055-200 | Ø 200 mm, for 0,25 micron diamonds |
| ALSO | 39-075-200 | Ø 200 mm, for 0,25 mic. diamonds or alumina |
| WOOL | 39-095-200 | Ø 200 mm, %100 wool cloth for 6-3 micron diamonds or alumina |
| COLLO | 39-085-200 | Ø 200 mm, for colloidal silica |
| PETRI | 39-090-200 | Ø 200 mm, for petrography |
| NOWO | 39-005-200 | Ø 200 mm, for 9-1 micron diamonds |
| MIX | 39-200-SPC | Ø 200 mm, (1 of each METAPO-P, METAPO-B, FEDO-3, FEDO-1S, FEDO-1N) |
| METAPO-P | 39-013-250 | Ø 250 mm, for 6 micron diamonds |
| METAPO-B | 39-033-250 | Ø 250 mm, for 3-1 micron diamonds |
| METAPO-V | 39-043-250 | Ø 250 mm, for 1-0,1 micron diamonds or alumina |
| FEDO-6J | 39-015-250 | Ø 250 mm, for 6 micron diamonds |
| FEDO-3 | 39-025-250 | Ø 250 mm, for 3 micron diamonds |
| FEDO-1S | 39-066-250 | Ø 250 mm, for 1 micron diamonds |
| FEDO-1N | 39-055-250 | Ø 250 mm, for 0,25 micron diamonds |
| ALSO | 39-075-250 | Ø 250 mm, for 0,25 mic. diamonds or alumina |
| WOOL | 39-095-250 | Ø 250 mm, %100 wool cloth for 6-3 micron diamonds or alumina |
| COLLO | 39-085-250 | Ø 250 mm, for colloidal silica |
| PETRI | 39-090-250 | Ø 250 mm, for petrography |
| NOWO | 39-005-250 | Ø 250 mm, for 9-1 micron diamonds |
| MIX | 39-250-SPC | Ø 250 mm, (1 of each METAPO-P, METAPO-B, FEDO-3, FEDO-1S, FEDO-1N) |
| METAPO-P | 39-013-300 | Ø 300 mm, for 6 micron diamonds |
| METAPO-B | 39-033-300 | Ø 300 mm, for 3-1 micron diamonds |
| METAPO-V | 39-043-300 | Ø 300 mm, for 1-0,1 micron diamonds or alumina |
| FEDO-6J | 39-015-300 | Ø 300 mm, for 6 micron diamonds |
| FEDO-3 | 39-025-300 | Ø 300 mm, for 3 micron diamonds |
| FEDO-1S | 39-066-300 | Ø 300 mm, for 1 micron diamonds |
| FEDO-1N | 39-055-300 | Ø 300 mm, for 0,25 micron diamonds |
| ALSO | 39-075-300 | Ø 300 mm, for 0,25 mic. diamonds or alumina |
| WOOL | 39-095-300 | Ø 300 mm, %100 wool cloth for 6-3 micron diamonds or alumina |
| COLLO | 39-085-300 | Ø 300 mm, for colloidal silica |
| PETRI | 39-090-300 | Ø 300 mm, for petrography |
| NOWO | 39-005-300 | Ø 300 mm, for 9-1 micron diamonds |
| MIX | 39-300-SPC | Ø 300 mm, (1 of each METAPO-P, METAPO-B, FEDO-3, FEDO-1S, FEDO-1N) |
| Diamond Pastes, Monocrystalline | ||
| DIAPAT-M | 39-301-M | Diamond Paste, 0.25 Mic., 10gr. syringe |
| DIAPAT-M | 39-311-M | Diamond Paste, 1 Mic., 10gr. syringe |
| DIAPAT-M | 39-321-M | Diamond Paste, 3 Mic., 10gr. syringe |
| DIAPAT-M | 39-331-M | Diamond Paste, 6 Mic., 10gr. syringe |
| DIAPAT-M | 39-341-M | Diamond Paste, 9 Mic., 10gr. syringe |
| Diamond Pastes, Polycrystalline | ||
| DIAPAT-P | 39-301-P | Diamond Paste, 0.25 Mic., 10gr. syringe |
| DIAPAT-P | 39-311-P | Diamond Paste, 1 Mic., 10gr. syringe |
| DIAPAT-P | 39-321-P | Diamond Paste, 3 Mic., 10gr. syringe |
| DIAPAT-P | 39-331-P | Diamond Paste, 6 Mic., 10gr. syringe |
| DIAPAT-P | 39-341-P | Diamond Paste, 9 Mic., 10gr. syringe |
| Diamond Suspensions, Monocrystalline | ||
| DIAPAT-M | 39-400-M | Diamond Suspension 0.25Mic. 250 ml, bottle with sprayer |
| DIAPAT-M | 39-410-M | Diamond Suspension1 Mic. 250 ml, bottle with sprayer |
| DIAPAT-M | 39-420-M | Diamond Suspension 3 Mic. 250 ml, bottle with sprayer |
| DIAPAT-M | 39-430-M | Diamond Suspension 6 Mic. 250 ml, bottle with sprayer |
| DIAPAT-M | 39-440-M | Diamond Suspension 9 Mic. 250 ml, bottle with sprayer |
| DIAPAT-M | 39-411-M | Diamond Suspension1 Mic. 1 lt bottle |
| DIAPAT-M | 39-421-M | Diamond Suspension 3 Mic. 1 lt bottle |
| DIAPAT-M | 39-431-M | Diamond Suspension 6 Mic. 1 lt bottle |
| DIAPAT-M | 39-415-M | Diamond Suspension1 Mic. 5 lt bottle |
| DIAPAT-M | 39-425-M | Diamond Suspension 3 Mic. 5 lt bottle |
| DIAPAT-M | 39-435-M | Diamond Suspension 6 Mic. 5 lt bottle |
| Diamond Suspensions, Polycrystalline | ||
| DIAPAT-P | 39-400-P | Diamond Suspension 0.25Mic. 250 ml, bottle with sprayer |
| DIAPAT-P | 39-410-P | Diamond Suspension1 Mic. 250 ml, bottle with sprayer |
| DIAPAT-P | 39-420-P | Diamond Suspension 3 Mic. 250 ml, bottle with sprayer |
| DIAPAT-P | 39-430-P | Diamond Suspension 6 Mic. 250 ml, bottle with sprayer |
| DIAPAT-P | 39-440-P | Diamond Suspension 9 Mic. 250 ml, bottle with sprayer |
| Diamond Two in One Products, Monocrystalline | ||
| DUOPAT-M | 39-510-M | A perfect mixture of 1 mic. Diamond suspension & Diamond Lubricant |
| 500 ml, bottle with sprayer | ||
| DUOPAT-M | 39-520-M | A perfect mixture of 3 mic. Diamond suspension & Diamond Lubricant |
| 500 ml, bottle with sprayer | ||
| DUOPAT-M | 39-530-M | A perfect mixture of 6 mic. Diamond suspension & Diamond Lubricant |
| 500 ml, bottle with sprayer | ||
| Diamond Lubricant | ||
| DIAPAT | 39-502 | Diamond Lubricant, Water-based, 1.0 lt, bottle |
| Alumina Suspensions | ||
| ALU-MIK | 39-200 | Alumina Suspension 0.05 Mic. 1.0 lt, bottle |
| ALU-MIK | 39-210 | Alumina Suspension 0.3 Mic. 1.0 lt, bottle |
| ALU-MIK | 39-220 | Alumina Suspension 1.0 Mic. 1.0 lt, bottle |
| Alumina Powder | ||
| ALU-MIK | 39-100 | Alumina Powder 0.05 Mic. 500gr. |
| ALU-MIK | 39-110 | Alumina Powder 0.3 Mic. 500gr. |
| ALU-MIK | 39-120 | Alumina Powder 1.0 Mic. 500gr. |
| Colloidal Silica | ||
| COL-K(NC) | 39-600 | Colloidal Silica (1 lt), bottle |
