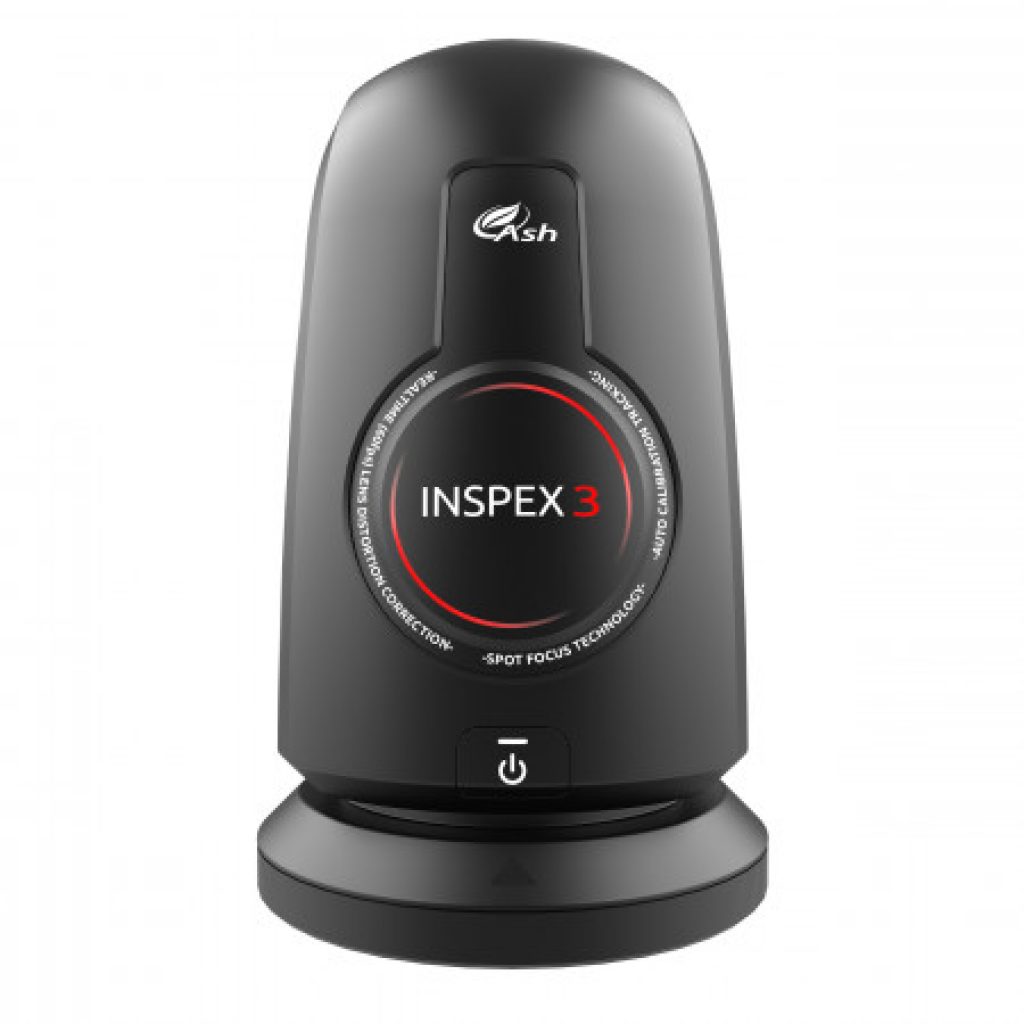

Ash INSPEX 3 Digital Inspection Macroscope

Inspex 3. Simply Smarter.

The Inspex 3 is a full HD (1080p) digital  inspection macroscope that operates without a PC. The Inspex 3 platform has a powerful image processing and control engine that delivers superb full live video image quality at 60 frames per second. This enables the system to be utilized as a solution in a broad range of quality control, testing, assembly, inspection and documentation tasks. It is ideal for production and quality control environments. The Inspex 3 provides efficiency, control and traceability of inspection. The 30 to 1 zoom range has no equal!

Several new key features deliver faster, more reliable results:

• 3 New Focus Modes:
  • Superfast Auto-Focus instantly focuses on the part being inspected.
  • Rocker Focus toggles between two focus points.
  • SpotFocus™ instantly focuses with the click of the mouse.
• RTLDC™ & AshCal™: The patent-pending Real Time Lens Distortion Correction and AshCal factory precalibration ensure that every image is ready for the most exacting measurements.
• AshTruColour™ ensures that the images are crisp, brilliant, and reflect the true color of the sample.
• Inspex 3 has No Video Latency allowing operators to inspect, assemble, rework, or modify any part without a delay in the video display.

Fully-integrated and complete solution: Inspex 3 is complete and ready to go right out of the box. Just add an HD monitor.

New KP3 key pad allows rapid camera and illumination control.

The Inspex 3 smart inspection macroscope is everything you need in a robust, dependable inspection instrument: easy to use, measurement tools, real-time video, preset configurations, pre-calibrated, and so much more!

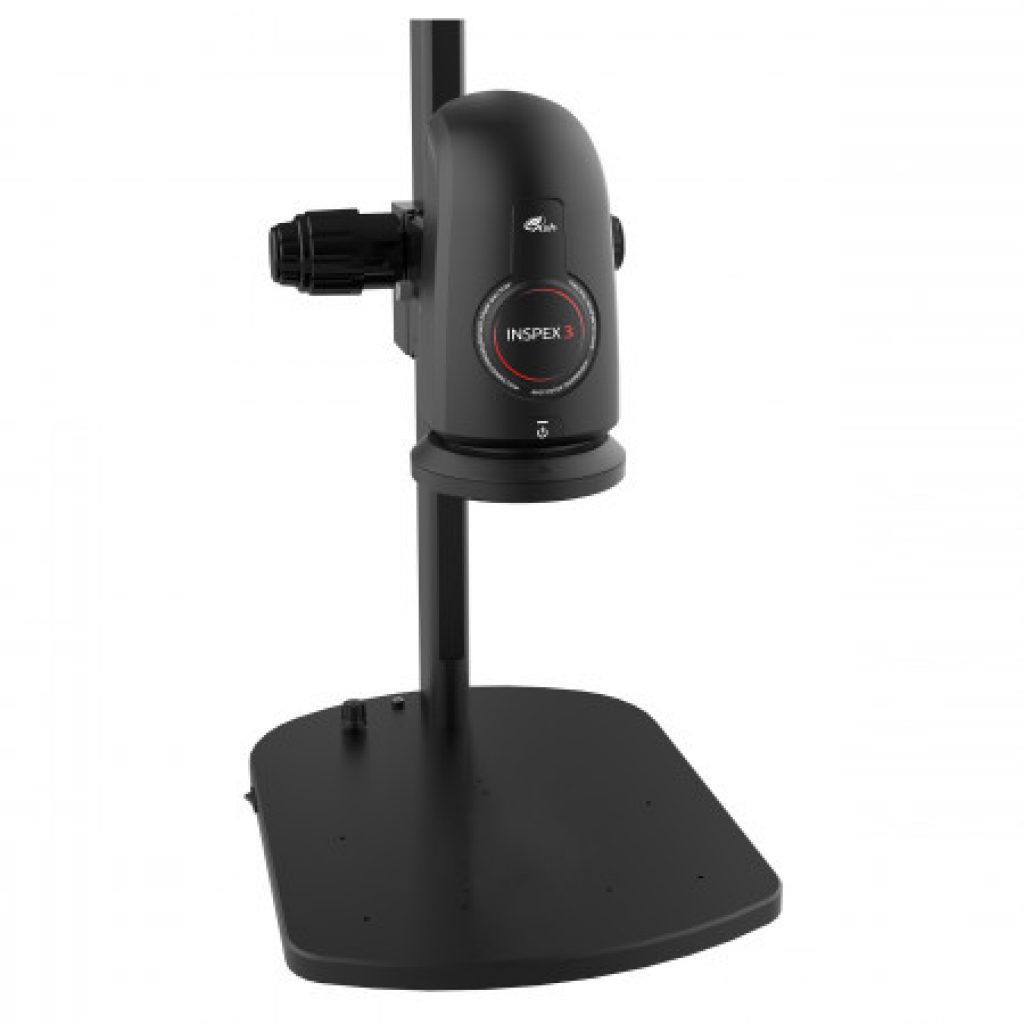

Here we offer the Inspex 3 as a complete kit featuring the Inspex 3, a track stand (no illumination), and a keypad at no additional cost!

Key Features

AshCal™ Calibration Tracking continually adjusts and maintains calibration for accurate measurements across the entire zoom range.
On-Screen Preset Buttons allow quick access to pre-configured part-specific systems settings.
2-D Line Measurement enables on-screen overlays rapid go/no-go inspection of samples.
User access control manages system-related operation to standardize inspection and eliminate operational error.
One click Auto Focus provides instant indication that the sample is in focus.

Specifications

1080p Digital inspection station with 5D lens
200mm working distance (with 5D lens, included)
Magnification range: 2.1x – 131.6x (on 24″ monitor)
Maximum magnification: 65.6x optical, 131.6x digital
Camera resolution: 1920 x 1080, 60fps
HDMI output, four USB 2.0 ports, mini USB, three general purpose I/O ports, DC power jack
Internal image storage, removable USB image storage, USB on the go (PC Connectivity)
Integrated LED ring light with intensity and quadrant control; LED Lamp life approx. 40,000 hours
Wireless keyboard and wireless mouse included
HDMI-to-HDMI cable, mini USB cable and USB memory stick included
Grounding cable included
Optional objectives: +10D, +25D, 2x Plan, 0.3x, 1x Plan, 0.5x Plan APO, 0.5xwd
Track stand included.
Keypad included.
REQUIRES MONITOR. Monitor not included.
Shipping weight 25lbs.

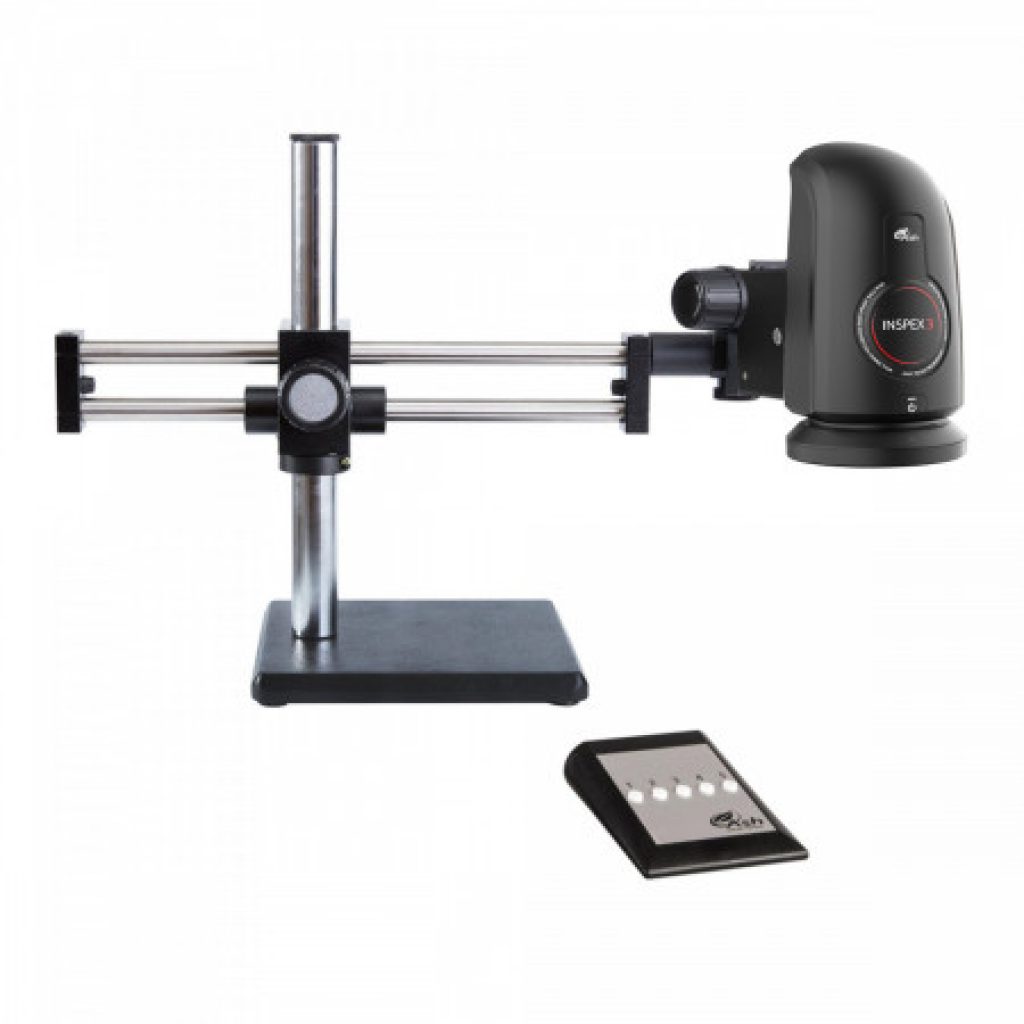

Here we offer the INSPEX 3 as a complete kit featuring the Inspex 3, a ball bearing boom stand, and a keypad at no additional cost!

Specifications

• 1080p Digital inspection station with 5D lens
• 195mm working distance (with 5D lens, included)
• Magnification range: 2.1x – 131.6x (on 24″ monitor)
• Maximum magnification: 65.6x optical, 131.6x digital
• Camera resolution: 1920 x 1080, 60fps
• HDMI output, four USB 2.0 ports, mini USB, three general purpose I/O ports, DC power jack
• Internal image storage, removable USB image storage, USB on the go (PC Connectivity)
• Integrated LED ring light with intensity and quadrant control; LED Lamp life approx. 40,000 hours
• Wireless keyboard and wireless mouse included
• HDMI-to-HDMI cable, mini USB cable and USB memory stick included
• Grounding cable included
• Optional objectives: +10D, +25D, 2x Plan, 0.3x, 1x Plan, 0.5x Plan APO, 0.5xwd
• Ball bearing boom stand included.
• Keypad included.
• REQUIRES MONITOR. Monitor not included.
• Shipping weight 55lbs.

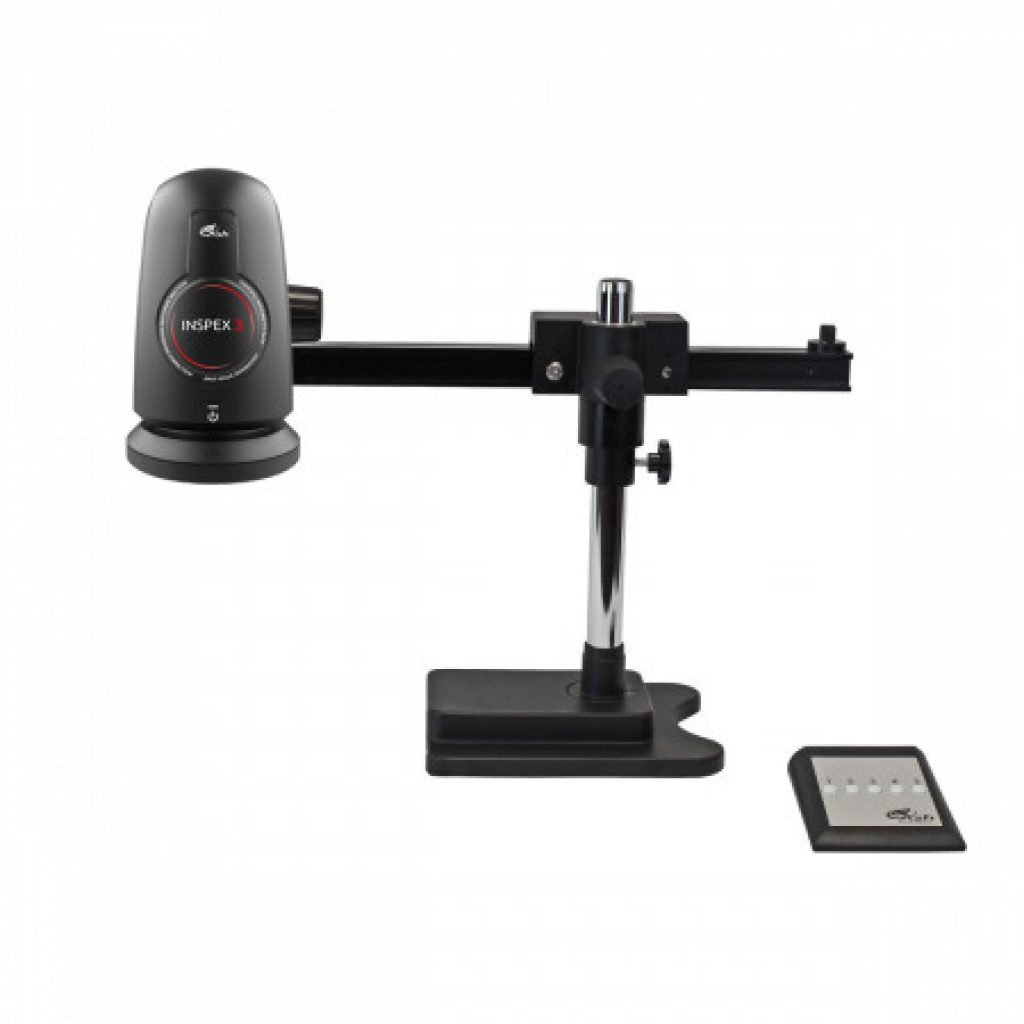

Here we offer the INSPEX 3 as a complete kit featuring the Inspex 3, a gliding arm boom stand, and a keypad at no additional cost!

Key Features

• AshCal™ Calibration Tracking continually adjusts and maintains calibration for accurate measurements across the entire zoom range.
• On-Screen Preset Buttons allow quick access to pre-configured part-specific systems settings.
• 2-D Line Measurement enables on-screen overlays rapid go/no-go inspection of samples.
• User access control manages system-related operation to standardize inspection and eliminate operational error.
• One click Auto Focus provides instant indication that the sample is in focus.

Specifications

• 1080p Digital inspection station with 5D lens
• 195mm working distance (with 5D lens, included)
• Magnification range: 2.1x – 131.6x (on 24″ monitor)
• Maximum magnification: 65.6x optical, 131.6x digital
• Camera resolution: 1920 x 1080, 60fps
• HDMI output, four USB 2.0 ports, mini USB, three general purpose I/O ports, DC power jack
• Internal image storage, removable USB image storage, USB on the go (PC Connectivity)
• Integrated LED ring light with intensity and quadrant control; LED Lamp life approx. 40,000 hours
• Wireless keyboard and wireless mouse included
• HDMI-to-HDMI cable, mini USB cable and USB memory stick included
• Grounding cable included
• Optional objectives: +10D, +25D, 2x Plan, 0.3x, 1x Plan, 0.5x Plan APO, 0.5xwd
• Gliding arm boom stand included.
• Keypad included.
• REQUIRES MONITOR. Monitor not included.
• Shipping weight 45
• lbs.
