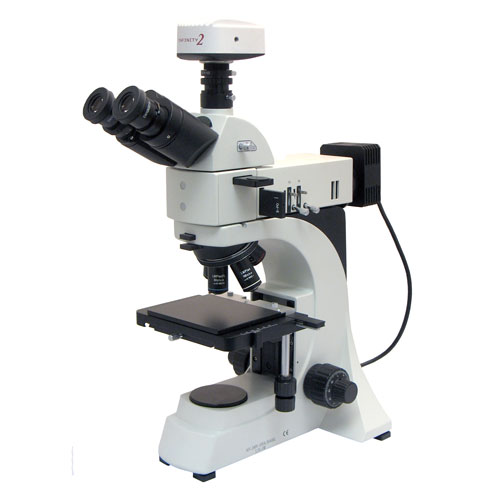

14250-EXAMET-4-Tri

Unitron EXAMET-4 Series

In Stock

UNITRON’s newly designed EXAMET-4 Series is a new industrial metallurgical microscope designed for production lines, material science applications, metal manufacturing, metallurgy, and a variety of other samples. The advanced Semi-Apochromatic M Infinity Plan Optics, ergonomic design, and digital capabilities make the EXAMET-4 Series an outstanding and cost effective choice for today’s modern metallurgist. The EXAMET-4 Series is available with either reflected illumination or with reflected and transmitted illumination.

Speak with one of our specialists today to see if the EXAMET-4 is right for you!

(281) 579-0342

Unitron EXAMET-4 Series

Standard Specifications

  • Trinocular viewing head with a 20/80 split (light distribution 100% binocular, binocular /trinocular 20%/80%)
  • Viewing heads are inclined 30° and rotatable 360°
  • Interpupilary distance adjustment range of 54mm – 75mm
  • High eyepoint widefield plan 10x eyepieces with a 22mm field of view
  • Reversed quintuple nosepiece
  • Long working distance M Infinity Plan Achromat 5x, 10x and 20x objectives
  • Long working distance M Infinity Semi-Plan Apochromat 50x objective
  • Low position coaxial focusing system with tension adjustment
  • Mechanical Stage: 175mm x 145mm with a 76mm (X) x 42mm (Y) movement range
  • On reflected only models specimens of a height of up to 50mm can be observed
  • On reflected/transmitted models specimens of a height of up to 30mm can be observed
  • 3 watt variable LED reflected illuminator with field and aperture diaphragm

Optional Accessories

M Infinity Semi-Plan Apochromat 100xR objective, Plan 15x/16mm and WF20x/12mm eyepieces, Polarizer’s and Analyzers, Yellow, blue, green, neutral density filters, reticles & micrometers, digital cameras and c-mount adapters
