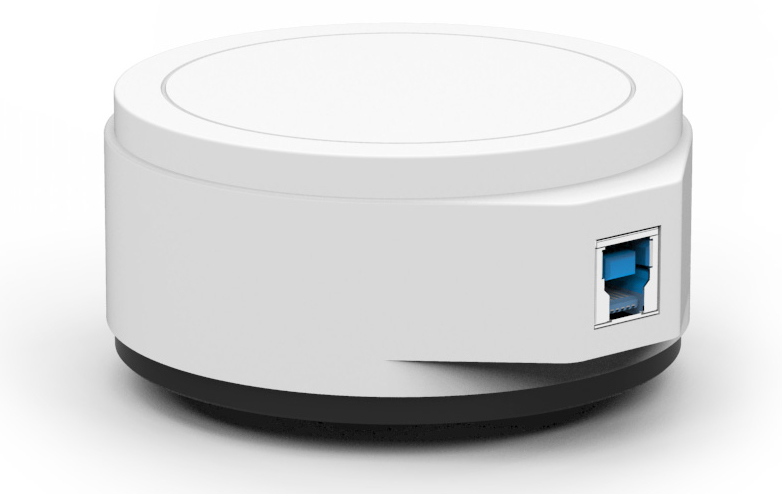

Labomed Atlas Camera


The Atlas camera is a 16 Megapixel digital solution that boasts one of the fastest frame rates per resolution in its class, a high definition image, and unparalleled accuracy in color reproduction. Total vertical integration of camera development means better image quality, easy to navigate software, and better end-to-end software and driver support.

Labomed Atlas Camera

Streamline Routine Imaging and Documentation Tasks


PixelPro Image Capture Software makes still and video capturing simple. A modern and easy to navigate user interface allows both teachers and students to quickly identify critical control functions, and to archive and annotate images with complete ease.

Package Contents

– Atlas Camera

– PixelPro Image Capture Software

– USB 3.0 Cable (6ft)

Warranty Information

– 2 Year Camera

Speak with one of our specialists today to see if the Atlas is right for you!

(281) 579-0342

Labomed Atlas
Sensor 1/2.33” 16.0 MP Color CMOS
Active area 5.70mm x 4.28mm
Sensor resolution Dynamic 2304×1728 / 4608×3456 pixels
Static 4608×3456 pixels
Pixel Size 1.335μm x 1.335μm
A/D conversion 24 Bit RGB
Pixel clock 48 MHz
Dynamic range 59.5 dB; 1800-8000˚K
Exposure 1ms-1s auto/manual, white balancing, electronic rolling shutter
Frame rate 25 fps (@2304×1728)
5 fps (@4608×3456)
Image processing High speed FPGA, progressive scan, advanced noise reduction
Interface USB 3.0
Optical connection C- Mount
Voltage supply 5v2a (USB)
Power indication Green LED indicating power on and ready for capture
Ambient conditions Operating Temperature: 0-60˚C
Humidity: 45-85%
Software Requirments Microsoft Windows (XP and later versions) / Linux / Mac
