HDS 5800

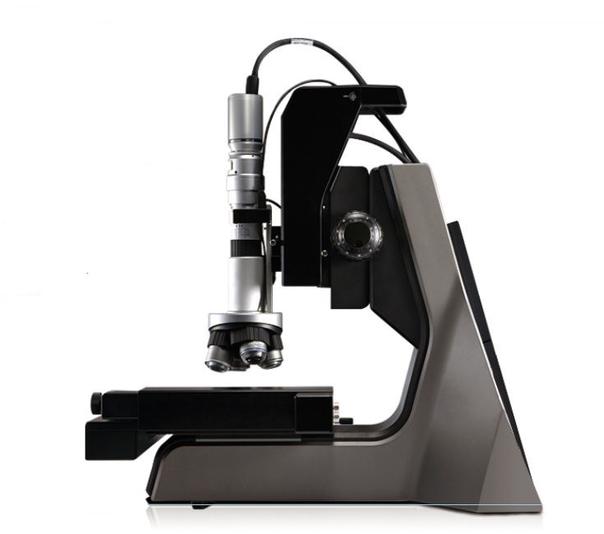

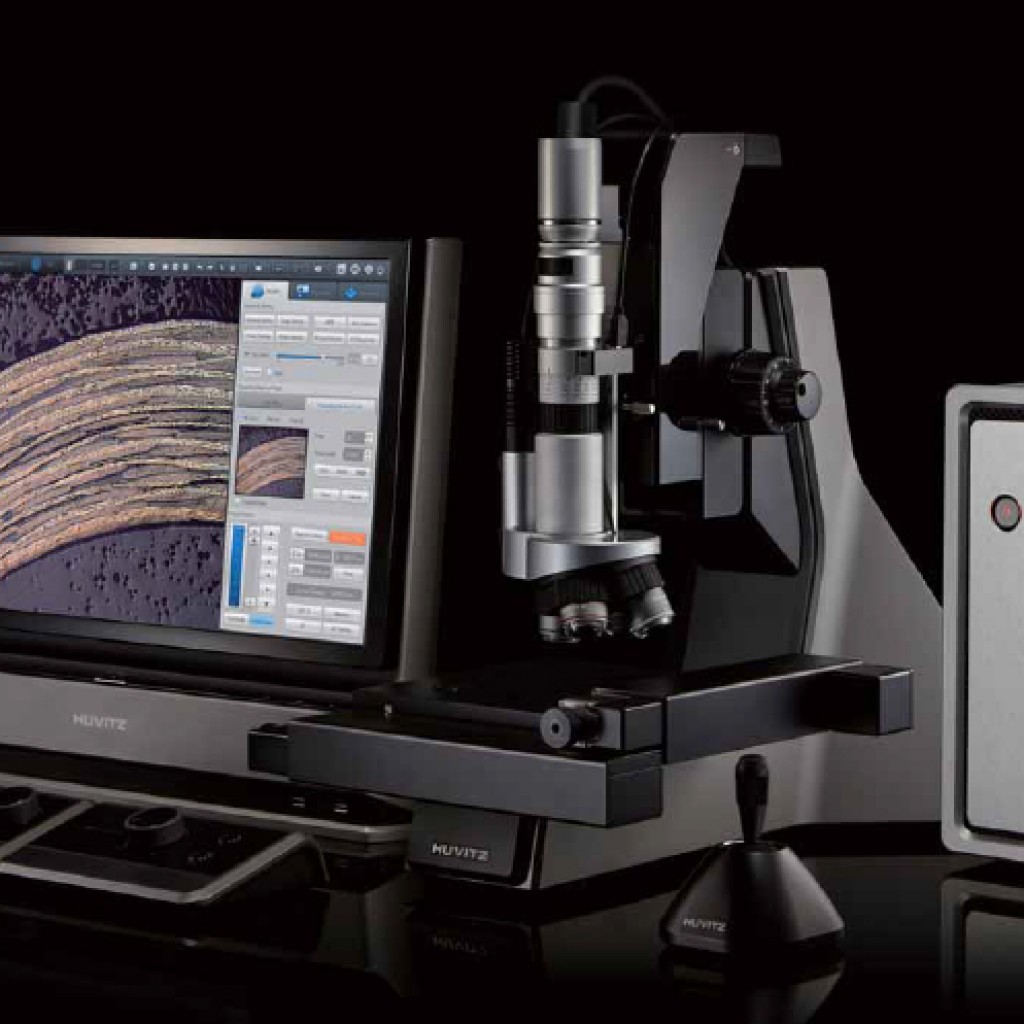

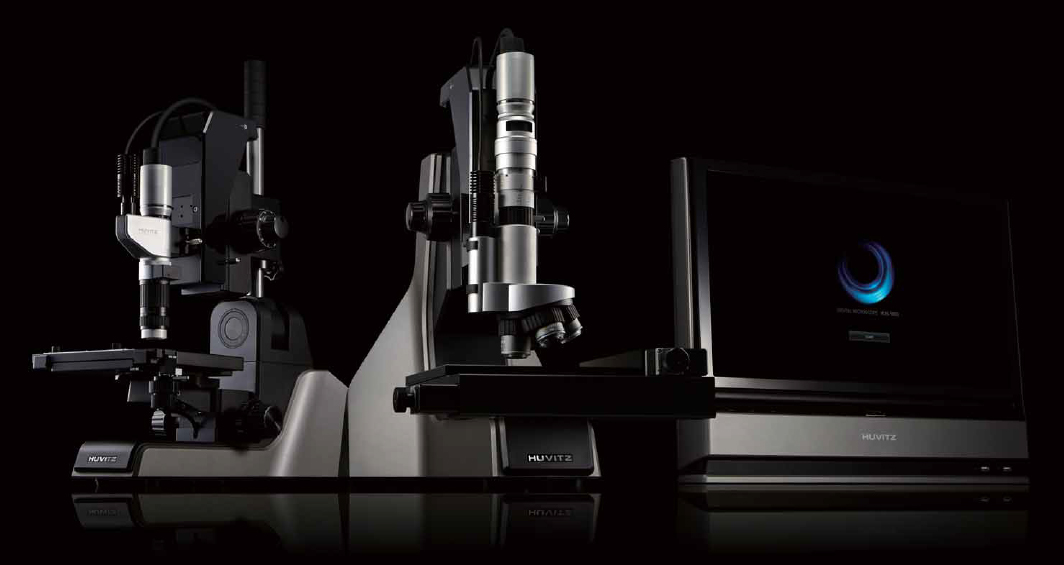

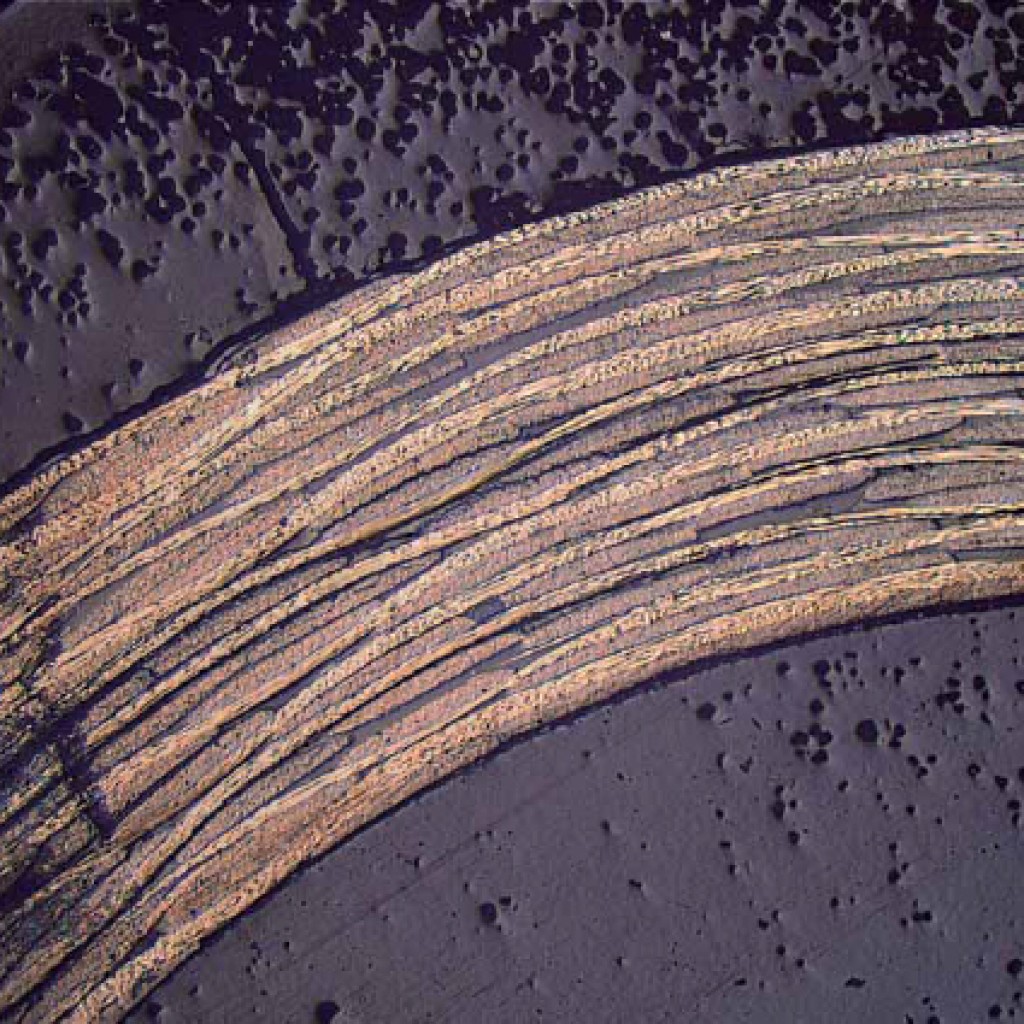

A high magnification microscope system with complete motorization including simultaneous brightfield & darkfield lighting, and exceptional 3D extended depth of field (EDF) imaging capabilities.

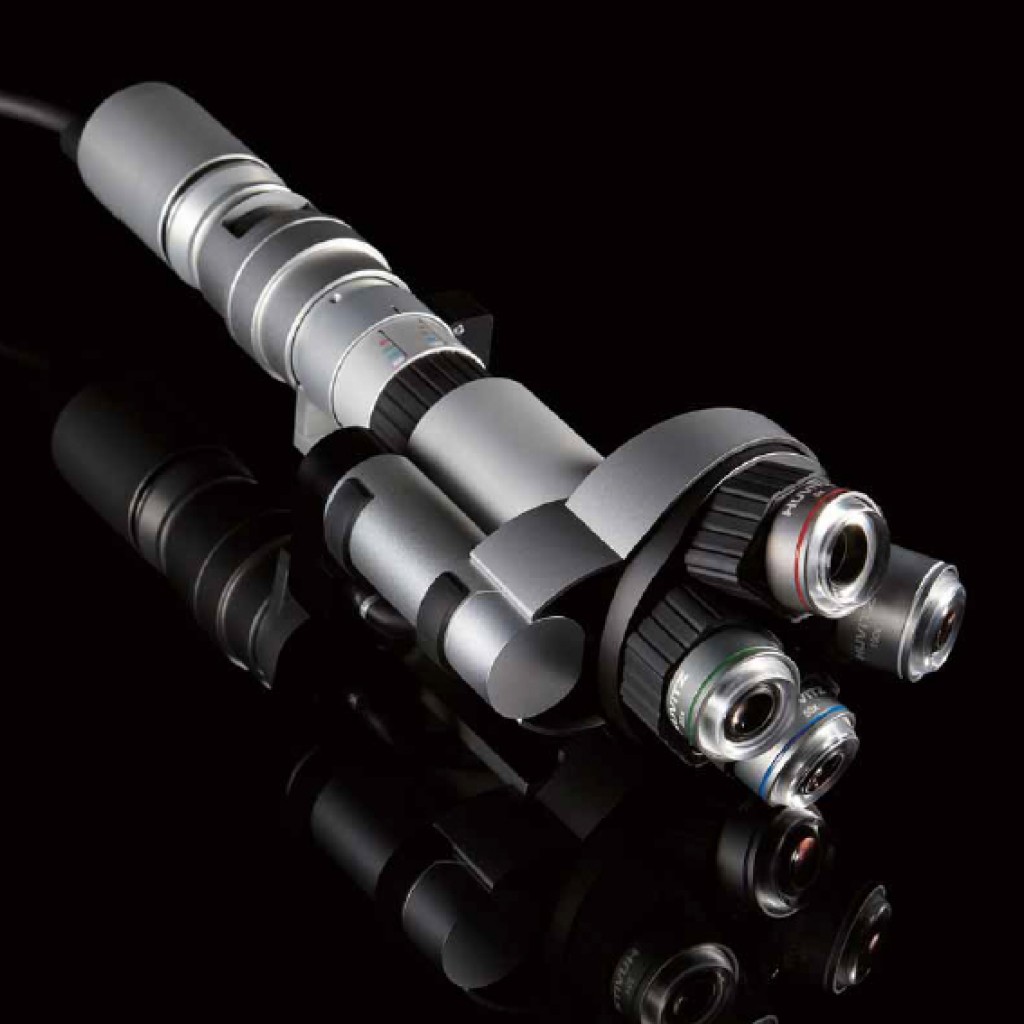

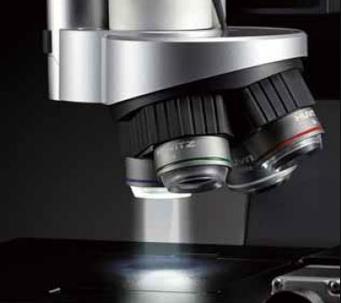

The world’s first digital microscope to offer a 50x to 5,800x magnification range with a single zoom lens! Whenever the need arises for structural inspection or metallurgical evaluation, the addition of the revolving turret with four high resolution objective lenses extends this instrument’s capability beyond what is currently available in the market. A wide variety of applications can be easily met: the single low/high magnification zoom lens allows workers in the semiconductor, automotive, chemical, materials, electro-transfer and medical industries to perform quick observation and inspection of their samples.
Huvitz HDS 5800 Main Features
Quick and Easy Measurement Tools and Procedures

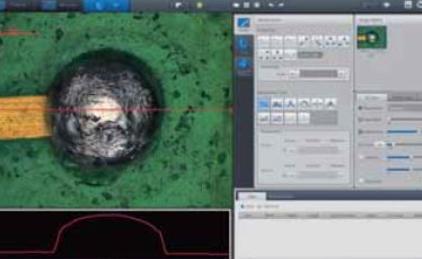

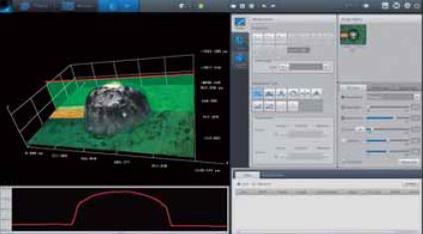

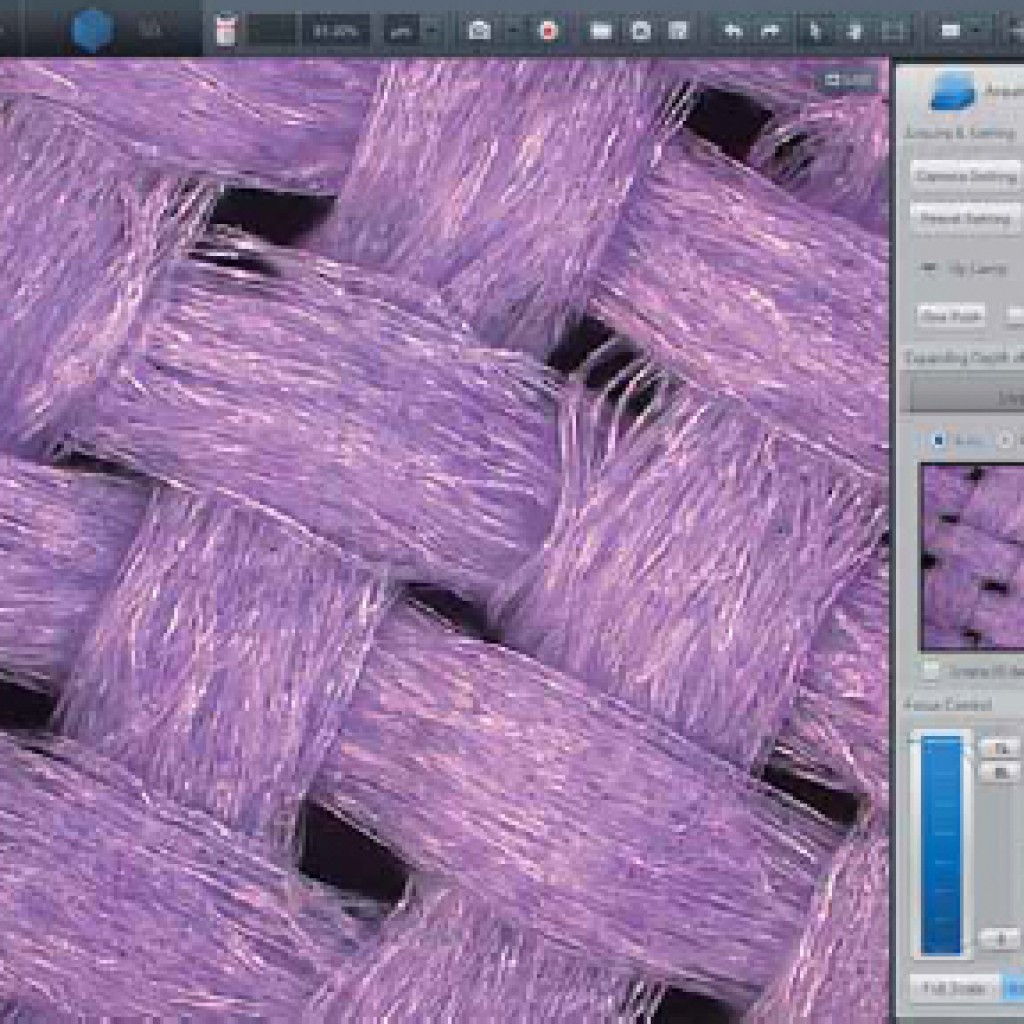

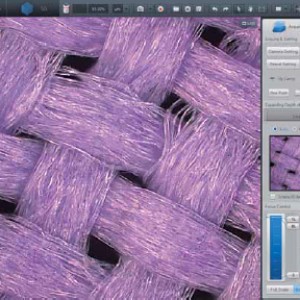

The Huvitz HDS systems allow users to complete all measurements directly on the screen in real time on a live image. The process requires only a couple of mouse clicks, and is significantly easier and faster than having to capture an image prior to measuring. The software provides a variety of 2D measurement tools such as line, circle, arc, angle, polyline, polygon, vertical, width, parallel, and count. 3D measurements (including volume, area, capacity, cross-sections, right angles, variable angles, and length/distance) are standard features of the HDS-5800RZ.
In addition to the measurement features, all of the data and analysis in the HDS systems can be quickly sent to a report generator. Reports are completed using either standard templates or customized templates that are created by the user. These reports can include captured date, time, lens, magnification, and the various measurement data.
High Speed Digital Camera
The Huvitz HDS systems utilize a high speed camera that runs on a 1/1.8 inch (8.50mm x 6.80mm) SONY ICX274AL sensor that generates up to 20 frames per second. This rapid frame display speeds image data collection. Combined with immediate image processing, this camera contributes to the efficient completion of inspection projects, such as High Dynamic Range (HDR), Extended Depth of Focus (EDF) and Live Tiling.
Motorized Stage and Z-Axis

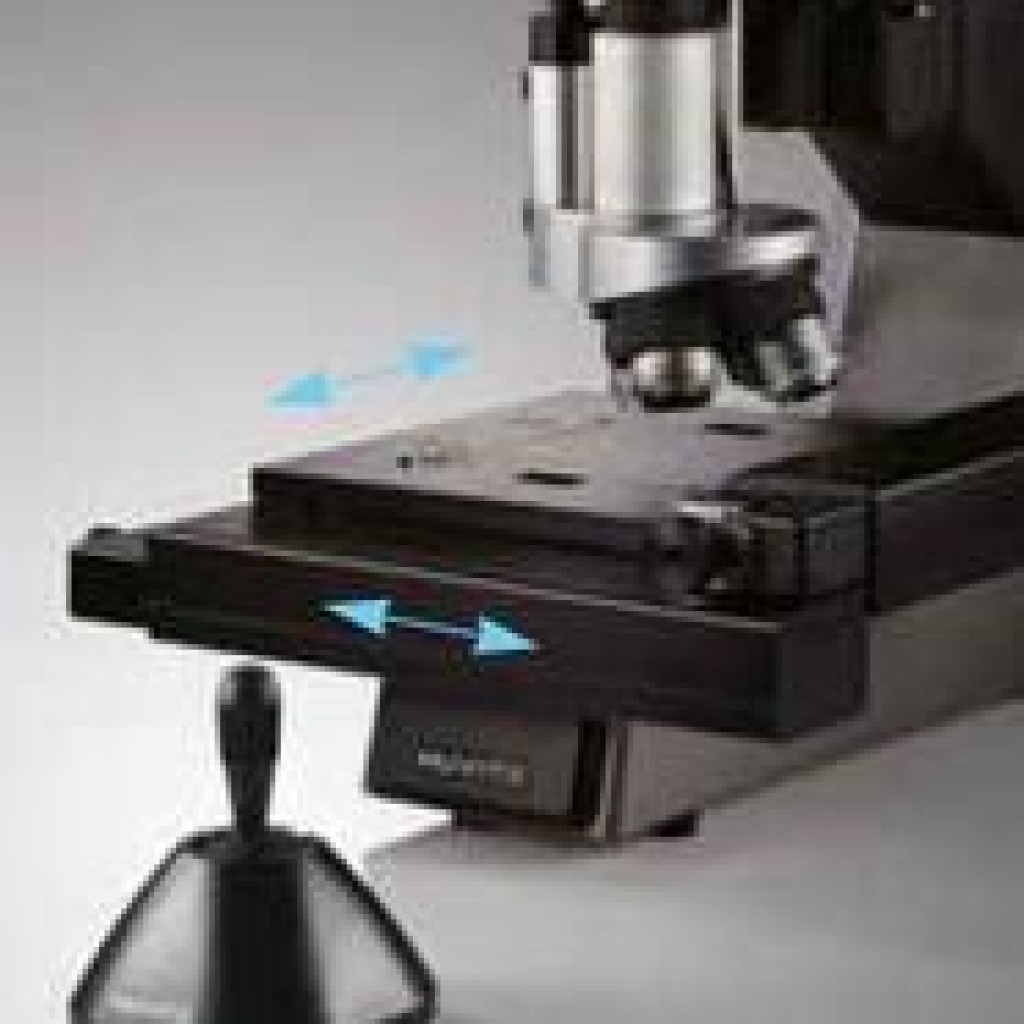

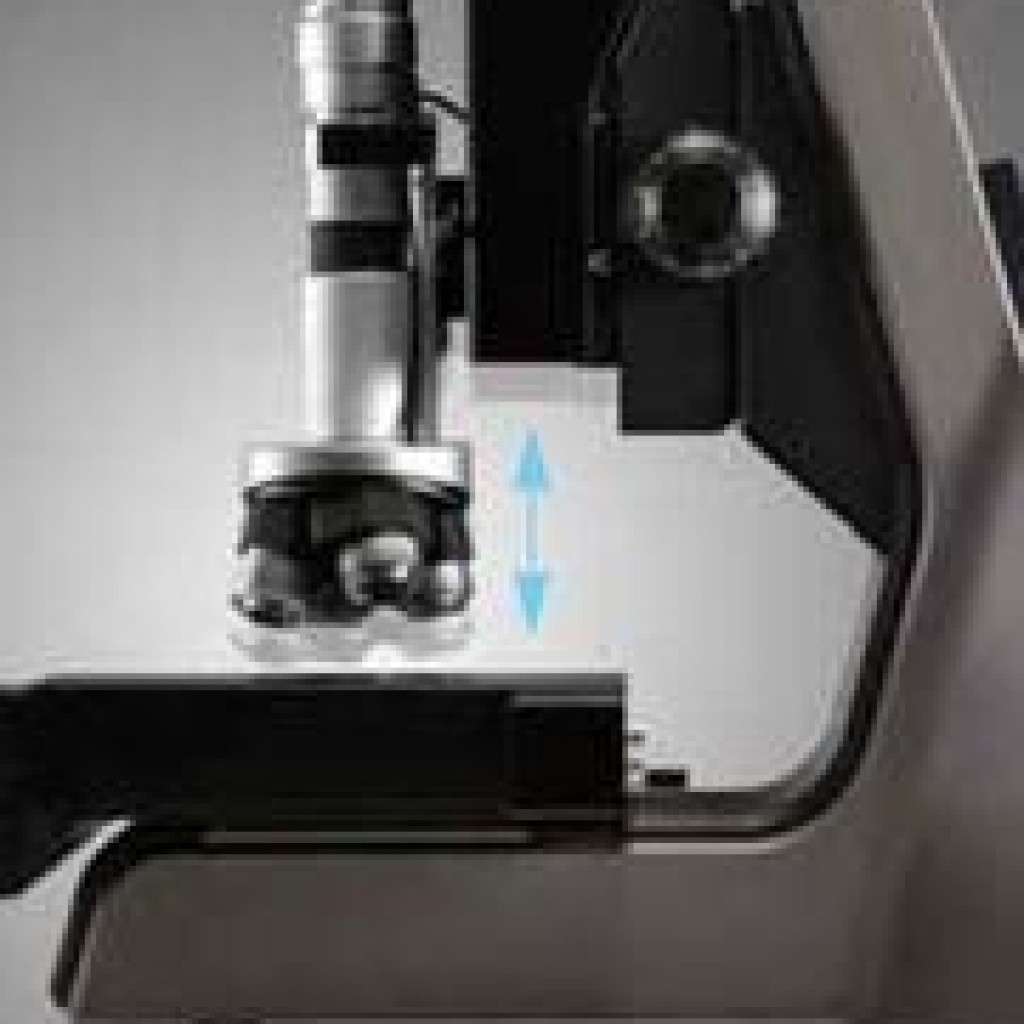

The HDS-MS4 Motorized Stage provides observers with various features designed to meet various needs based on their sample types. Its finely-tuned motors deliver a ± 50MM stroke at a 0.1µ resolution that is accurate to within ± 15µ. Both the X and Y-axes can travel up to 100MM (4″ x 4″). In addition to the motorized stage, the motorized Z-axis moves at a ± 30MM stroke at a 0.1µ resolution and 1µ repeatability.

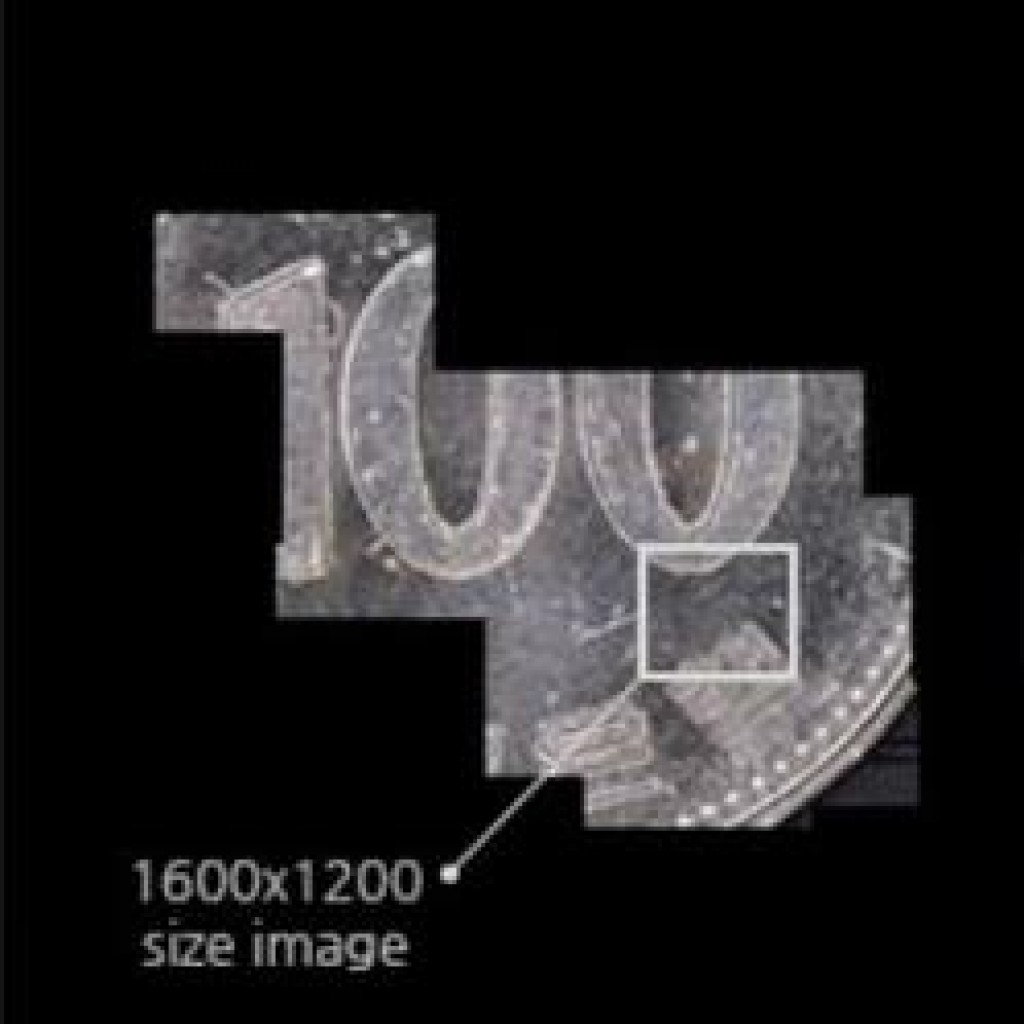

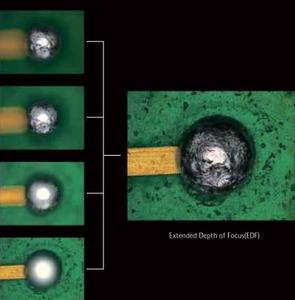

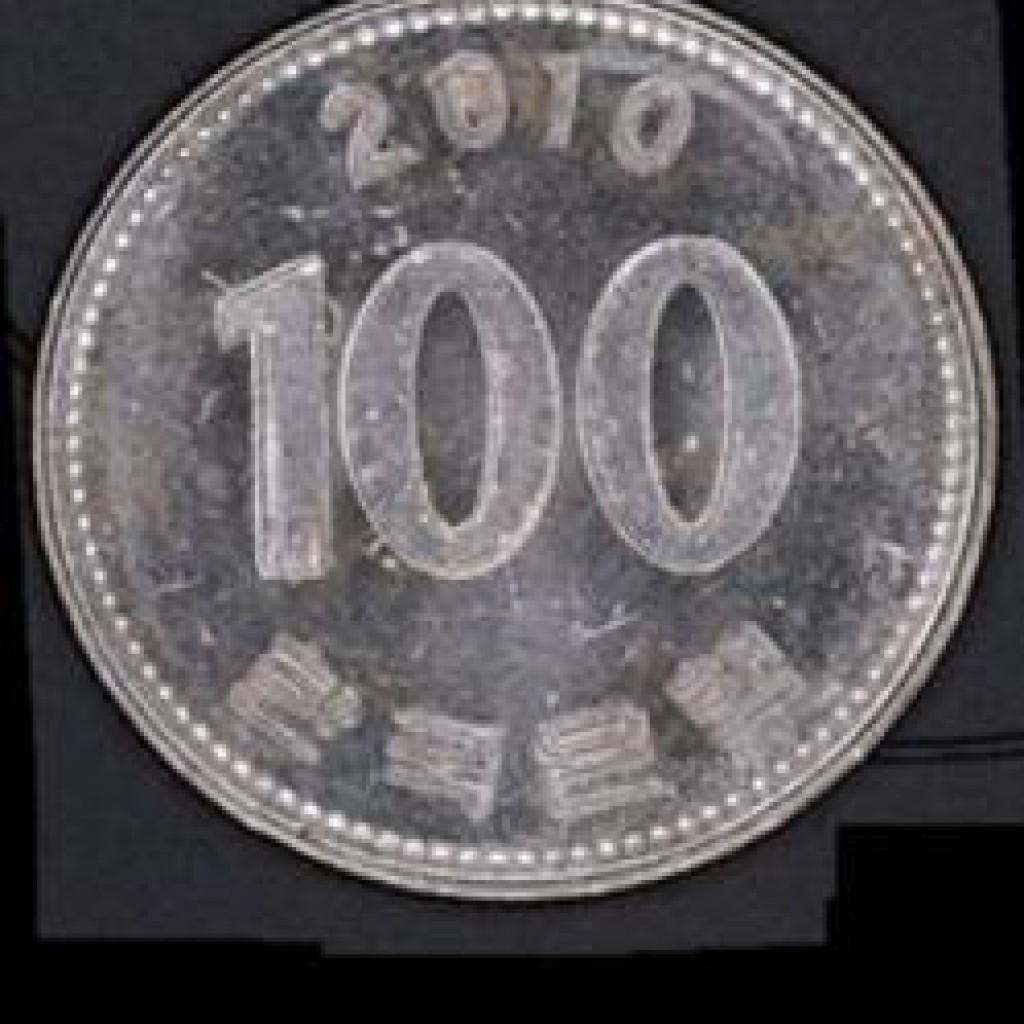

The motorized features allow for easy auto tiling- providing a complete image of a sample that is too big to fit in the field of view- and EDF image construction.
Bright LED Illumination
The Huvitz HDS systems’ LED illumination has been designed to optimize the realistic high resolution image through realistic color rendering. It provides a reflected illumination source in both brightfield and darkfield, as well as a powerful transmitted illuminator for transparent/translucent samples. The LEDs quickly respond to the user’s changes of the light intensity.
