Metkon UPM 902

Call (281) 579-0342 to see if a Metkon Microscope is a good match for you.

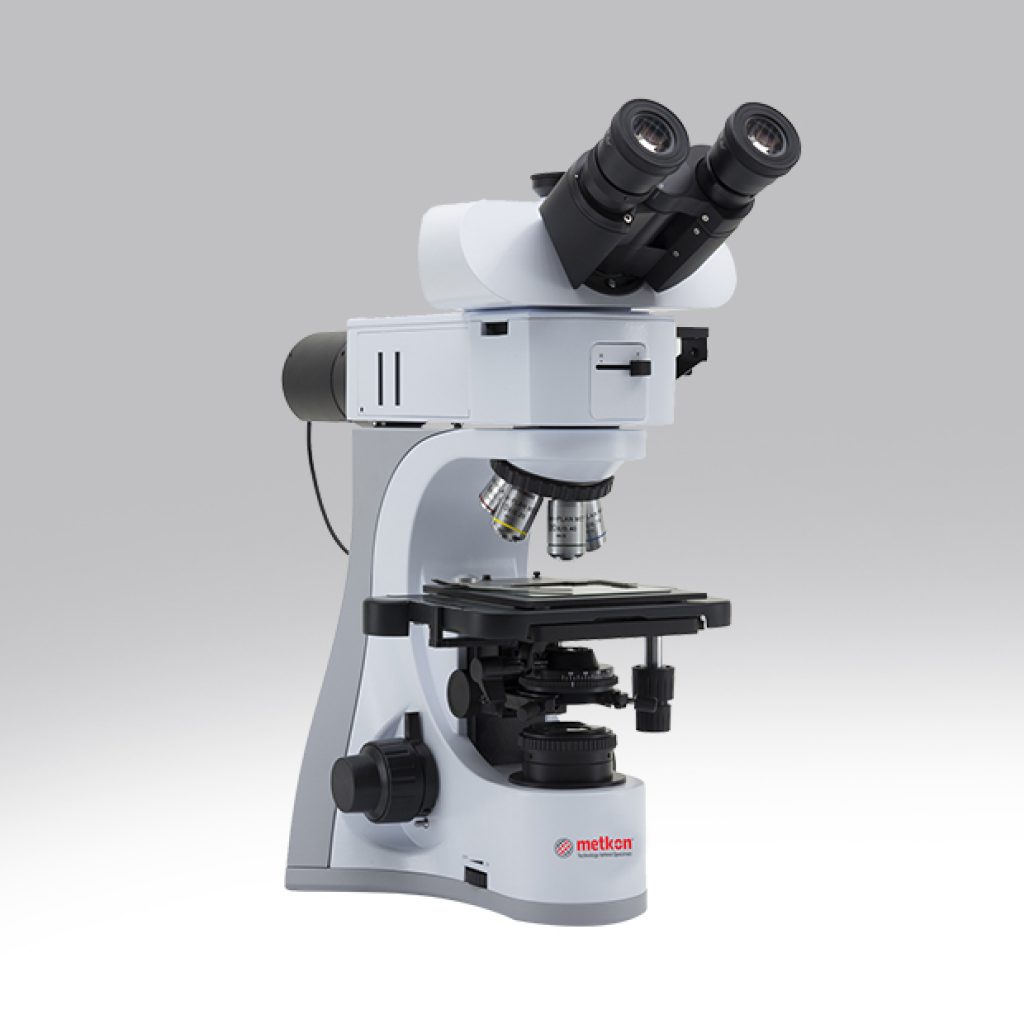

UPM 902 Upright Metallurgical Microscope

• Trinocular Head, 30° inclined, 360° rotating
• Eyepieces: WF10x/22mm
• Nosepiece: 5-positions, reversed
• Objectives: 5x/0.15, 10x/0.3, 20x/0.45, 50x/0.55
• Focusing system: Coaxial coarse and fine
• Stage: Double layer with mechanical sliding stage, 175×145 mm, moving range 76×52 mm
• Condenser: 0,7 N.A. swing-out type, with iris diaphragm, centerable and focusable
• Illumination: XLED system. 50.000 hours life time.6300K temperature. 3.6W low energy consumption, light intensity equivalent to a 50W halogen bulb. Brightness is adjustable
• Metallurgical Attachment: High-power white XLED system with brightness control; field and aperture diaphragms (centerable).
• Simple sliding dark field system
• Filters: Blue, polarizer & analyzer
• Complete with dust cover

Accessories

62 40 Ergonomic binocular head 30°-60°

62 41  Eyepiece EWF10x/22mm

62 42  Eyepiece WF15x/16mm

62 43  Eyepiece micrometer EWF10X/22mm

60 41  26x76mm micrometric slide. R:1mm, div:0,01mm

60 74  Photo adapter for IMAGINE HARDWARE SET
