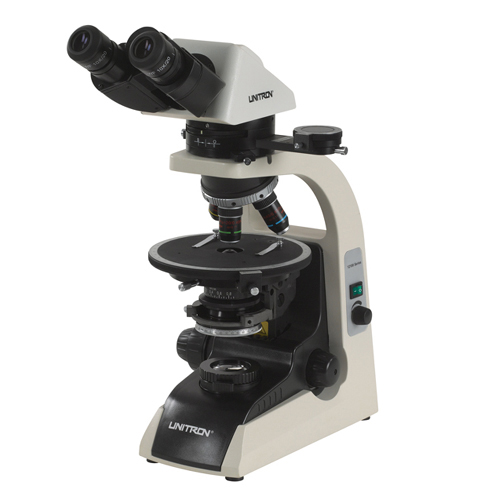

Unitron 12100-Trinocular-Polarizing Microscope

Unitron 12100 Polarizing Microscope

In Stock

UNITRON’s new 12100 Polarizing Microscope is an excellent choice for university and industrial applications for the examination of birefringent materials for geology, petrography, crystallography and material sciences. Available with either a binocular or trinocular (50/50 light split) viewing head, a centerable nosepiece and a bright white 5 watt LED illuminator, the 12100 Polarizing Microscope delivers tremendous performance and value. Engineered for ease of use, but rugged enough to withstand demanding classroom and industrial environments, UNITRON’s 12100 provides outstanding value and best-in-class performance.

Speak with one of our specialists today to see if the 12100 is right for you!

(281) 579-0342

Unitron 12100 Polarizing Microscope

Standard Specifications

  • Binocular or trinocular (50/50 split) viewing head
  • Interpupillary distance is adjustable between 53mm – 75mm; each viewing head as an integrated reticle angle compensation system: when the IP distance or number is changed, the crossline reticle remains perpendicular in the FOV
  • WF10x focusable eyepieces with eye cushion, 20mm FOV, 21mm crossline reticle and guide pin in one eyepiece
  • Reversed quintuple nosepiece – one centerable position
  • 4x, 10x, 20x and 40xR infinity plan strain-free objectives
  • 360° rotatable stage with fully indexed vernier scale and stage clips
  • Coaxial coarse/fine focus system; tension adjustable
  • Achromat swing out condenser – N.A. 0.9/0.3
  • 360° rotatable polarizer
  • 360° rotatable analyzer – easy push in/out from optical path
  • λ tint plate, 1/4λ retardation plate, and quartz wedge all included
  • Variable 5 watt LED illumination system with field iris, 100-240v universal power supply
  • Dust cover, instruction manual

Optional Accessories

  • 60xR objective, N.A. 0.85
  • Attachable mechanical stage – low profile
  • Digital & HD cameras
  • Reticles
  • Dispersion Objective 10x for asbestos
