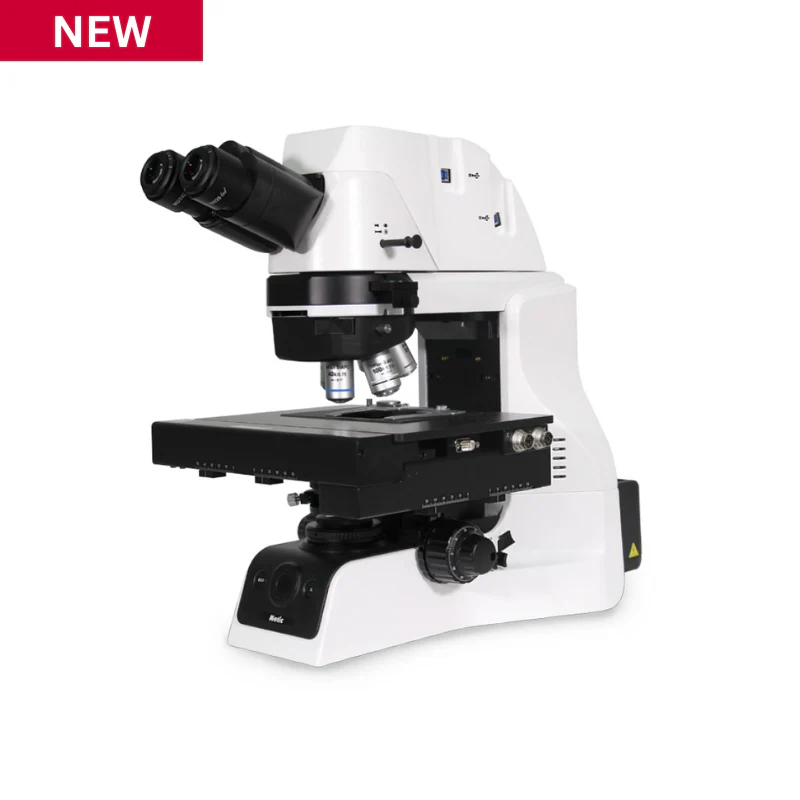

PA53 Bio Scan Microscopes
PA53 Bio Scan mainly meant for transmitted light scan. Various contrasting method can be used for scan and stitch, from Phase contrast to polarizing contrast…… Scanning of transparent sample is not a problem now.
“Benefit of using microscope base digital slide scanning system like PA53 Scan”
• Better quality as it is completed optical path with full Kohler illumination setting
• High precision stage allow physical relocation of Region of Interest and rescan with high resolution high N.A. objective.
• No limitation on the use of objective, super high resolution scan with oil immersion objective becoming possible
• No limitation on the use of contrasting methods, phase contrast, Polarizing contrast, etc… can be used. To scan sample without staining becoming possible.
Features
• PA53 Scan series using a specially designed tube with built-in 1.2 Mpixel camera for focusing and a 5 Mpxiel high resolution sCMOS camera for imaging.
• Lumos LED is recommended for the scan which allow stable and homogenous illumination with very low consumable cost. HBO mercury burner can also be used if preferred.
• 100mm x 100mm high precision motorized stage with smallest step size of 10nm (repeatability better than 200nm) is used, relocation even with 100x objective is not a problem.
• Motorized 5x position nosepiece to allow smooth switching of objectives.
| PA53 BIO SCAN | PA53 FS6 SCAN | |
| Trinocular Tube | special scanning trinocular tube with 2x built-in camera | special scanning trinocular tube with 2x built-in camera |
| Eyepieces |
Adjustable Wide-Field(FN25) Eyepiece 10X/FN25
[Optional] Adjustable wide-field (FN 22) Eyepiece
|
Adjustable wide-field (FN 22) Eyepiece |
| Intermediate piece | PA53 series intermediate piece | – |
| Main body (upper) | Main upper mot body PA53 Bio Scan | Main upper mot body PA53 FS6 Scan |
| 3D Profiler contronller | 3D-Profiler control box/pad | 3D-Profiler control box/pad |
| ObjectiveNosepiece (Mot) | Motorized Quintruple Nosepiece completed | Motorized Quintruple Nosepiece completed |
| Fluorescent attachment | – | PA53 FS6 Scan Epi-fluorescent attachment with 6x position filter turre |
| Transmitted light Halogen illuminator | 100W Halogen lamp housing | 100W Halogen lamp housing |
| Halogen bulb | 100W Halogen bulb | 100W Halogen bulb |
| High quality fluorescent LED illuminator with control panel | – | Lumos LED illuminator with 3x colour LED, external control for controlling intensity of each of the LED is included |
| Motorized stage |
Motorized Stage 100mm x 10mm (without Light shutter) completed
Controller box (without ligth shutter)
Specimen holder (for scanning application)
[Optional] Motorized Stage 100mm x 10mm (with Lightshutter) completed
[Optional] Controller box (with light shutter)
[Optional] XY controller joystick and controller box for stage
|
Motorized Stage 100mm x 10mm (with Lightshutter) completed
Controller box (with light shutter)
Specimen holder (for scanning application)
[Optional] XY controller joystick and controller box for stage
|
| Objectives (Sapo, good for FL too) |
Plan UC 2X/0.05, W.D=7.2mm
HPlan SAPO 10X/0.3,W.D=11.7mm,CG=0.17
HPlan SAPO 20X/0.5,W.D=2.2mm,CG=0.17
HPlan SAPO 40X/0.75,W.D=0.7mm,CG=0.17
HPlan SAPO 100X/1.3 oil,W.D=0.1mm,CG=0.17
[Optional] HPlan SAPO 4X/0.13,W.D=17.3mm,CG=0.17
|
Plan UC 2X/0.05, W.D=7.2mm
HPlan SAPO 10X/0.3,W.D=11.7mm,CG=0.17
HPlan SAPO 20X/0.5,W.D=2.2mm,CG=0.17
HPlan SAPO 40X/0.75,W.D=0.7mm,CG=0.17
[Optional] HPlan SAPO 4X/0.13,W.D=17.3mm,CG=0.17
[Optional] HPlan SAPO 100X/1.3 oil,W.D=0.1mm,CG=0.17
|
| Long Working distance condenser | [Optional] LWD N.A. 0.63 WD 10.7mm Condenser | [Optional] LWD N.A. 0.63 WD 10.7mm Condenser |
| Condenser |
N.A. 0.9/1.30 swing-out condenser
[Optional] Push slider condenser 0.9/1.25
[Optional] Phase contrast turret condenser
|
N.A. 0.9/1.30 swing-out condenser
[Optional] Push slider condenser 0.9/1.25
[Optional] Phase contrast turret condenser
|
| Fluorescent filter set with cube | – |
Fluorescent filter set (AT-DAPI/Hoechst/AlexaFluor 350)
Fluorescent filter set (AT-EGFP/FITC/Cy2/AlexaFluor 48)
Fluorescent filter set(AT-TRITC/Cy3/TagRFP/AlexaFluor 546)
Fluorescent filter CUBE
[Optional] Fluorescent filter set (AT – Cy5/AlexaFluor 647/Draq5/CY5)
|
| Diffuser | – | Yes |
| PA-25ND25 ND filter | Optional | Optional |
| Transmitted light filter |
[Optional] Yellow filter
[Optional] Green filter
[Optional] Neodymium (contrast enhancement) filter
[Optional] Blue conversion filter
|
[Optional] Yellow filter
[Optional] Green filter
[Optional] Neodymium (contrast enhancement) filter
[Optional] Blue conversion filter
|
| LBD filter (White balanced filter) | Yes | Optional |
| ND25 Neutral Density filter | Yes | Optional |
| ND6 neutral Density filter | Yes | Optional |
| Analyzer slider | [Optional] 360° Rotation analyzer Filter | [Optional] 360° Rotation analyzer Filter |
| Polarizer | [Optional] Polarizer Filter | [Optional] Polarizer Filter |
MECHANICS
The coaxial coarse/fine adjustments in 1 micron minimum increment allows smooth movement in Z. The super precise rackless X/Y stage with its dual slide holder enables a fast throughput of samples. Butter smooth aperture diaphragms assure accurate Köhler illumination with every objective.
CONTRAST METHODS
The PA53 BIO FS6 microscopes offer maximum flexibility especially in case of Florescence. The high-power 3 channel LUMOS LED with its individual control of each excitation channel, in combination with the coded 6-fold filter cube turret, makes FISH/HER2 analysis of chromosomes easy.
Select from Brightfield, Phase Contrast, Fluorescence and Polarized light illumination. Plan Achromat Plan Fluor, S Plan Apo and Plan Apochromat lenses including 2x, 4x, 10x, 20x, 40x and 100x.
