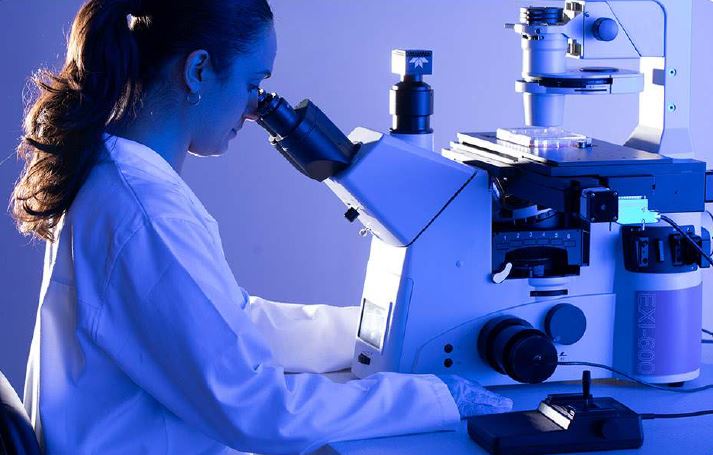

ACCU-SCOPE EXI-600 Inverted Microscope

The New ACCU-SCOPE EXI-600 Research Inverted Microscope delivers outstanding optical performance, value and resolution for the study of tissue cultures and live cells in university laboratories, hospitals and educational institutions.  Optimized for automation with motorized components from companies including Prior, Ludl, Sutter or ASI. Live cell imaging, micromanipulation, fluorescence, DIC, modulation contrast, phase contrast and brightfield illumination are all offered finally at a truly affordable price!

Ease of Viewing

The EXI-600 is available a-la-cart featuring a selection of contrast methods including brightfield, phase contrast, DIC, modulation contrast and fluorescence. All suitable to address a wide variety of applications. Each microscope is supplied an engageable Bertrand lens, magnification changer and with three camera ports. Optional C mount adapters can connect digital, HD video or low light cameras.

Compact Design, Saves Space

The research design of the EXI-600 assures stability in today’s crowded lab environments. Idea for phase contrast or DIC and simultaneous or stand alone fluorescence. The perfect, comprehensive research inverted microscope designed for micromanipulation and microinjection applications.

Pre-Configured Simplicity

Push button controls and visual displays lets you see all illumination techniques easily, even in the dark.  The EXI-600 offers a safe, uncomplicated choice for researchers of all disciplines.

ACCU-SCOPE EXI-600

Specifications

  • Infinity Optical System
  • Observation Methods: Brightfield, Phase Contrast, Normarski DIC, Modulation Contrast, Fluorescence
  • Viewing Body: Siedentopf Viewing Head, Inclined at 45°, Interpupillary 48-75mm; 100%
  • Left-side camera port 80%, right side port 80% and top port 100%
  • Eyepieces: SWF 10x/22mm,
  • Nosepiece: Sextuple
  • Objectives: 210mm correction
  • Infinity Plan S-Apochromatic 4x, 10x, 20x, 40x
  • Infinity Plan S-Apochromatic Phase Contrast 4x, 10x, 20x, 40x
  • Infinity Plan S-Apochromatic Modulation Contrast 10x, 20x, 40x
  • Interchangeable with all Nikon® objectives
  • Engageable Bertrand lens
  • Magnification Changer 1.5x, 1.0x
  • LCD screen display with simplified controls
  • Push button light selector
  • 3 Plate mechanical stage movement range 130mm(X) × 85mm(Y)
  • Holders:
    Terasaki holder / Ø65mm petri dish holder
    Ø35mm petri dish holder
    Ø54mm petri dish holder, hemocytometer, glass slide holder
    Well clamper
    Universal holder for Terasaki plate holder, glass slide, Ø35-65 dish
    and 1×3″ slide
    Ø90mm petri dish holder
  • Long working distance turret phase contrast condenser, WD 40mm, NA 0.55
  • 3W S-LED transmitted illuminator
  • Fluorescence:
    6-position filter cube turret encoded, multiple illumination options
  • Focusing:
    Coaxial coarse and fine focus; fine-focus precision 0.002mm;
    focus range: 7mm up, 1.5mm down; total travel limit 18.5mm
  • 0.35x, 0.5x, 0.65x and 1.0x adjustable C-mount adapters
  • Accessories:
    Eyepieces, reticles, micrometers; IF550nm green filter; dust cover
  • Dimensions (LWH):
    800mm x 276mm x 686.6mm
    with fluorescence configuration)
  • Warranty:
    5-year limited warranty for parts, labor and electronic components.
    1-year warranty on LED bulbs
