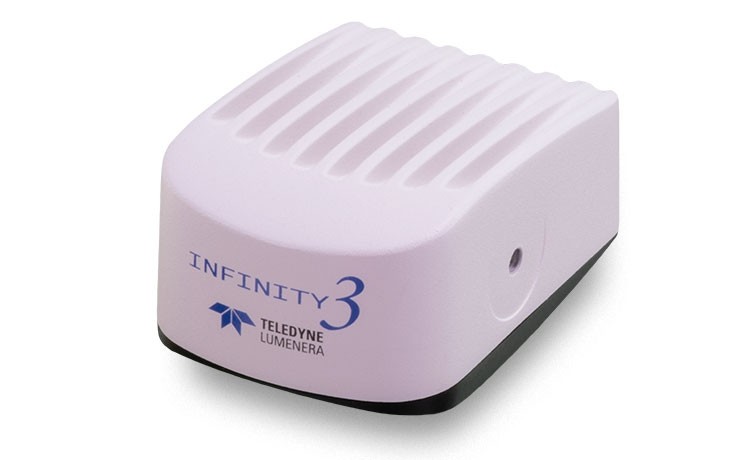

Infinity 3-6 UR

INFINITY3-6UR

Lumenera’s INFINITY3-6UR is a high-speed, high sensitivity research-grade camera with a six megapixel resolution. The INFINITY3-6UR incorporates Sony’s remarkable ICX694 CCD sensor, that provides high dynamic range and speed. Full resolution 6.0 MP images are sent to a host computer at up to 27 frames per second (fps). The research-grade designation of the INFINITY3-6UR is a testament to the low noise electronics, high-grade components and unique thermal management techniques used in the camera. The result is an industry-leading, high-performance, low noise digital camera, alone in its class. This microscopy camera is designed for use in a wide variety of scientific, life science, clinical and industrial applications requiring optimal color reproduction, extreme sensitivity, increased resolution and high speed.

Superior Sensitivity and Color Reproduction

The INFINITY3-6UR has the unmatched sensitivity needed for low light applications. Relying on Sony’s EXview HAD II technology, this camera offers extremely high dynamic range, 4.54 x 4.54 μm pixels and very low noise. With 2×2 binning, there is a fourfold increase in sensitivity while providing a 1.5 MP (1376×1096) resolution. The INFINITY3-6UR delivers outstanding image quality and value for challenging low light applications such as fluorescence and NIR imaging.

USB 3.0 High-Speed Plug-and-Play Interface

The INFINITY3-6UR uses the latest USB 3.0 technology at 5 Gbits/sec to deliver the fastest image transfer – even at its highest resolution. Image captures can be synchronized using either a hardware or software trigger. 128 MB of onboard memory for frame buffering ensures dependable and reliable image delivery at full frame rate and highest resolution even in the most demanding systems. USB 3.0 is the ideal choice for microscopy as it is readily available on today’s computers, while plug-and-play connectivity makes for easy installation.

Full Image Analysis Software Included

INFINITY CAPTURE, an intuitive image capture program, and INFINITY ANALYZE, a full image analysis package offering camera control, multi-spectral capture and composition, measurement, annotation, tiling and post capture enhancement, are included with the camera. Camera and software combine to create a complete microscopy imaging solution for your application.

Superior Technical Assistance Center (TAC)

All Lumenera cameras are supported by an experienced team of technical support and imaging experts widely acclaimed in the industry. As a Lumenera customer you gain access to the TAC group and knowledge base, providing full support for cameras, software and microscopy applications.

Camera Settings

Image Sensor CCD, Sony ICX694, Avail in Color or Monochrome
Optical Format 1″
Frame Rate 27
Bit Depth 8 or 14-bit
Read Noise 6.5 e- (Quad-Tap Mode, 25 ºC ambient, 41 ºC internal)
Dark Current <1 e-/s (at 22 ºC ambient, 41 ºC internal)
Pixel Size 4.54 x 4.54 µm square pixels

Camera Controls

Mass 395 g
Power Requirement External 5 V DC, 1.2 A, power supply (included)
Power Consumption 6 W maximum in full frame rate mode
Operating Temperature 0 to 50 °C
Operating Humidity 5 to 95%, non-condensing
ROI Any multiple of 16 x 16 pixels (quad tap mode)
Interface Connector USB 3.0 (USB 2.0 supported for lower frame rates)
Dimensions 57.15 x 97.79 x 39.62 mm 2.75 x 3.85 x 1.56 inches
Lens Mount Adjustable C-mount standard
Binning Options 2 x 2, 4 x 4, 8 x 8 (3 x 3 mono only)
Infinity 3-6 UR

Product Highlights

  • 27 fps at 6.0 megapixel, 46 fps (binned 2×2), 75 fps at VGA (640 x 480)
  • Industry leading Sony EXview HAD ll sensor technology with high QE
  • Color or monochrome ICX694 CCD sensor with 1” optical format providing a resolution of 2752 x 2192
    using 4.54 x 4.54 μm pixels
  • High-speed USB 3.0 interface for ease of installation on any computer
  • GPIO for control of peripherals and synchronization. 1 optically isolated output, 1 optically isolated input and
    2 configurable I/O ports
  • 128 MB of onboard memory for frame buffering results in reliable image delivery for demanding systems
  • Select 8 and 14-bit pixel data modes

Ordering Options

Included in the Box

  • INFINITY3-6URC — 6.0 Megapixel Uncooled Color CCD USB 3.0 Camera or INFINITY3-6URM — 6.0 Megapixel Uncooled Monochrome CCD USB 3.0 Camera
  • USB 3.0 Cable
  • La050300 — Power Supply, 5 V DC, 12.5 W

Ordering Options

  • 5YR Protection Plan 2 — Additional 1 year warranty, 1 advanced hardware replacement
  • La2000PAFL — GPI/O Breakout Cable
  • LuSDKSW — Software Developer’s Kit (Web Download)
