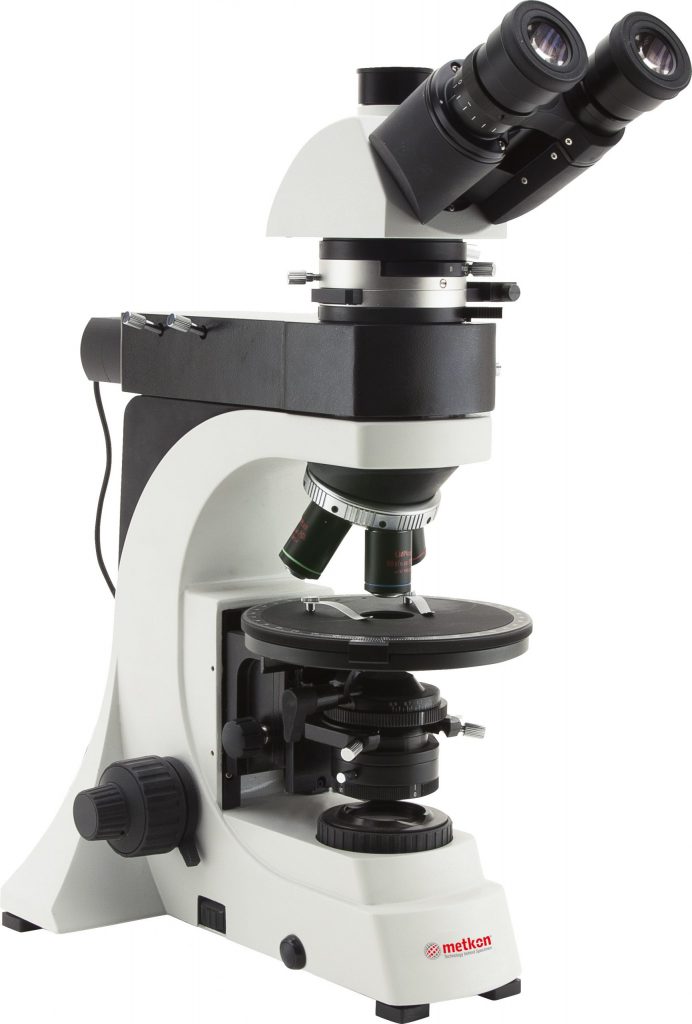

Metkon IPP 902 Polarizing Laboratory Microscope
Call Meyer Instruments, Inc. to see if a
Metkon Microscope
is a good match for you.
(281) 579-0342
Polarizing Laboratory Microscope
Head: Trinocular, 30° inclined, 360° rotating
Eyepiece: WF10x/22mm
Bertrand lens: Swing-out type; centrable (for Conoscopy/Orthoscopy)
Polarizing attachment: Blue filter, 0°-90° rotating analyzing filter,
l slip (first class red), 1/4 l slip, quartz wedge
Nosepiece: 4-positions with centering mechanism for all objectives
Objectives: For transmitted and incident polarized light
5x/0.15, 10x/0.25, 20x/0.40, 50x/0.70
Magnifications: 50x, 100x, 200x, 500x
Focusing system: Coaxial coarse and fine
Stage: 160mm diameter; 360° rotating with stop knob and 0.1° Vernier
Condenser: 0,9 N.A., with iris diaphragm, focusable and centrable.
With rotating polarizing filter (swing-out type)
Illumination: Transmitted light: XLED system.
Incident light: XLED system polarizing attachment with built-in
polarizer filter, aperture diaphragm and field diaphragm.
Complete with dust cover
| ORDER NO | 60 06 |
| MODEL NO | IPP 902 |
| Head | Trinocular, 30° inclined, 360° rotating |
| Eyepiece | WF10x/22mm |
| Bertrand lens | Swing-out type; centrable (for Conoscopy/Orthoscopy) |
| Polarizing attachment | Blue filter, 0°-90° rotating analyzing filter, l slip (first class red), 1/4 l slip, quartz wedge |
| Nosepiece | 4-positions with centering mechanism for all objectives |
| Objectives | For transmitted and incident polarized light 5x/0.15, 10x/0.25, 20x/0.40, 50x/0.70 |
| Magnifications | 50x, 100x, 200x, 500x |
| Focusing system | Coaxial coarse and fine |
| Stage | 160mm diameter; 360° rotating with stop knob and 0.1° Vernier |
| Condenser | 0,9 N.A., with iris diaphragm, focusable and centrable. With rotating polarizing filter (swing-out type) |
| Illumination | Transmitted light: XLED system. |
| Incident light | XLED system polarizing attachment with built-in polarizer filter, aperture diaphragm and field diaphragm. |
| Dust Cover | Yes |
| Optional Accessories for IPP 902 | |
| 62 40 | Ergonomic binocular head 30°-60° |
| 62 42 | Eyepiece WF15x/16mm |
| 62 43 | Eyepiece micrometer EWF10x/22mm |
| 60 41 | 26x76mm micrometric slide. R:1mm, div:0,01mm |
| 60 58 | 60x achromatic objective |
| 61 81 | Blue filter, 45mm diameter |
| 61 82 | Green filter, 45mm diameter |
| 61 83 | Yellow filter, 45mm diameter |
| 61 84 | Frosted glass filter, 45mm diameter |
| 62 60 | Eyecup (pair) |
| 60 74 | Photo adapter for IMAGINE HARDWARE SET |
| 60 66 | Cleaning kit |
