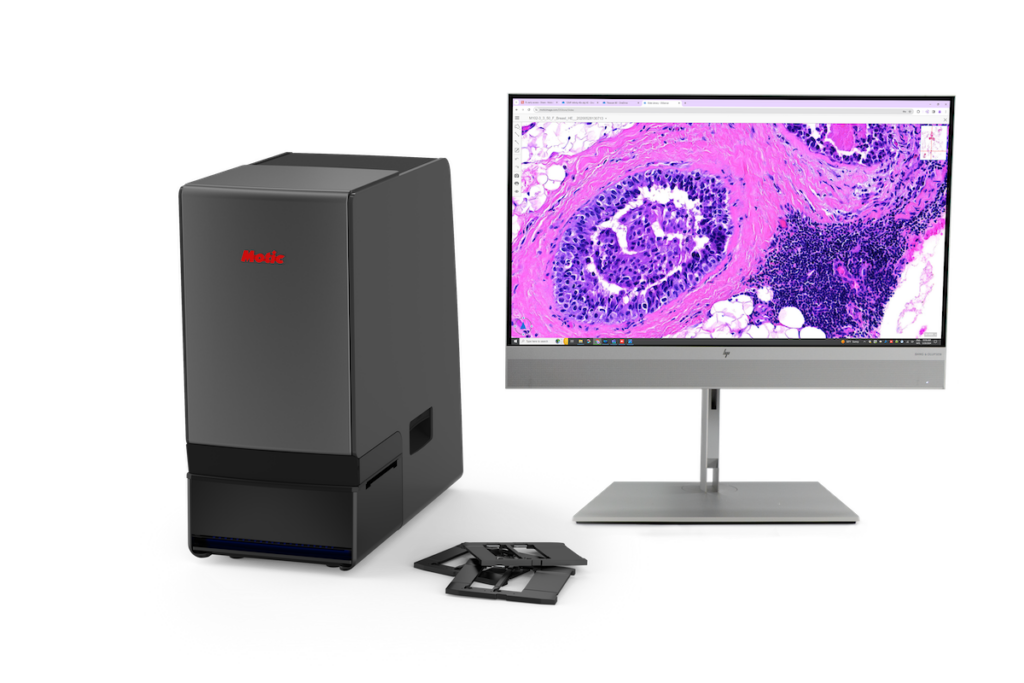

Motic EasyScan Two Dual Slide Scanner

The Motic EasyScan Two is a desktop slide scanner designed to digitally image slides for analysis.

Objective Lens: Plan Apochromat 20x objective, NA = 0.75
Scanning time: In standard mode with 20x objective, < 1 minute.
Resolution: At 40x: 0.26 µm/ pixel, at 20x: 0.52 µm/ pixel
Focusing mechanism: Real-time autofocus
Scanning camera: 12.0 MP digital camera
Nosepiece: Revolving nosepiece has 3 holes for objectives.
Slide capacity/ size: Holds up to two slides measuring 76 ± 1 mm x 26 ± 1 mm.
Available scanning modes:
- Normal mode with real-time autofocus
- High-precision mode has high precision autofocus
- Extended depth of field (EDF) mode for large depth of field
- Z-Stack mode for 3-dimensional stacking
Illumination: 10W LED with lifetime of ~25,000 hours
Interface: USB 3.0
Barcode support:
- Supports the following 1D barcode types: Interleaved 2 of 5, Code 39, and Code 128
- Supports the following 2D barcode types: Data matrix, QR code
Software: Includes DSAssistant and EasyScanner software package and dongle. The software has tools for image adjustment, annotations, measurements, encryption, comparison, and export.
Note: System does not include monitor or computer workstation.
- Minimum requirements for computer system are as follows: Intel core i7-770, 16 GB memory, 128 GB SSD and 1 TB SATA Disk, Windows 10 Professional 64-bit
Size & Weight: 205mm x 398mm x 420mm (8.1″ x 15.7″ x 16.5″), 12.6 kg (27.7 lbs)
Warranty: System has a 1-year warranty. Extended warranty plans are available for purchase separately.
