moticam1080 HDMI and USB

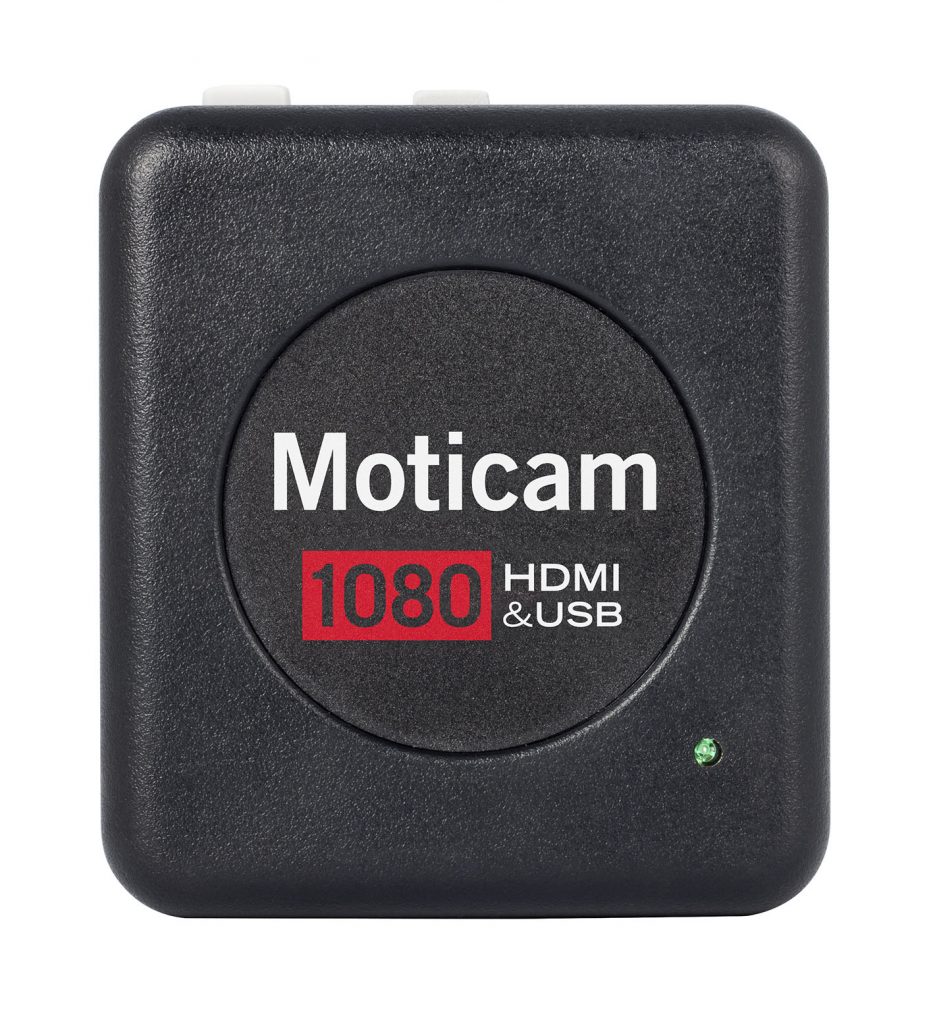

Motic Moticam 1080
Moticam 1080 HDMI & USB

Moticam 1080 is the improved successor of the well-established model Moticam580. The Moticam 1080 is a stand-alone system works without computer and delivers an impressive 1080 (60P) live image on HDMI screen. Still images or HDMI videos from the microscope can be saved onto its removable SD card. To control image and capture parameters via a powerful onboard software, just connect a wireless mouse to the USB port. It can also be plugged into a Windows, OSX or Linux system through USB if you want work with the new Motic Images Plus 3.0. HDMI and USB signal even can be used to run the camera on HDMI and PC screen in a parallel mode, working with the computer and visualizing the image in a HD screen. With or without computer, thanks to its multi-output configuration the Moticam 1080 is ready to be implemented in your daily workflow.

Easy to install and easy to use, with over 2 Million in use, it is no surprising why the Moticam is the preferred choice for science, industry and academic. The Moticam 1080 offers superior High Definition imaging with 1080p through HDMI. The kit comes along with Moticam1080 includes the following:

  • Moticam 1080
  • Remote Control
  • Focusable Lens
  • Calbration Slide
  • HDMI Cable
  • USB Cable
  • Power Supply
  • Analog Video Cable
  • Motic Images Plus 2.0 for PC & Mac


  • HDMI output to monitor or USB2.0 to a PC
  • 8MP image capture via SD card
  • Rapid Live Imaging at 60 FPS
  • PC/MAC Compatible
  • Stand-Alone Operation
Moticam 1080 at Meyer Instruments
