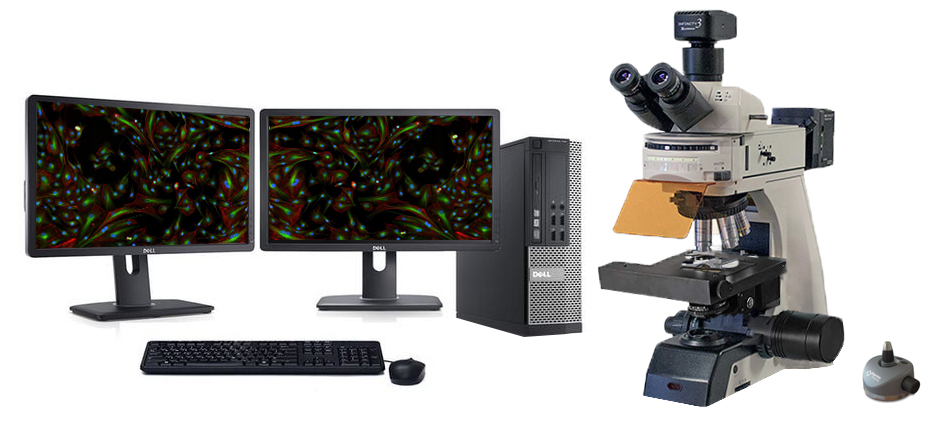

The Turboscan-Image-Pro Microscope Slide Scanner is a comprehensive research instrument designed to support the diverse imaging needs of researchers. Perfect for IHC, ISH and fluorescent tissue-based samples.

As a combination microscope-scanner it is optimized for precision scanning of brightfield and fluorescence samples with the accuracy and resolution required for FISH. Phase contrast and polarized samples can also be scanned.

Specifications:

  • Combines Image-Pro Software, Turboscan motorized XYZ control and ACCU-SCOPE EXC-500 fluorescence microscope
  • Rapid mosaic XYZ image stitching creates stunning brightfield and fluorescence images
  • Capture and stitch with 2x, 4x, 10x, 20x or 40x S-Plan Apo objectives
  • Uses one 1×3″ or one 2×3″ slide
  • Optional holder for four 1×3″ slides
  • Advanced tissue detection for faint for lightly stained brightfield and fluorescence samples
  • Scan slides from 0.9mm to 1.2mm thick
  • Z-stack capture for thick samples
  • Intuitive interface enables ease of use and adoption
  • 2-D scanning technology, ideal for co-localization studies
  • Dedicated dual monitor workstation or networked deployment options
  • Broad range of measurements using Image-Pro image analysis software
  • Scan 15mm x 15mm @20x brightfield in 60 seconds

Also available for material science, geological and metallurgical applications!

Speak with one of our specialists today to see how the Turboscan-Image-Pro Microscope Slide Scanner can work for you!
