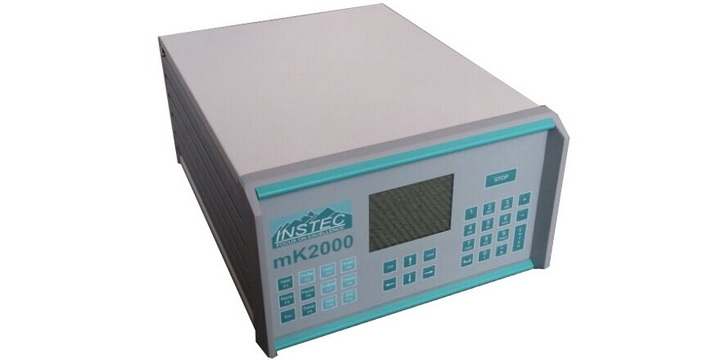

mK2000 PRECISION TEMPERATURE CONTROLLER
-
High precision temperature controller
-
0.001C resolution
-
4 calibration tables
-
8 sets of PID parameters
-
SCPI via Virtual Com Port (VCP)
-
Sample program code available in different program language
Features
• 4 sets calibration table, with up to 20 reference points in each table
• Programmable precision temperature control with PID algorithm for
achieving precise target temperatures with minimal overshooting
• 24 bit analog to digital converter
• Dual PID outputs for both heating and cooling
• Programmable user-defined temperature profiles with ramp up, hold, and
ramp down program steps
• Store up to five temperature profiles for routine work
• CE certified with built-in over-temperature protection
• User-friendly WinTemp Windows software with graphical display to control
the controller, and to record and export temperature-time data
• Sample source code available to customer in LabVIEW, C#, C++, Python, and
others
Specifications
Temperature Sensors & Resolution |
± 0.001°C with thermistor±0.01°C with 100 Ω Platinum RTD± 0.1°C with thermocouple |
Temperature Stability |
±0.01°C (depending on heating stage) |
Minimum Heating and Cooling Rate |
±0.1°C per hour |
Maximum Heating Rate |
Up to +200°C per minute at 100°C |
Host Interface Options |
USB2.0 (standard)VCP (RS232)Ethernet (IP)IEEE488 (GPIB) |
LVDC Option |
Optional LVDC for low EMI applications |

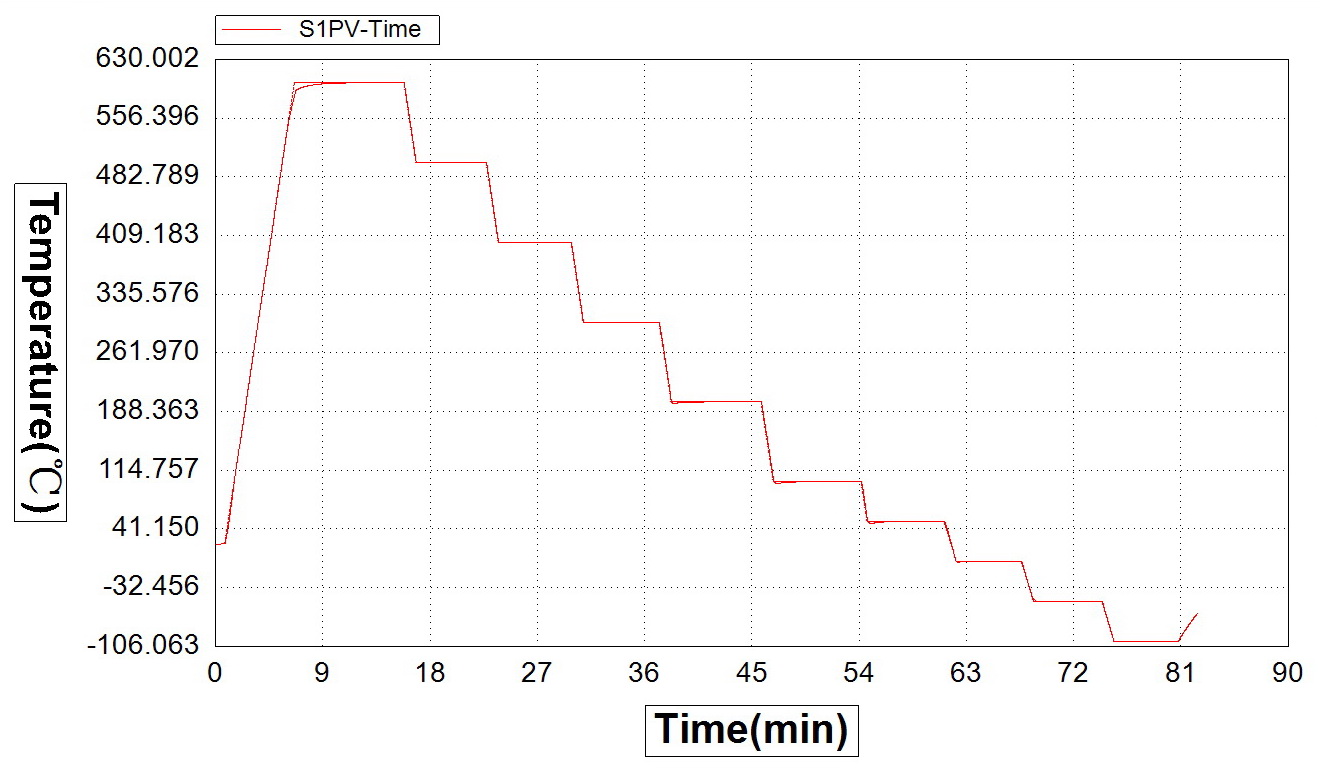

Typical Temperature Profile
