TS102GXY / TS102VXY
- Versatile stage with streamlined design for long duration experiments without liquid nitrogen
- -40°C – 120°C with thermoelectric heating and cooling
- XY sample positioning
- Sealed chamber with gas purging or vacuum capability
Description

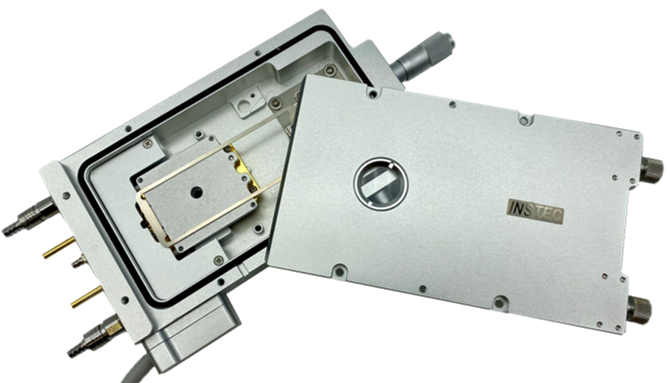

Instec’s TS102GXY/TS102VXY is a thermoelectric (Peltier) based stage offers gas-tight/vacuum-tight capabilities that can provide cooling to -40°C without using liquid nitrogen or a recirculating chiller. This simplifies the system setup, reduces operating costs, and makes it a convenient choice for performing long duration experiments at low temperatures.
The TS102GXY is a lower cost option for controlling the atmosphere when vacuum is not required.
The TS102VXY with vacuum chamber capability is ideal for freeze drying samples under microscope.
Thermal Features
| Temperature Control | mK2000 with programmable precision switching PID method |
| Thermal Block | Anodized aluminum |
| Sample Thermal Cover | Removable Inner sample cover with additional window |
| Temperature Minimum | -30C with optional chiller
-40C optional |
| Temperature Maximum | 120°C |
| Temperature Sensor | 100 Ω Platinum RTD |
| Maximum Heating Rate | +60°C per minute at 37°C |
| Maximum Cooling Rate | -20°C per minute at 37°C |
| Minimum Heating and Cooling Rate | ±0.01°C per minute |
| Temperature Resolution | 0.01°C |
| Temperature Stability | ±0.05°C |
| Power Supply | Universal power input |
| Software | Windows software to record and export temperature-time data |
Optical Features
| Optical Access | Reflection and transmission capability |
| Optical Windows | Removable and exchangeable windows permit full-spectrum transparency |
| Minimum Objective Working Distance | 5.6 mm |
| Minimum Condenser Working Distance | 13.6 mm |
| Top Window | 27mm diameter |
| Top Viewing Angle | ±60° from normal |
| Transmission Aperture | 5 mm diameter |
| Bottom Viewing Angle | ±13° from normal |
| Window Defrost | Integrated external window defrost |
Structural Features
| Sample Area | 40 mm x 40 mm |
| Chamber Height | 3.5 mm without removable inner cover
2.0 mm with removable inner cover |
| Sample Positioning | 10 mm fine travel with Vernier XY dials for remote manipulation in closed chambers |
| Frame Cooling | Integrated frame cooling with optional recirculating water chiller system |
| Mounting | Horizontal |
| Frame Dimensions | 169 mm × 96 mm × 25 mm |
| Weight | 800 g (Gas) / 900 (Vacuum) |
