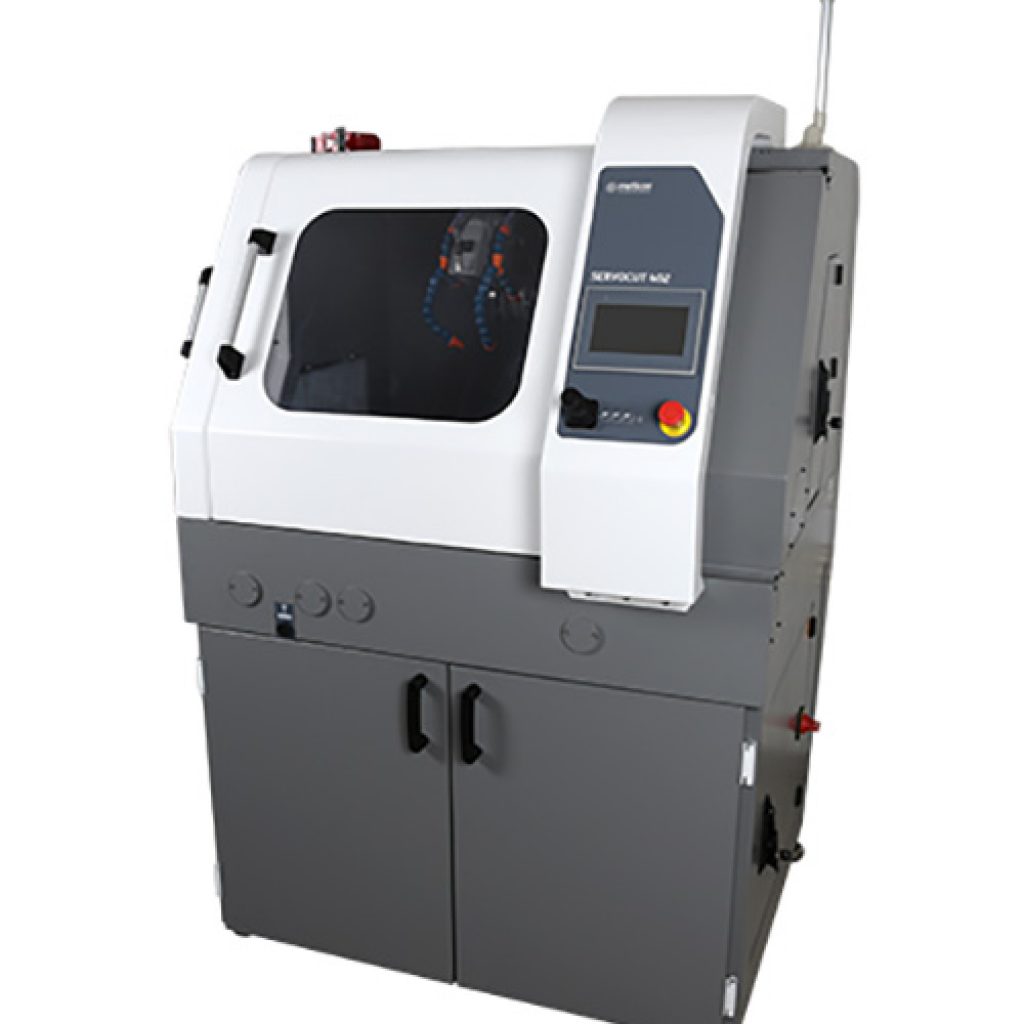

Metkon Servocut 402 Automatic Abrasive Cutting Machine
Features
Large Cutting Capacity
Powerful Cutting Motor
X-Y-Z three axes cutting capability with joystick control
Extraordinary access for easy handling
Automatic Abrasive Cutting Machine
The SERVOCUT 402 is an advanced universal metallographic cutting machine with high cutting capacity that is used to cut a very wide range of materials. Includes hand wheel driven chop cutting and table-feed cutting systems, manual positioning of the specimen in X and Y axis (X-axis for plane parallel cutting is optional), manual positioning of the cutting wheel in Z-axis, powerful 7.5 kW cutting motor, 2200 rpm cutting speed, with electronic brake system, cutting capacity up to 150/130 mm solid stock, with cut-off wheels up to Ø400/350mm, twin T-slotted clamping table made of stainless steel, bottom part as rugged alloy base casting, extraordinary access for easy handling with sliding door and side openings, Ready for operation without clamping devices, or recirculation cooling tank.
Includes a standard set of cutting consumables composed of:
Includes a standard set of cutting consumables composed of;
*An assortment of 20 cut-off wheels with 400 mm dia.
*5 lt of Metcool cooling fluid.
400 V, 3 phase, 50/60 Hz.
Technical Specifications
| Order No | 15 65 | 15 65-MX |
| Model | 402-MM | 402-MM-MX |
| Max. Wheel Diameter | Ø400 mm | Ø400 mm |
| Max. Cutting Capacity, Ø | Ø150 mm | Ø150 mm |
| Max. Cutting Capacity, HxD | #85×350 mm | #85×350 mm |
| Z-Axis Travel, (mm) | 255 | 255 |
| Y-Axis Travel, (mm) | 300 | 300 |
| X-Axis Travel, (mm) | – | 150 |
| T-Table Dimension, (mm) | 550×484 | (446+150)x484 |
| T-Slot Dimension, (mm) | 12 mm | 12 mm |
| Cutting Motor Power (S1) | 7.5 kW | 7.5 kW |
| Wheel Speed, RPM | 600-3200 | 600-3200 |
| Cutting Feed rate, (µm/s) | 20-5000 | 20-5000 |
| HMI Touch Screen | 7 inch | 7 inch |
| Chop Cutting, Z- Axis | Auto | Auto |
| Table Feed Cutting, Y-Axis | Auto | Auto |
| Parallel Cutting, X-Axis | – | Auto |
| Table Oscillating Cutting | Standard | Standard |
| Rapid Pulse Cutting | Standard | Standard |
| Smart Feed Control | Standard | Standard |
| StepCut; SegmentCut; DiagonalCut | Optional | Optional |
| Automatic Cleaning System | Optional | Optional |
| Size WxDxH, (cm) | 114x112x169 | 114x112x169 |
| Weight | 600 kgs | 600 kgs |
| Recirculation Cooling Unit | 135 lt | 135 lt |
