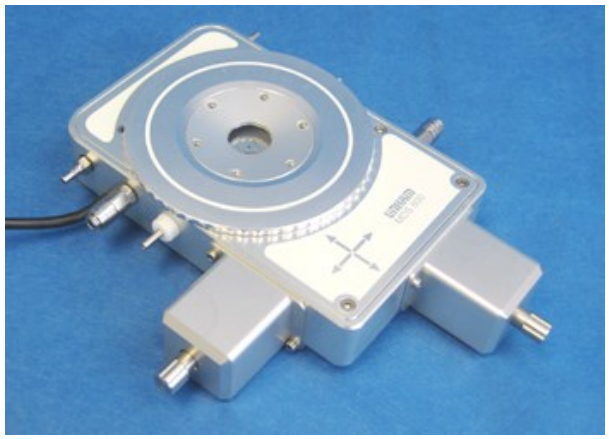

Linkam MDS600 Motorized Stage

Call Meyer Instruments, Inc., for pricing and to learn more about Linkam temperature controlled stages

Call 281 579-0342 Today!

Linkam MDSG600 Geology Motorized Stage

The MDSG600 is a motorized version of the THMSG600, arguably the most popular geology heating/freezing stage in the world.

The sample is motorized in X and Y directions by precision micro stepped motors that enable micron repeatable position resolution and position recall enabling a sample to be mapped in order to quickly relocate positions of interest, and carry out temperature controlled experiments significant to that point.

Unrivaled accuracy and control of temperature from < -195°C to 600°C enable the user to characterize fluid inclusions to better than 0.1°C and hold a stability of 0.001°C.

Linkam MDSG600 Geology Motorized Stage Specifications

  • Temperature range < -195°C to 600 °C
  • Heating and cooling rates of 0.01 to 150°C/min
  • PC control using LINK software
  • Positional resolution of motors 0.05µm
  • Position repeatability <3um
  • 150 XY coordinates can be stored
  • Max 15mm motorised XY travel
  • Manual and PC operation
  • Definable sample scan area
  • Sample vibration eliminated over entire range of speeds
  • Novel low profile lid design for rapid lens change
  • Mounts directly on microscope substage using stage clamps
  • Objective lens working distance 4.9mm
  • Condenser lens minimum working distance 12.7mm
  • Light aperture 2mm Ø for accurate sample temperatures
  • Optional lid and cooling jacket for high magnification lenses
