Explore the depth of your images by visualizing and interacting with them in three dimensions.
Image-Pro Plus 3D includes all of the features found in Image-Pro Plus with additional tools for three dimensional rendering and measurements. These 3D tools are also available in Image-Pro Analyzer 3D, an analysis-only version which combines Image-Pro Analyzer with 3D rendering and visualization.
- View volumes from any angle, with adjustable transparency and shading
- Zoom, rotate, and pan image stacks
- Use adjustable lighting controls for enhanced viewing
- Visualize clipping planes in orthogonal and oblique plane-selections
- View internal features of 3D stacks by selecting volume of interest (VOI)
- Display synchronized, orthogonal views through an image stack with Stack Slicer
- View multiple iso-surface renderings based on segmentation of selected intensities and colors
- Project a virtual shadow of your image to get a better visual understanding of your object’s 3D shape
Ask us if Image-Pro Plus 3D is right for your application!
Apply Measurements to 3D Images
Obtain quantifiable data from your three-dimensional image through manual and volume measurements.
3D Manual Measurements
- Individual point
- Point-to-Point distance
- Point-to-Surface distance line
- Point-to-Line distance
- Circumference of an object bisected by plane
- Surface distance between two points
3D Volume Measurements
- Surface Area
- Feret measurements
- Bounding box measurements
- Centroid information
- Automatic update of measurements from frame-to-frame playback of 4D sequences
- Set filter ranges for any measurements
- Clean borders
Industrial image created with Image-Pro Plus 3D Suite.
Images are courtesy of Ralph E. Napolitano of Ames Laboratory Solidification Science. Department of Materials Science and Engineering, Iowa State University
3D rendering of a kidney glomerulus
Image courtesy of Dr. Brian Matsumoto -Department of Molecular, Cellular and Developmental Biology University of California, Santa Barbara, CA

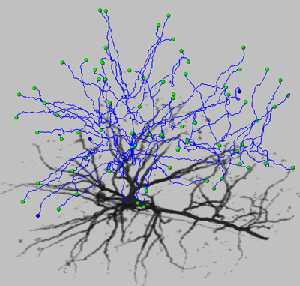

Dendritic spine tracing of 3D neuron. Image courtesy of Ling Wang and Brendan Brinkman, University of California, San Diego, CA, USA.
Track Objects in a 4D Sequence
Track and measure the movement of individual objects in a 4D sequence with the 4D tracking feature in 3D Constructor. Choose to automatically find 4D tracks in your image or manually track objects.
Visualize, Trace, and Count Neurons
Analyze neurons and other filament structures with the neuron tracing tool in 3D Constructor. Visualize and count the number of branches in a neuron as well as the length and volume of each branch.
Explore Wavelength Overlap with 3D Colocalization
Use Image-Pro’s colocalization tool to indicate which fluorescent regions are to be considered as overlapped, or colocalized. Then activate 3D Constructor to display the colocalized regions in three dimensions.
Create Animations of 3D Images
Share your 3D rendered images with others using 3D Constructor’s easy 3D animation creation tools. Create animations with changing transparencies, slide positions, colors, etc. to give others a better understanding of the depth of your 3D image. Save in AVI or multi-frame TIFF or SEQ formats.
Display and Export Image Data
Display and interact with measurement data from individual, histogram, or scatterplot displays. Export 3D measurement data to Microsoft® Excel.
Our image analysis training courses provide valuable information you can apply towards your imaging research. Whether you
are new to Image-Pro Plus 3D or you are an experienced imaging professional, our courses are designed to help you make optimum use of the latest imaging software techniques.
When you register your copy of Image-Pro Plus 3D, you are entitled to 90 days of support through our Technical Support Program. Receive installation and configuration troubleshooting from our Technical Support Engineers via phone or email. Extend your technical support beyond 90 days to receive expert support year-round.
Supported File Formats
- Read Support: TIFF, IPW, JPEG, JPEG 2000, EXIF JPEG, Flat (binary), GEL, TGA, BMP, PhotoCD, HDF, QED, FITS, AVI, and SEQ files.
- Stack & Confocal Read Support: SEQ (Image-Pro and StreamPix), STK (MetaMorph), PIC (Bio-Rad Confocal), LSM (Zeiss Confocal), DEB and AVZ (AutoQuant Stack), LEI and LIF (Leica), DM3 (Gatan), DV (DeltaVision), and Fluoview 1000 files.
- Write Support: TIFF, IPW, JPEG, JPEG 2000, Flat, TGA, BMP, EPS, AVI and SEQ files.
- Support for 24-, 36-, and 48-bit color; 8-, 12-, and 16-bit grayscale as well as 32-bit floating point images.
Windows XP (SP3) – 750 MGz or better – 1GB RAM – 20GB storage
Windows Vista Business and Ultimate (32 and 64 bit) (SP1) – 2.1 GHz – 2GB RAM – 40GB storage
